Etcr1000d Large Caliber Non-contact Phase Sequence Detection Ac0~600v, 40~70hz

US $128.00

Qingdao City, China
Jan 29th

Open on mobile:
QR code

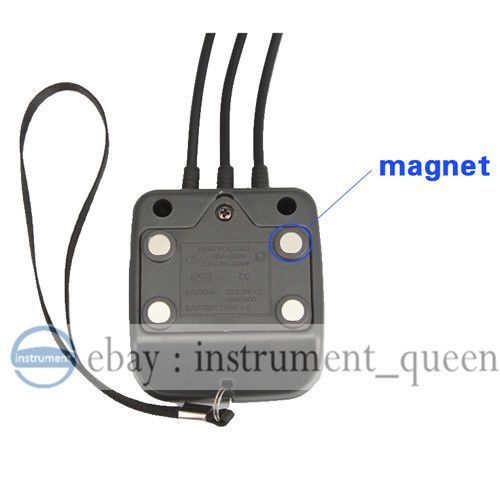

1. IntroductionSafe and Time Saving Traditional phase sequence measurement methods must poke the three-phase wire terminal, and connect the three bare alligator clips or test pins of phase sequence meters to the three bare firing lines, while ETCR1000D uses clamp non-contact measurement, without taking off the wire and no need to contact high-voltage bare fire-wire, the test can be made by directly clamping the three-phase insulating sheath by three super-sensitive high-insulated clamps. Conducting measurement on sheathed cable significantly improves the safety of field testing, effectively protect the operator’s personal safety and increase productivity! Convenient Operation Instrument base plate is provided with magnet, instrument can adsorbed on the metal shell when testing, the operation more convenient. Multi-Purpose In addition to phase sequence detection, it also has the functions of live wire examination, simple power detection, fire-wire identification, phase deficiency determination, break location detection, DC line break and line maintenance, equivalent to 3 induction electric pens. Dynamic Display LED dynamic display, intuitive and clear Sensitive and reliable More sensitive ETCR1000D clamp, can even sense the AC voltage signal as low as a few Volts, with a wider range of live electricity. Beautiful and scientific The three clamps of ETCR1000D are in three colors, Red, Yellow and Green; It is more in line with the distinction of three-phase line, and more scientific and artistic overall appearance. Ultra-low Power Consumption ETCR1000D has a better power-saving performance with the maximum rated power of 100mVA. 2.Technical SpecificationsFunctions Phase detection (normal phase, reverse phase and phase deficiency), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance. Power Supply DC3V AA Mn batteries (R6P) x2 PCS, Continuously working for 200 hours AC Voltage Range(V) AC0~600V, 40~70Hz (Sine Wave Continuous Input) Clamp Wire Size Diameter ?10-?40mm LED Display ?Positive Phase Sequence? The four phase-sequence lamps blink in order (clockwise). ?Negative Phase Sequence? The four phase-sequence lamps blink in order (counterclockwise). ?Line-voltage Indication?L1?L2?L3 lamp light up. ?Default Phase?L1/L2/L3 lamp is off. ?Open Circuit?L1/L2/L3 lamp is off. Power On Indication Power On indication light turns on Auto Power off After 5minutes, the meter automatically cut off power supply. Meter Dimension Width, height, thickness 70mm*75mm*30mm Clamp Lead Length 0.5m Meter Weight 180g (with battery) Working Temperature and Humidity -10°C~55°C; below 80%rh Storage Temperature and Humidity -20°C~60°C; below 90%rh Maximum Measured Voltage AC600V Dielectric Strength 5.4kVrms Maximum rated Power 100mVA Safety Provisions EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT III(600V), Transient over-voltage 6000V Accessories Meter: 1 Piece; Carrying case; 1 Piece. 3.Field application Notice: The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support! Shipping: We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can. Standard Shipping: To USA,UK and Australia Canada France by ePacket,need 7-15 working days. Other by China post or Singapore post ,need 15-35 working days. Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 5-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties. Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility. Warranty&Reture Policy: We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs. 30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements. On Dec-05-14 at 02:25:26 PST, seller added the following information:On Dec-05-14 at 03:01:10 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ETCR
Country/Region of Manufacture	China
Model	ETCR1000D
