Gecko G540 4 Nema23 Steppers 300 Oz/in Mach3

US $582.00

Simi Valley, California, United States
Jan 29th

Open on mobile:
QR code

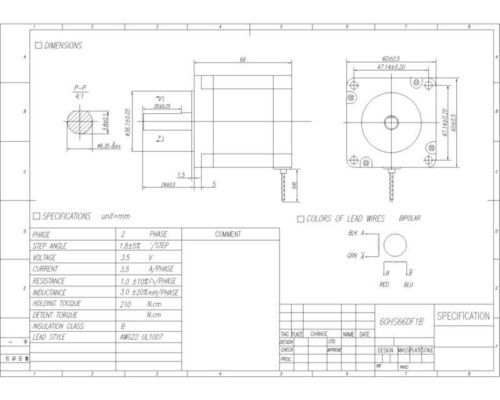

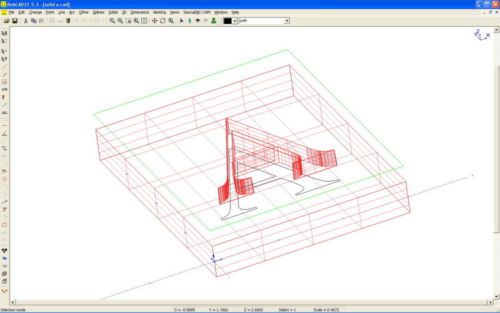

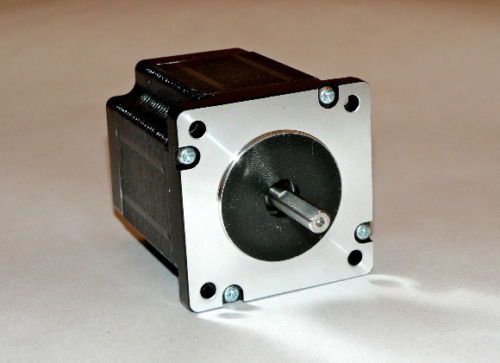

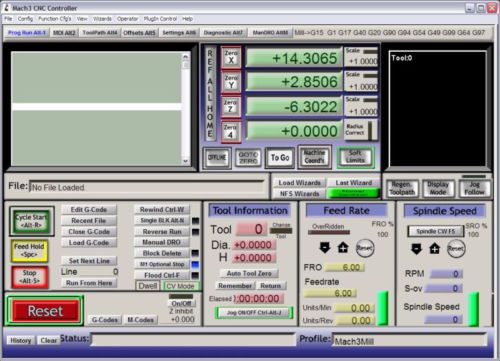

NOTE: MOTORS ARE CURRENTLY ON BACK ORDER!!! This auction also includes Mach3 Mill/Lathe softwares. Use this kit to set up a mill or lathe or both. Can also be used for Plasma and Router Tables. Mix and Match 300's and 620's motors. Ask us how. Ask us about adding a full license of Bobcad V25 or V26 on CD. (We are an authorized BobCAD reseller.) Ask us about adding the 10 Disc Training CD's. Over 200 Training Videos for Bobcad. Included: Mach 3 Software on CD. We are an authorized Mach3 dealer. Included: Gecko G540. Included: 4ea 300 oz/in motors (Single or Dual Shaft). Included: Latching Red E-Stop Switch. Included: 4 Homing buttons. Included: 4 Current Set Resistors. Included: 4 DB9 Connectors. Included: 4 DB9 Backshell Kits. All software is delivered electronically. This auction features a Gecko Motion G540 and four 300 oz/in Nema 23 Stepper motors. The specifications for all items are as follows: 300 oz/in motor with a nema 23 mounting flange. Single or Dual Shaft available subject to stock on hand. Extremely high power to weight ratio Superior linearity (better microstep accuracy) Low audible noise Less torque drop at upper speeds 4 wire configuration Our step motors feature an improved stator design wherein geometries are altered for greater torque output than other 2-phase step motors of comparable length. The exceptional static torque profile makes it possible to use shorter motors than before in a given application. Since shorter motors inherently produce better speed vs. torque characteristics due to lower resistance and inductance, the net result is an ability to push same loads at higher speeds or higher loads at same speeds. This makes these steppers good candidates for some applications currently beholden to servos. The new stator design also features improved linearity, the characterisitic most influential on microstepping accuracy. The better the motor's linearity, the lesser tendency there is for micorsteps to stretch and compress. The RS motors rightly deserve the classification, "Microstep Optimized". Additionally, the motors are surprisingly quiet in comparison to other stepper motors. Multiple items can be combined to save on shipping costs. Motor Specs: Step Angle: 1.8 +/- 5% / Step Voltage: 3.5 V Current: 3.5A/Phase Resistance: 1.2 +/- 10% Ohms/Phase Inductance: 3.0 +/- 20% mH/Phase Holding Torque: 210 N.cm or 300 oz/in. Insulation Class: B Lead Style: AWG22 UL1007 Flange Size: NEMA23 G540 Specifications: Four 10-Microstep motor drives 0 to 3.5A rated phase current 18VDC to 50VDC supply voltage Mid-band resonance compensation Auto standby current (70% current) Short-circuit protected Optoisolation on all LPT signal pins Two 1A at 0 to 50VDC rated outputs Four SPST to GND inputs (TTL) FAULT indicator LED,signal to PC POWER indicator LED I-SET resistor on motor connector TRIM adjust for motor smoothness Panel mount (5.7” by2.4” hole dim.) Anodized aluminum package No heatsink needed below 40C ambient Easy to service, removable drives Modular PCB design with no internal wires 10kHz watchdog timer (charge pump) Optoisolated analog output for a VFD drive Conservative ratings, premium components Comes with four backshells and four DB9 solder cup connector
