Geeetech New Mp3 Music Breakout Board Vs1053 With Sd Card Slot Work With Arduino

US $210

HongKong, Hong Kong
Jan 29th

Open on mobile:
QR code

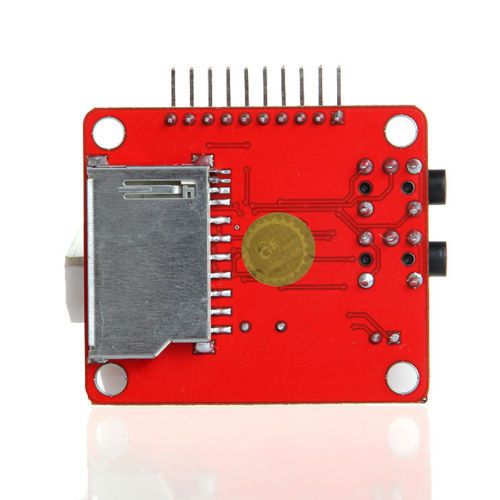

welcome to my store Description This tiny board is designed based on VS1053B from VLSI. VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats,including Ogg Vorbis/MP3/AAC/WMA/MIDI audio. For the best headphone listening experience, the VS1053 includes EarSpeaker spatial processing which accurately simulates how a room with stereo loudspeakers would sound. In addition to being able to decode all major formats, VS1053 is capable of recording in Ogg Vobis file. With the SD card slot on the other side of the board, you can play mp3 files from SD card using this breakout. It is easily to drop it in your project or make a mp3 player using your Arduino or other microcontroller. Features Can play a variety of music formats, support for OGG encoding real-time recording SPI interface, the control signal lines are led out A headphone and stereo output A microphone for recording A line_in input interface Power indicator 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current A single power supply: +5 VDC 12.288 Mhz crystal SD card slot Decodes formats Ogg Vorbis MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR) MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS) WMA4.0/4.1/7/8/9 all profiles (5-384 kbps) FLAC lossless audio with software plugin (upto 24 bits, 48 kHz) WAV (PCM + IMA ADPCM) General MIDI 1 / SP-MIDI format 0 Encodes formats from mic/line Ogg Vorbis with software plugin IMA ADPCM 16-bit PCM Usage Here is guide illustrate you how to connect VS1053 breakout to Arduino Uno and play mp3 stored in your SD card. After connecting your Arduino to the VS1053 breakout board, insert the SD card which stores your mp3 files with the filename like "track001.mp3", "track002.mp3" and etc into the SD card slot. Download the MP3Shield_Library_Demo and put them in the folder /Arduino1.0/libraries/, then open the Arduino IDE 1.0 and upload the examples MP3Shield-Library-Demo. Open the serial monitor with the baudrate 115200, input the number 'x' will play the corresponding mp3 file "track00x.mp3" in your SD card. Package list: 1 x VS1053 MP3 Module with SD card slot Payment 1.We accept PayPal only. 2.Payment must be received within 7 business days of auction closing.,or a unpaid case will be opened. Delivery details 1.Standard shipping carrier is ePacket with tracking code for United States address,delivery within 7-14 busienss days. 2.For outside US address,standard shipping carrier is Hong Kong Post without tracking code,delivery within 25-30 business days.We provide a free tracking for order above 45USD.Please contact us if you want to add a tracking code for small orders. 3.Express shipping like DHL,Fedex,UPS,TNT is also avaiable if you are willing to pay extra.DHL is our standard shipping carrier for Expedited shipping,please contact us if you want a different carrier. Terms of sales 1.Customs duties or taxes are buyer's resposibility for all of the listings.Please check with your local customs office if you have any doubts. 2.Please confirm you are putting a correct and complete shipping address here.You are resposible for extra charge if your package been returned because of wrong address.If packages return because of wrong address,you will have to bear extra cost of shipping. Contact us 1.We are always here for you,offering friendly, comprehensive customer service every step of the way. Please follow the good eBay practice to contact us if any doubts and problems.We sincerely hope our item and customer service can give you the BEST BUYING EXPERIENCE on eBay. 2.We believe nothing can solve problems but communication.Please contact our team via ebay message first before leaving any non-positive feedbacks if you feel unhappy here. Engineered for professional eBay sellers!
