General Radio Gr 1340 Pulse Generator

US $24.99

Grove City, Pennsylvania, United States
Jan 29th

Open on mobile:
QR code

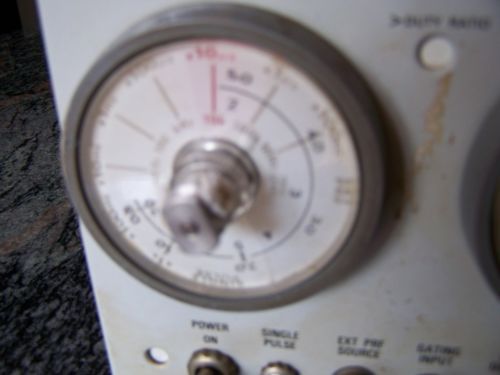

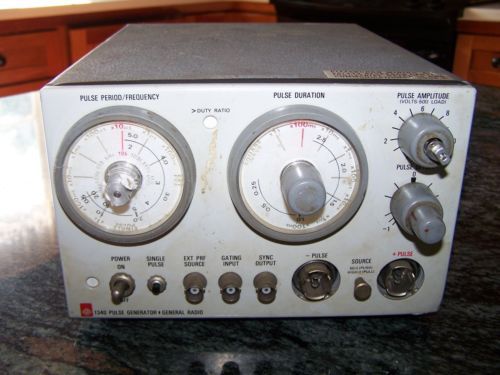

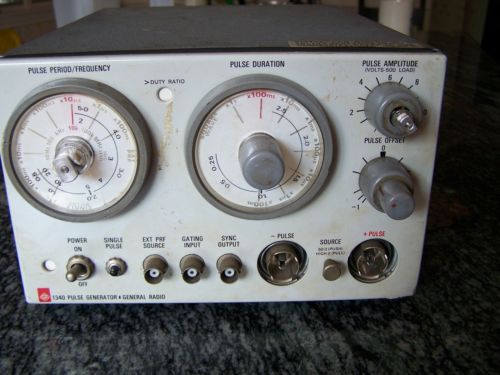

Pulse Period/ Frequency 1sec down to 100 ns .1 Hz to 1 Mhz Here is a Pre-Owned Pulse Generator General Radio 1340. It powers up, Power indicator lights, switches all operate. Most likely works properly but item is untested. Pulse amplitude knob Missing. The Pulse Period/Frequency knob is also missing. The controls still work properly. The GR 1340 Pulse Generator is a general-purpose pulse source that provides wide ranges of repetition frequency and duration, high output, and many performance and convenience features not usually found in a single pulse-generator. The instrument provides eight decade ranges of pulse periods/frequencies (50 ns to 5 s/20 MHz to 0.2 Hz) and eight decade ranges of pulse duration (25 ns to 2.5 s). Provisions are made for the application of external signals, if desired, to control the pulse repetition frequency (prf) ; to gate the output; and to modulate the amplitude, period, and duration of the pulses. Both positive and negative ground-based pulses of up to 10 V and offsets to + 1 V are produced simultaneously, and their amplitude and offsets can be independently set with front-panel controls. Also on the front panel are calibrated controls for adjusting pulse amplitude, pulse period/frequency, and pulse duration. Control is also provided for output impedance, single pulsing, input threshold for external prf sources, and for producing square waves. Many features of the GR 1340 have been incorporated to aid in the testing of integrated circuits. Its 20-MHz operation, adjustable offset, square-wave outout, and ability to operate at the standard 5-V logic level with a 50-ohm source impedance are especially valuable in integrated-circuit testing. The ability to linearly modulate the pulse amplitude, duration, and period makes the 1340 useful in automatic and semiautomatic measurements.. PULSE PERIOD (PRF) Internally Generated: 50 ns to 5 s (20 MHz to 0.2 Hz) in 8 decade ranges. Single-pulse push button on panel. Externally Controlled: 1 Hz to 20 MHz; triggers on any waveform of >3 V pk-pk. Input re- sistance approx 100 k ohm. Output pulse is started by negative-going transition. Period control acts as input trigger-level control in external mode. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

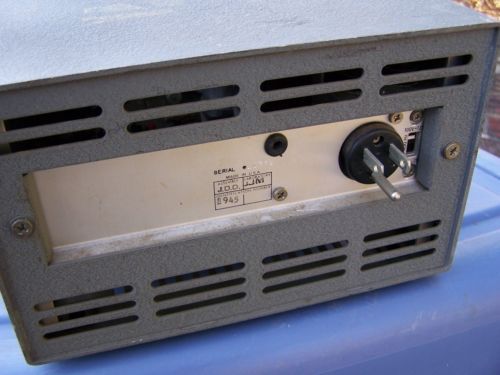

Seller Notes	“Pulse amplitude knob Missing as shown in Picture. The knob on the Pulse Period/frequency control is also missing. No AC Power cord included. Powers up with indicator light working but untested futher. Was working when taken out of service so probably works.”
