Gn Nettest Cma4000i Cma4436 Sm Long Haul Fiber Otdr W/ Pm Cma4000 40db

US $2,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

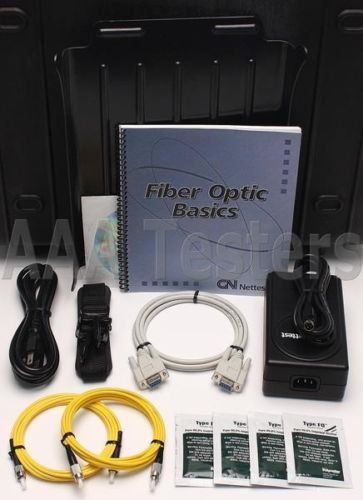

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: GN Nettest CMA4000i OTDR MainFrame (BC# 17237) GN NetTest CMA4436 SM Long Haul OTDR Module (BC# 17238) Power Meter: 850nm 1300nm 1310nm 1550nm FC Connector For Power Meter Source: 1310nm 1550nm FC Connector For Source GN NetTest Fiber Optic Basics Manual (2) SM FC-FC Fiber Cables Protective Screen Cover (4) Fiber Optic Wipes AC Adapter/Charger Power Cord RS232 PC Interface Cable User Manual On CD-ROM Strap For Unit Hard Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! GN Nettest CMA4000i OTDR Mainframe with CMA4436 Long Haul Singlemode 1310 / 1550nm OTDR Module With Power Meter Dynamic Range: 1310 / 1550 nm : 40 / 40 dB Includes Hard Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty The CMA 4000i Optical Test System provides the most complete test and measurement solution for the All-Optical Network. With its modular design, the instrument can be configured to meet the most demanding requirements for a variety of applications from fault location to testing Dense Wavelength Division Multiplexing (DWDM) systems. The CMA 4000i can be configured as an OTDR with a Visual Fault Locator, Optical Power Meter, and Light Source; or as a high resolution Optical Spectrum Analyzer (OSA) for DWDM systems. With its variety of functions, the CMA 4000i offers the best value for optical network commissioning, troubleshooting, restoration, and maintenance applications. Applications CMA 4000i is the all-in-one test system for qualifying optical networks: Commissioning Fault Location / Restoration Maintenance DWDM System Turn-up The Industry Leader in Optical Performance High performance networks demand even higher performance test and measurement equipment -- and there’s no better solution than Anritsu's award winning test and measurement solutions. The CMA 4000i continues the Anritsu tradition of worldwide leadership in optical test and measurement. With 50 dB of dynamic range and deadzones as small as 3.0 m, the CMA 4000i is ideal for testing long haul backbone networks, metro networks, or Passive Optical Networks (PONs). For complete system characterization, the CMA 4000i can easily be equipped with a light source and power meter for complete end-to-end loss testing. In addition, its Visual Fault Locator (VFL) option enables you to locate breaks within the OTDR’s deadzone or identify specific optical fibers within a cable. The 4000i offers a variety of operating modes for varying OTDR applications. DWDM System Qualification For commissioning or maintaining networks that employ DWDM technology, the model 4792 OSA module for the CMA 4000i is the ideal instrument. It allows testing both current and future DWDM networks. Operating from 1520-1620 nm (C- and L-bands), the model 4792 OSA module can automatically identify over 400 DWDM channels spaced less than 12.5 GHz apart -- perfect for testing high capacity DWDM systems. Characterizing complex DWDM systems is simple with the CMA 4000i. One-button operation ensures that even the novice user is capable of characterizing a complex DWDM system for channel center wavelength, power, and OSNR. Simply power on the unit with the OSA module installed to see one of the following views: Table View, Drift View, or Graph View. Features Highest Dynamic Range in the industry: 50 dB OTDR, Loss Test Set, and VFL in a single module Optical Spectrum Analyzer module with 10 GHz channel resolution One-button testing Operating Modes Fault Locate Mode With its one-button auto test option, the CMA 4000i brings ease of use to a new level. Simply attach the fiber to the instrument, press Fault Locate, and your entire fiber optic cable is completely characterized for attenuation, splice loss, and reflectance. For users needing more measurement flexibility, the CMA 4000i offers the following modes to bring OTDR testing to a higher level: Construction OTDR Mode Construction Mode simplifies and automates the tests and documentation most frequently performed during fiber installation. Construction Mode is designed for testing multiple fibers, and is ideal for cable installation and commissioning. It eliminates the time consuming setups common to the repetitive practices of testing, storing, analyzing, and documenting high fiber count cables. From the setup screen, the operator can quickly select one or all wavelengths to test, specify the file naming structure, and enter the fiber count for a given cable. Once set up, the OTDR acts as a “task master” to perform the following functions: Select the wavelengths Test the fiber at all selected wavelengths Analyze the trace data Store the trace and analysis data to either floppy or hard drive Alert the technician to move to the next fiber to be tested and increment the filename to the next sequential number Expert OTDR Mode Expert OTDR allows the user to perform traditional OTDR functions with dedicated hard keys tied to frequently used OTDR parameters such as pulse width, range/resolution, and wavelength. This mode provides unsurpassed user flexibility for optimization of OTDR parameters without stopping the test in progress. Key features of the Expert Mode include: Real-time Testing Splice Optimization Loss Mode Setup Dual Wavelength Testing Trace Compare Mode Trace Shift Capability Views Table View Table view is ideal for quickly characterizing a DWDM system’s essential features and performance. The number of channels, channel spacing, and relative power between channels is immediately visible. The table also shows each channel’s wavelength/frequency, power, optical signal-to-noise ratio (OSNR), delta wavelength, and delta power. Graph View Graph view displays full spectrum data and allows full manipulation of the waveform. Since this view displays the entire spectrum at all times, the user can zoom in while still maintaining a full spectrum view. In addition, it allows acquired and recalled data to be displayed together; this is especially useful for comparing spectra, analyzing channel power flatness, and viewing channel spacing. Drift View Drift view is used in conjunction with the drift acquisition mode and is ideal for evaluating long-term power and wavelength stability of DWDM channels. This view displays channel number, reference wavelength, reference channel width, current wavelength, current power, minimum/maximum detected wavelength, and detected power. It can also be used to compare the received channel frequencies to the ITU standard DWDM grid or to a user-defined template, making field procedures simpler than ever. Mainframe Specifications Display VGA LCD Display (21.3 cm (8.4 inch) color or 20.8 cm (8.2 inch) monochrome) Floppy Drive 3.5 inch/1.44 MB floppy disk (up to 180 OTDR traces for a standard disk) Keyboard Intergral alpha-numeric, external keyboard (optional) I/O Ports Standard: (2) RS-232 Serial, (1) Parallel, VGA, Mouse, and (1) PS/2 External Keyboard Port Internal Storage Up to 125 OTDR traces internal 2 Gigabytes minimum (Over 65,000 traces with hard drive option) Dimensions (H x W x D) 24.1 x 34.3 x 9.5 cm (9.5 x 13.5 x 3.75 inches) Weight 4.9 kg (11.0 lbs.) Includes mainframe, battery and module Power Supply Autoswitching 100-132 VAC, 47-63 Hz, 184-250 VAC, 47-63 Hz, 10-15 VDC Battery (2) Sealed lead acid battery pack Battery Life 6 hours typical, depending on operating mode Recharge Time 1.5 - 2 hours AC Power Temperature 0? C to 45? C (32? F to 122? F) AC Power Humidity 95% RH max., non-condensing AC Power Maximum Altitude 15,240 meters (50,000 feet) Battery Temperature 0? C to 40? C (32? F to 104? F) Battery Humidity 95% RH max., non-condensing Battery Maximum Altitude 15,240 meters (50,000 feet) Storage Temperature -25? C to 60? C (-13? F to 140? F) Storage Humidity 95% RH max., non-condensing Storage Maximum Altitude 15,240 meters (50,000 feet) CMA4436 Specifications Center Wavelength 1310 nm ± 20 nm 1550 nm ± 20 nm Fiber Type Singlemode 9/125µ Spectral Width (RMS) 1310 nm: = 10 nm 1550 nm: = 10 nm Dynamic Range1 (SNR = 1) 1310 nm: 40 dB 1550 nm: 40 dB Initial Reflective Deadzone 1310 nm: 3.5 meters (typical) 1550 nm: 3.5 meters (typical) Initial Non-Reflective Deadzone 1310 nm: 6 meters (typical) 1550 nm: 6 meters (typical) Pulsewidth 10 ns to 20µs (wavelength dependent) Distance Resolution 0.0001 km; 0.1 meters; 0.001 kft, 1 ft, 0.001 mi Distance Sampling 0.25, 0.5, 1, 2, 4, 8, 16 meters (range dependent) Distance Accuracy 0.0025% of distance measurement ± distance resolution ± index uncertainty Distance Range Setting 2/4/8/16/32/64/128/256 km Loss Resolution 0.001 dB Laser Safety Meets CDRH Class 1 Requirements (Eye Safe) 21 CFR Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Put your auctions on autopilot with Kyozou eBay Auction Tools

Condition:

Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...

Model

CMA4000i
