Grizzly G0441 - 3 Hp Cyclone Dust Collector

US $8700

Elk Grove Village, Illinois, United States
Jun 9th

Open on mobile:
QR code

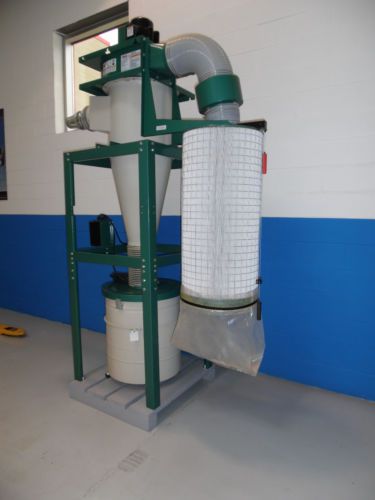

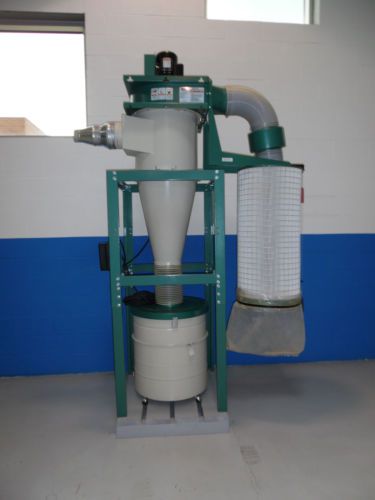

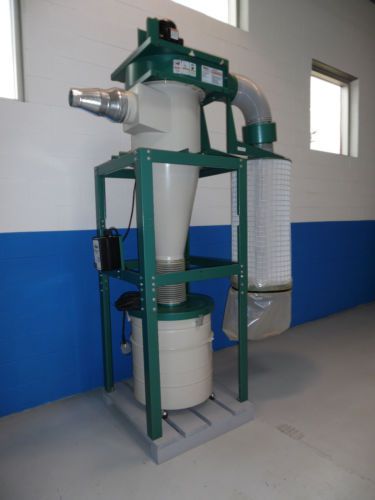

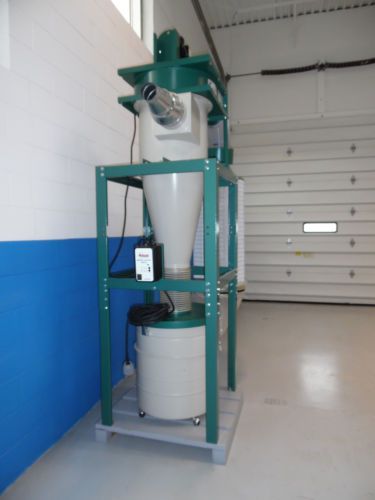

This unit was used for demonstration has less than 10 hours use, very clean Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55-gallon steel drum. The fine dust travels past the 15-1/2" diameter impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 to 2 microns in size. The cartridge filter is pleated to provide 113 square feet of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11 gauge steel blower housing, 14 gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class "F" motor and a magnetic switch with remote control device. The optional steel legs and support frame (H7509) also make setup quick and easy. CSA certified meeting CAN/CSA C22.2 #243-10 and ANSI/UL 1017-8 standards! SPECIFICATIONS: Motor: TEFC Class "F", 3 HP, 220V, single-phase, 22A Switch: Remote controlled magnetic Intake hole size: 8" Bag material: Plastic Impeller size: 15-1/2" steel, riveted Air suction capacity: 1654 CFM @ 2.0" SP Maximum static pressure (inches of water): 14.2" Filter: 99.9% efficiency captures 0.2-2 micron dust particles Filter surface area: 113 sq. ft. Collection Drum: 55 gallons, steel Overall dimensions: 60-1/4" W x 38-1/2" D x 109" H (93-5/16"H w/35-gal. drum) Base construction: Pre-formed steel Approximate shipping weight: 400 lbs.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Grizzly
Model	G0441
