Gt2560 Controller Board For 3d Printer Powerful Than Mega2560+ultimaker Prusa

US $480

Hong Kong, China
Mar 28th

Open on mobile:
QR code

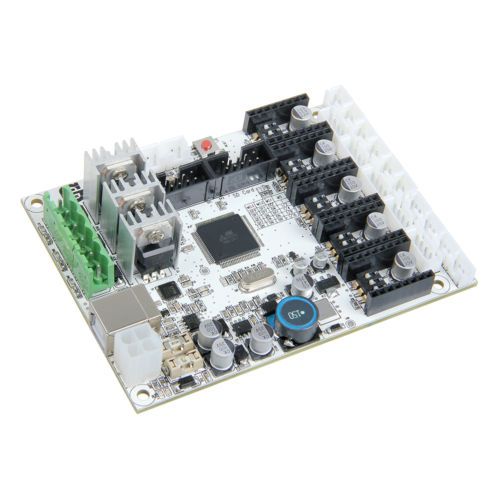

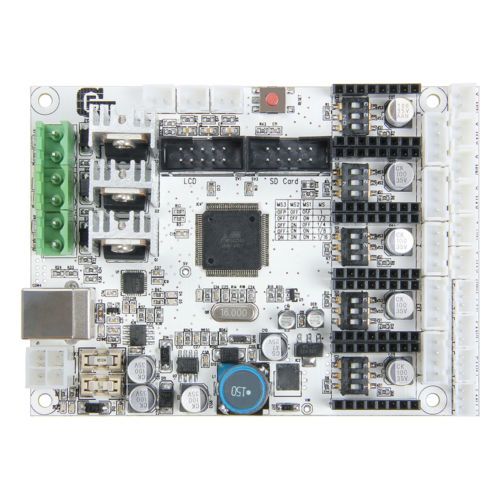

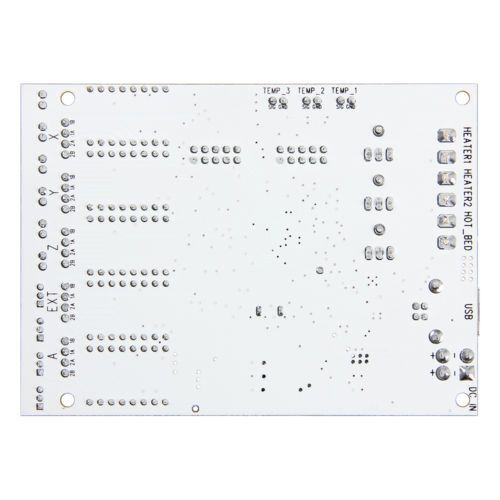

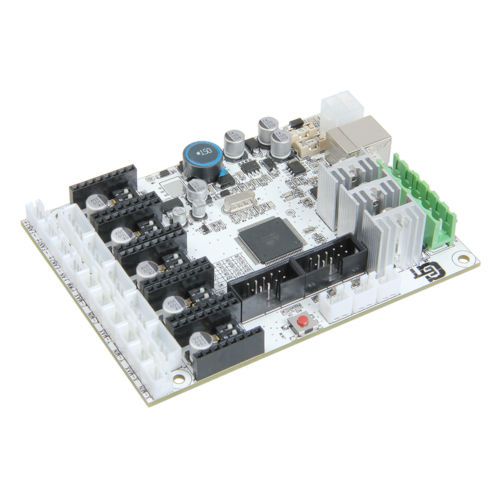

Welcome to visit our store. Have a nice buying experience. Description GT2560 is a compact board that is integrated with the mighty function of the Arduino Mega2560+Ultimaker. The GT2560 can not only take full place the Arduino Mega2560+Ultimaker on respect of both software and hardware, but has more premium features: the streamlined interfaces effectively avoid the unnecessary troubles, well-regulated compaction of components highly integrated saves more space and easier to be mounted on most applications. 5 stepper motors, swappable driving modules, mighty ATmega2560 processor with 256k memory, 16MHz operating frequency, high-performance USB serial converter FT232RQ, all these make the GT2560 an ideal option for a 3D printer control board. What’s more, GT2560 can run over 12V and output 90W to a MOSFET, which gives higher torque and higher rotation rate. Features: 1.Integrated with the mighty function of the Arduino Mega2560+Ultimaker, The GT2560 can not only take full place the Arduino Mega2560+Ultimaker on respect of both software and hardware, but also features compact size, more convenient connection, and more stable. 2. Adopt ATmega2560 as the main control chip, coupled with the high-performance USB serial converter FT232RQ. 3. The power pack: operating voltage is 12V-24V; double power supply design feeds for heatbed and logical part separately. The current is 12A for heatbed and 5A for other parts. The cooling fan can support 12V 4. The main circuit adopts SMD fuse tube, the diode added to the power port can provide reverse protection to the whole circuit, in addition, the 5V USB is USB port protected with 500mA Recoverable fuse. 5. 3 12v fan output and one PWM output for LED or other lighting equipment. 6. 3 55Amp MOSFET (with LED indicator, the actual output is restricted by the PCB board and the connector), all 3 MOSFET are equipped with heat sink to ensure sufficient heat dissipation and stable operation. 7. Support 5 A4988 stepper drivers (3 for X/Y/Z axis, and 2 for extruders); the subdivision of stepper motor can be setup by dial switch, eliminating jumper caps, easier to operate. 8. 3 temperature sensor input (100k thermistor is recommended) 9. Extended LCD and SD card interface support both LCD2004 and LCD 12864, with which you can print without your PC. 10. The firmware is the prevalent Marlin, which is known for stability, usability, and high-performance. 1.1 Overview and Hardware Resources Hardware resources 12V 12A and 12V 5A power supply 1 power port for heatbed and 2 for extruder 5 stepper motor input, (3 for X/Y/Z axis, and 2 for extruders) Extended LCD & SD card interface 6 endstop input(X-MIN ,Y-MIN ,Z-MIN and X-MAX ,Y-MAX ,Z-MAX) 3 input for thermistor (TEMP1, TEMP2 and TEMP3) 3 input for12V cooling fan 1 PWM output Dimension: 107.3mm*78.7mm*22mm 1.2 Software Resources Compiling environment: Arduino IDE Firmware: Marlin Host software:printrun Repetier-Host 2. Interfaces 2.1 Interface Layout 2.2 Interface specifications 1.DC IN: 12V 12A and 12V 5A 2.HOT_BED:heat bed 3.HEATER1: power supply for extruder 1 4.HEATER2: power supply for extruder 2 5.LCD ENCODER: LCD panel 6.SD Card 7. X_MIN/X_MAX/Y_MIN /Y_MAX /Z_MIN /Z_MAX: 6 end stop input 8. TEMP1: temperature sensor for extruder 1 9. TEMP2: temperature sensor for extruder 2 10. TEMP3: temperature sensor for heatbed 9. X,Y,Z:Stepper motors for X, Y, Z axis 10. EXT1, EXT2(A):Stepper motors for extruder 1 and extruder 2 10. FAN1,FAN2,FAN3:3 12V cooling fans 11.1 PWM: PWM output for cooling fan Package List: 1 pcs GT2560 board Payment 1.We accept PayPal only. 2.Payment must be received within 7 business days of auction closing.,or a unpaid case will be opened. Delivery details 1.Standard shipping carrier is ePacket with tracking code for United States address,delivery within 7-14 busienss days. 2.For outside US address,standard shipping carrier is Hong Kong Post without tracking code,delivery within 25-30 business days. We provide a free tracking for order above 45USD. Please contact us if you want to add a tracking code for small orders. 3.Express shipping like DHL,Fedex,UPS,TNT is also avaiable if you are willing to pay extra. DHL is our standard shipping carrier for Expedited shipping,please contact us if you want a different carrier. 4.For orders overweight (above 2kg), we must use Express shipping, it normally takes 5-7 busienss days to deliver. We will contact you if your orders are overweight, please note that buyer are resposible for the shipping charge. Terms of sales 1.Customs duties or taxes are buyer's resposibility for all of the listings.Please check with your local customs office if you have any doubts. 2.Please confirm you are putting a correct and complete shipping address here.You are resposible for extra charge if your package been returned because of wrong address.If packages return because of wrong address,you will have to bear extra cost of shipping. Contact us 1.We are always here for you,offering friendly, comprehensive customer service every step of the way. Please follow the good eBay practice to contact us if any doubts and problems.We sincerely hope our item and customer service can give you the BEST BUYING EXPERIENCE on eBay. 2.We greatly appreciate your POSITIVE feedback. Please do NOT leave negative or neutral feedback without any contact. Engineered for professional eBay sellers!
