Hantek Dso-3064 Automotive Kit V 60 Mhz 4 Ch 200 Msa/s & Fft Usb Scope

US $539.27

Berthoud, Colorado, United States
Jan 29th

Open on mobile:
QR code

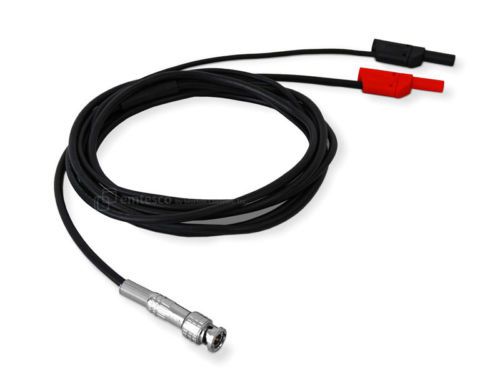

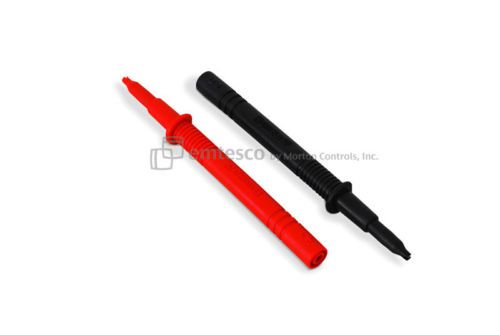

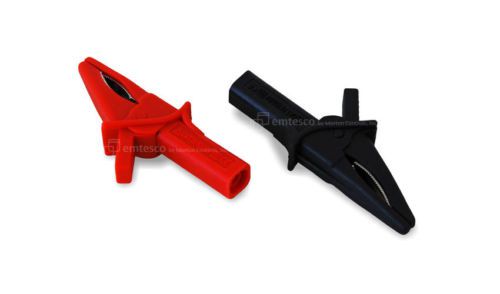

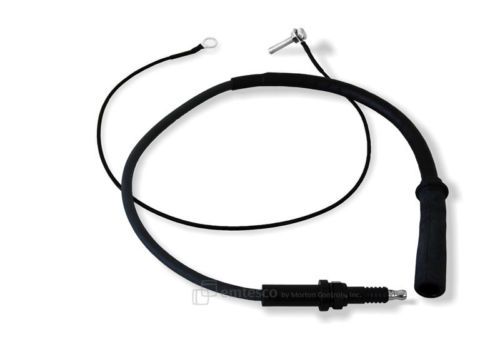

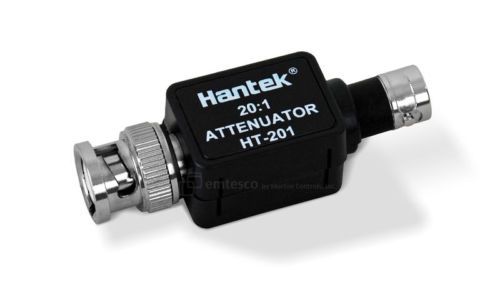

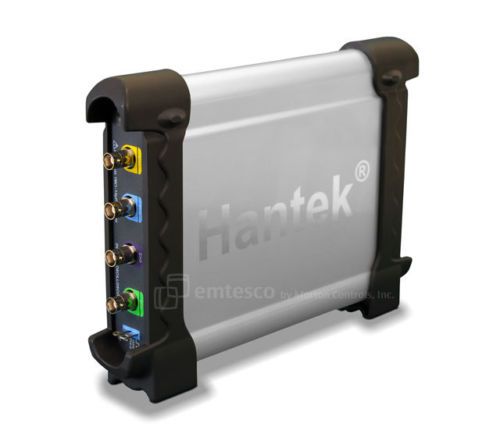

The Hantek DSO-3064 Kit V is a 60 MHz 4 channel Oscilloscope that is geared for Automotive use. It works via your PC's USB port and has a real time sample rate of 200 MSa/S. This portable, lightweight oscilloscope works in conjunction with your Windows based computer to create a powerful 4 channel digital oscilloscope. It uses the PC's USB port to communicate the incoming data to the software that is included FREE with the 'scope. Your monitor becomes your oscilloscope display. The software lets you do all the things you need to do with an oscilloscope, such as adjusting the vertical voltage reference, and the horizontal time base. This unit is supplied with a software CD, 1 passive X1/X10 probe, 4 HT201 20-1 attenuators, 4 HT25 and 4 HT308 automotive style probes, a USB cable, a 120VAC power adapter, and a hard plastic carrying case. Our Hantek automotive diagnostics kit turns your laptop or desktop PC into an automotive diagnostic tool with the power to troubleshoot the array of sensors, actuators, injectors, distributors and electronic circuits found in automobiles from around the world. The kit is based around the robust new automotive/general purpose DSO3064 series oscilloscopes. These fast and reliable PC oscilloscopes connect to a USB port on your PC and can scan up to 200 million samples per second, making it possible to accurately capture and display the many complex automotive waveforms found in today's modern vehicles. This Hantek automotive "Kit V" can be used to measure and test virtually all of the electrical and electronic components and circuits in any vehicle. The included software has diagnostic reference waveforms for a host of automotive signals including: Ignition (primary and secondary) Distributor Pickup, both Hall Effect and Inductive Injectors and fuel pumps Cranking Exhaust Diagnostics Airflow and Vacuum Starter and charging circuits Batteries, alternators and starter motors Lambda And many other common automotive signals Features INCLUDES: Hard Plastic Carrying case 1 each x1 ~ x10 (selectable) Probe 4 each HT-201 20 to 1 Attenuator 4 each HT-25 Spark Plug Probe 4 each HT-30 Universal Test Leads 4 each HT-308 Coil on Plug extension lead 2 sets HT-19 Multimeter leads 2 sets HT-18A Large Aligator Clips 1 each HT-310 12 VDC adapter cable (automotive power adapter) USB cable 120 VAC power adapter Software and manual on free CD USB 2.0 interface Small and easy to carry, with included carrying case 200 MSa/S real time sampling (for single channel use) 50 GSa/S equivalent time sampling (ETS) 60MHz bandwidth Windows 98/ME/NT/2000/XP/Vista and Windows 7 compatiable 23 measurement functions, with PASS/FAIL check Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, XY plot FFT Demo Code available: LabVIEW, Visual Basic, Visual C++ Specifications Oscilloscope 4 Channels Impedance 1 M? / 25 pf Capacitance Coupling AC/DC/Gnd Vertical Resolution 8 Bit/channel Gain Range 10 mV ~ 5 V, 9 Steps DC accuracy ±3% Timebase Range 5 nS/div ~ 1000 sec/div (1-2-5 sequencies) Adjustable Vertical Scale Yes ... 10 mV/div ~ 5 V/div (x1 probe) Memory Depth 10K-16M/Ch X-Y capability Yes Autoset Yes Trigger Source CH1, CH2, CH3, CH4, External Trigger Mode Auto, Normal, and Single Trigger Slope +/- Adjustable Trigger Level Yes Trigger Type Edge, Pulse, Video, Alternative Shot Bandwidth DC ~ 60 MHz Maximum Sample Rate 200 MSa/second (1 channel) Waveform Display Port/Line, Waveform Average, Persistence, Intensity Vertical Mode CH1, CH2, CH3, CH4, Dual/Triple/Quad Cursor Measurement Horizontal, Vertical, Track, Auto Measure FFT Rectangular, Hanning, Hamming, Blackman Math FFT, Add, Sub, Mult, Div Bandwidth 60 MHz Interface USB 2.0 Power Source 8 - 36 VDC wide range DSO3064 Dimensions 255x190x45mm DSO3064 Weight 1 kg Rocky Mountain Sales and Service for The Peak of Performance!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Hantek
Channels	4
Model	DSO-3064 Kit V
Sample Rate	200MSa/s
Type	Digital
Country/Region of Manufacture	China
Bandwidth	60MHz
