Heathkit Signal Generator Model Sg-8 W/probe & Manual Working

US $3200

  • Pompano Beach, Florida, United States
  • Jan 29th
Open on mobile:
QR code

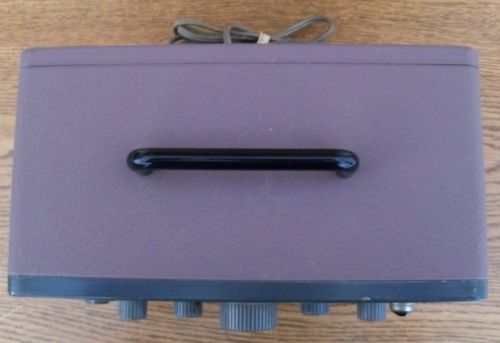

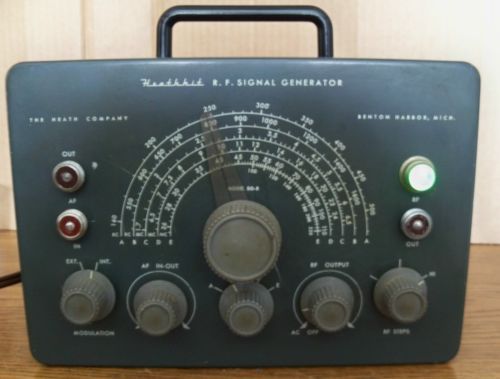

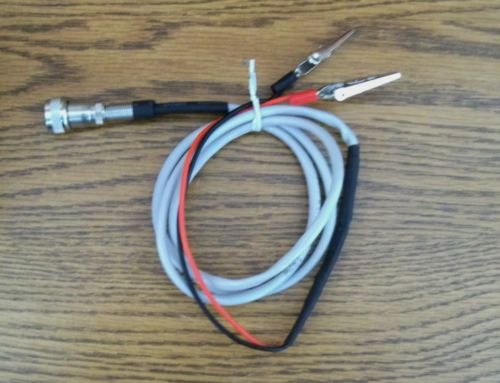

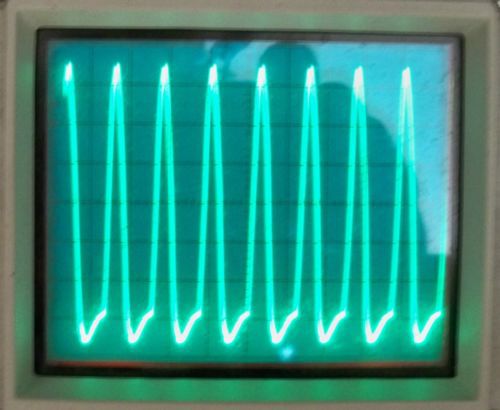

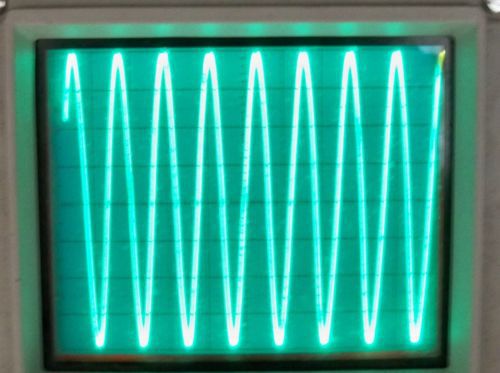

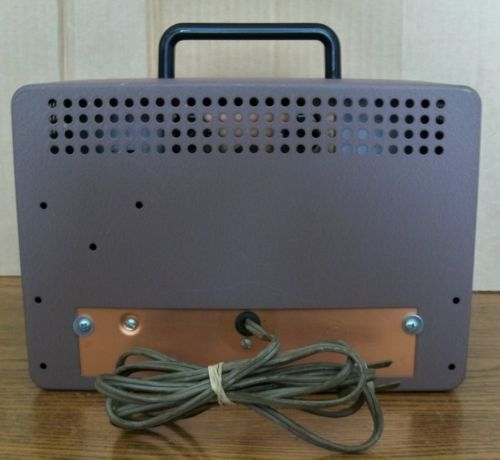

Up for bid is a used Heathkit Signal Generator Model SG-8. The unit looks to be complete and is in nice overall condition. Includes a working probe and a COPY of the Assembling and Using manual,  which includes a schematic and parts list.  I did get a output from the RF port and AF port (see photos).  The outputs did vary in amplitude and duration when the corresponding knobs were turned.  The unit has not been calibrated nor checked for accuracy. Due to the age of the unit it is being sold AS-IS. PLEASE NOTE - I SHIP USING FED EX OR U.S. POSTAL SERVICE. IF THE WINNING BIDDER HAS A SHIPPING PREFERENCE, PLEASE LET ME KNOW WHEN PAYMENT IS MADE.  Please email me with any questions. I SHIP IMMEDIATELY UPON RECEIPT OF PAYPAL PAYMENT AND I DO COMBINE SHIPPING WHEN MULTIPLE ITEMS ARE WON. PAYPAL ONLY AUCTION. NO OTHER FORMS OF PAYMENT WILL BE ACCEPTED.
