High Precise Led Digital Frequency Hz Indicator Meter 10-9999hz 0.56 ? 4 Digits

US $410

Shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

Product Description Electrical Properties: Erreichen Ђ170 EMS DHL TNT UPS FEDEX NEW Arrival! 100% BRAND NEW & HIGH QUALITY! Click here to the "Fixed Pirce" Introduction: Digital panel meter adopts the latest model of A/D conversion chip and high stable benchmark IC, use SMT components, circuit design is reasonable. Can be applied to measure voltage, current, also can connect an external sensor to measure temperature, pressure, displacement and other physical quantity. Appropriate for all kinds of digital instrument display. Products have good stability, high measurement precision, strong anti-interference capability. With a standard size, easy to install. Power supply Reverse connection protection! Function: Input Pulse Signal: NPN/PNP Open Collector, Contact Switch, Contactless Switch, Level Pulse Input Signal Voltage: Low Level: -30V-0.6V, High Level: 4-30V Measurement Range: 10-9999Hz, Auto-switch Maximum Input Frequency: 10 KHz Main Parameters: Accuracy: ±0.1%+1digit Display Mode: 0.56″Red LED 4 Digits Update Rate: >3 times/sec. Operating Power: DC 8-24V, 50mA External Dimension: 79*42*32mm Installation Dimension: 76*39mm Overrang Display: First digit display “1”or “-1”, the later three digit don't display Weight: 50g Note: 1. Connect the plug properly according to the wiring diagram 2. Should avoid strong electromagnetic interference, measurement wire had better use shielded wire or wires twisted pair 3. The switch or circuit of counting semaphore and reset signal input should be near the meter terminals, make the signal wire as far as possible short 4. Avoid interference of high voltage wire and power wire, use shielded wire if it is necessary, the shielding layer connect on the meter terminal “+”. 5. We do not recommend that use mechanical switch or micro switch, for their lifespan are short and will lead to miscount after a long using time; however, magnetically controlled switch is a good choice. Package Content: 1pcs frequency meter More Test Equipment CCPM SERVO Consistency Master Server Test ESC RC Helicopter 3 Channel 4.5-6V NEW 20pcs Insulated Shroud Stackable 4mm Banana Plugs Connectors Male Jack Red Black 2X Insulated Alligator Clip 2mm Banana Female Adapter Meter Test Probe Black Red 2X High Quality Universal Banana Plug Sharp Test Probe Pen Leads Multi Meter 20A New SMD Test Tweezer Clip Wire Lead Sleeved 4mm Banana Plug LCR meter Multimeter 13 Set BNC Male Q9 Plug to Dual Test Hook Probe Cable Leads for Oscilloscope 3FT New 5pcs Silicone High Voltage Banana to Banana Plugs Test Leads Cable 5 Colors 2X BNC Male Q9 to Dual Multi-Stacking Banana Plug Test Probe Cable Oscilloscope 30pcs 5 Colors SMD IC Logic Analyzer Mini Grabber Test Clip Hook Probe Jumper 1Set Dual Injection 4mm Banana to Banana Male Plug Test Probe Leads Cable 1M 15A Shipping Payment Returns Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	MPN	TOOL088-9K99HZ

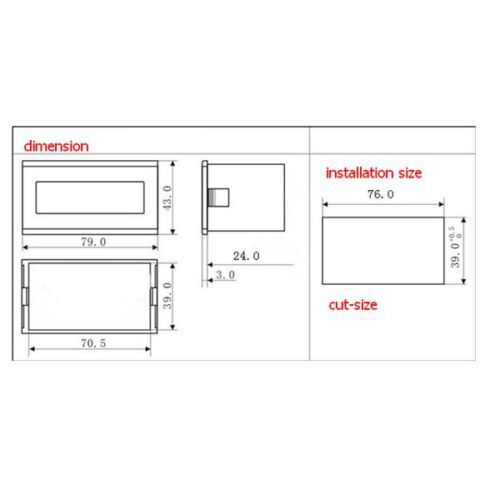

Installation Dimension	76*39mm
Update Rate	>3 times/sec.
Display Mode	0.56?Red LED
Operating Power	DC 8-24V, 50mA
Accuracy	±0.1%+1digit
External Dimension	794232mm
