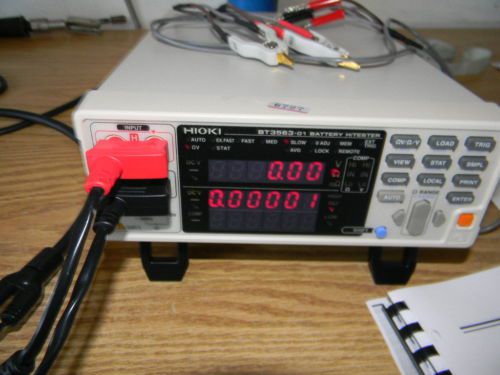

Hioki Battery Hitester Bt3563-01, W Gp-ib, L2100 Pin Leads 9287-10 Clip Leads

US $2,499.99

East Longmeadow, Massachusetts, United States
Jan 29th

Open on mobile:
QR code

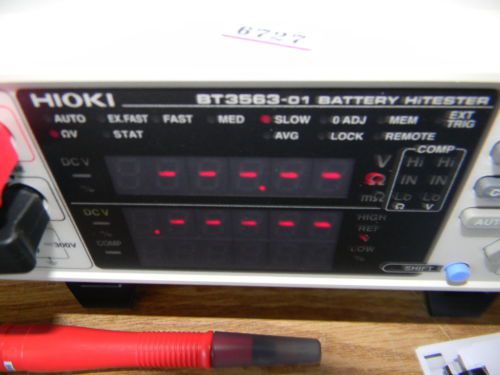

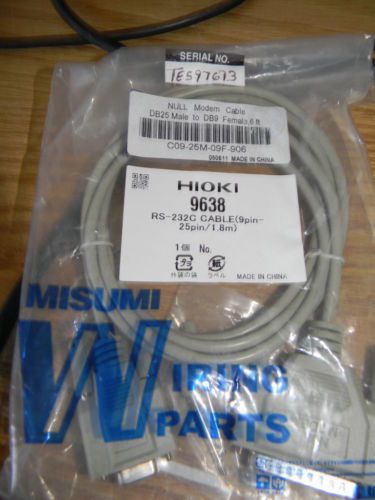

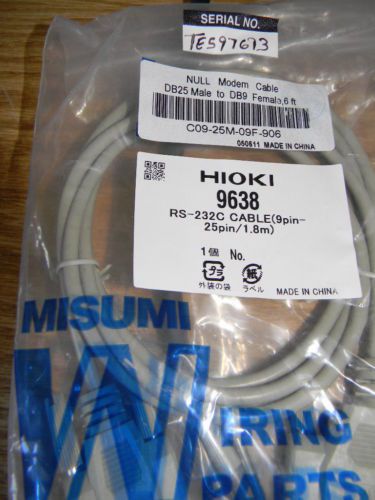

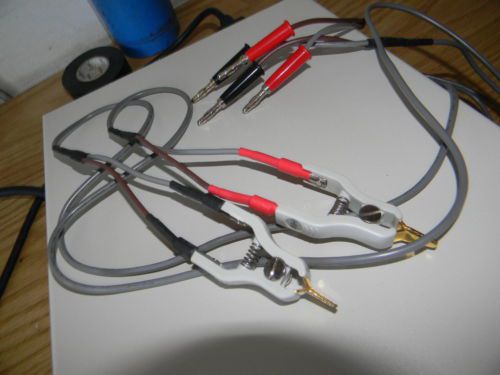

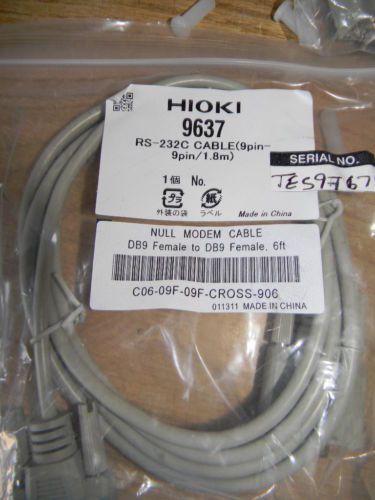

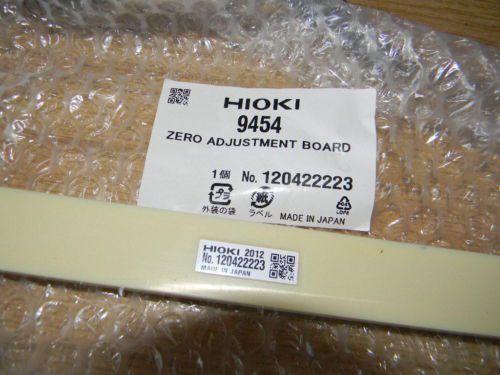

This is an listing for Hioki Battery Hitester BT3563-01, W GP-IB, L2100 Pin Type Leads, Zero Adjustment Board What you will get: Hioki Battery Hitester BT3563-01, W GP-IB ($3795 New) Hioki L2100 Pin Type Test Leads (A:300 mm (11.81 in), B:172 mm (6.77 in), L:1400 mm (4.59 ft), for high voltage battery measurements, 600 V DC max., BT3563, BT3562 only) ($395 New) Hioki 9287-10 Clip-Type Lead ($199 New) Hioki 9454 Zero Adjustment Board ($62 New) Hioki 9637 RS-232C Cable 9 Pin to 9 Pin 1.8 M Hioki 9638 RS-232C Cable 9 Pin to 25 Pin 1.8 M Power Cord Printout of the manual from the link below. Descrption: This is a Hioki Battery Hitester BT3563-01, W GP-IB, L2100 Pin Type Leads, Hioki 9287-10 Clip-Type Leads, Serial Cables, Zero Adjustment Board in excellent condition. Hioki benchtop battery testers support simultaneous high-speed measurement of internal resistance and battery voltage for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. The BT3563 series can measure the voltage and resistance of battery modules, high voltage battery packs, fuel cell stacks and other large batteries up to 300V. The Hioki BT3563-01: with GP-IB Option 3 m? to 3000 ?/300V DC Battery Resistance Testers for Production Line Testing of High Voltage Battery Packs and Modules Measure high-voltage battery packs up to 300V (BT3563) Production line testing of high-voltage battery packs and battery modules Large (low-resistance) cell testing Choice of PC interfaces for full remote operation Note: The comparison threshold values depend on the battery manufacturer, type, and capacity, and these must be established by the user. Battery HiTester with GP-IB and Analog Output The Hioki BT3563 300V Battery HiTester support simultaneous high-speed measurement of internal resistance (IR) and battery voltage (OCV) for the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries, and other battery packs for high voltage applications. Advanced Features Four-Terminal AC Method The four-terminal, 1-kHz AC method uses four contact probes to measure resistance independently of that of the measurement leads. Measurement Error Detection Detects test probe contact failure and broken leads, for 100% measurement reliability. Self-Calibrating Minor drift and gain fluctuations within the internal measurement circuitry are automatically corrected to maintain high accuracy. Averaging Function Stable readings can be consistently obtained by averaging two to 16 measurements. Features of Battery HiTester Series High Precision Resistance: ±0.5% rdg. ±5 digit Voltage: ±0.01% rdg. ±3 digit High Resolution Resistance: 0.1 µ? (3 m? range) Voltage: 10 µV (6 V range) Quick Response Resistance & Voltage Simultaneous measurements within 18 ms The 3 m? range (with 0.1 µ? resolution) is ideal for testing ever lower-resistance large cells The 6 V range (with 10 µV resolution and 0.01% accuracy) is ideal for the high-precision voltage measurements required for cell testing Provides high-speed measurement of high-voltage battery packs, for improving productivity High Speed Interfaces The fastest 10 ms measurement data can be transferred via the standard RS-232C interface at up to 38,400 bps. Models with the -01 suffix include a GP-IB interface. Handler Interface Triggering, measurement configuration loading, and zero adjustment can be externally controlled. Output signals provide comparator results, end-of-measurement events, and measurement errors. Specifications: Max. applied measurement voltage ± 300 VDC rated input voltage ± 300 VDC Max. rated voltage to earth Resistance measurement ranges 3 m? (Max. display 3.1000 m?, resolution 0.1 m?) to 3000 ? (Max. display 3100.0 ?, resolution 100 m?), 7 ranges Accuracy: 30 m? to 3000 ? ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) 3 m? range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM) Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 m? range) to 10 mA (3000 ? range) Open-circuit Voltage: 25 V peak (3/30 m? ranges), 7 V peak (300 m? range), 4 V peak (3 ? to 3000 ? ranges) Voltage measurement ranges 6 VDC (resolution 10 mV) to 300 VDC (resolution 1 mV), 3 ranges Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) Display 31000 full digits (resistance), 600000 full digits (voltage), LED Sampling rate Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.) Measurement time Response time + sampling rate, approx. 10 ms for measurements (Response time depends on reference values and the measurement object.) Comparator functions Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.) Analog output Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only) Interfaces External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only) Power supply 100 to 240 VAC, 50/60 Hz, 30 VA max. Dimensions and mass 215 mm (8.46 in) W x 80 mm (3.15 in) H x 295 mm (11.61 in) D, 2.4 kg (84.7 oz) Accessories Instruction manual x1, Power cord x1 Links and additional information: Manual on the Hioki Site Catalog Page on the Hioki Site Free shipping in the USA. If you receive your item and it is not to your 100 Percent Satisfaction, please contact us before leaving feedback. I strive to make sure every transaction is a positive one! I wanted to reach out and let you know that eBay is changing the way Sellers are rated. I am not overjoyed with what's happening, but I have to roll with it. IF you have a problem with my item, I would like you to use the "Contact Seller" link in the listing, or call me. Please don't open a case. Cases count against me even if they are resolved. I stand behind my items and will work out any problems that you may have with an item. So please contact me if you have a problem with an item I have sold you and don't use the eBay Case as a means of communication. International Buyers, Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up do not confuse them for additional shipping charges. We do not mark merchandise values below value or mark items as "gifts". US and International government regulations prohibit such behavior. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Hioki
MPN	BT3563-01
Model	Hioki Battery Hitester BT3563-01
Country/Region of Manufacture	Japan
