HP 3577A Network Analyzer 5Hz-200MHz, US $1,800.00 – Picture 0

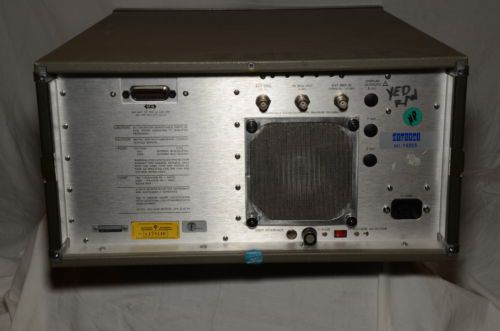

HP 3577A Network Analyzer 5Hz-200MHz, US $1,800.00 – Picture 1

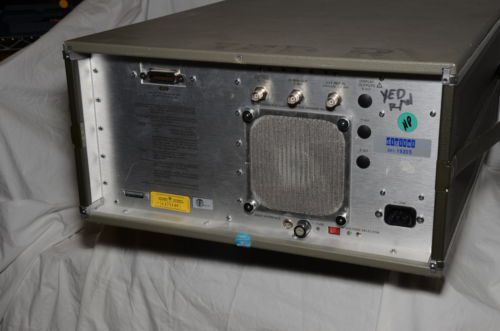

HP 3577A Network Analyzer 5Hz-200MHz, US $1,800.00 – Picture 2

Hp 3577a Network Analyzer 5hz-200mhz

US $1,800.00

Colorado Springs, Colorado, United States
Jun 9th

Open on mobile:
QR code

Hewlett Packard 3577A 5Hz - 200 MHz Network Analyzer Specifications SOURCE Frequency Range 5 Hz - 200 MHz Resolution 0.001 Hz Amplitude ± 5 X 10 -8 /day, 0 to 55°C Range +15 to -49 dBm (1.26 Vrms to 793m Vrms: 2dBV to -62 dBV) into a 50? load Resolution 0.1 dB Accuracy ± 1 dB at +15 dBm and 100 kHz. Below +15 dBm, add the greater of ± 0.02 dB/dB or 0.2 dB Flatness 1.5 dBp-p from 5 Hz to 200 MHz Impedance 50?; > 20 dB return loss at all levels RF Output Connector 50? Type N female Sweep Types Linear, alternate, cw and log frequency; log amplitude Sweep Time 100 ms/span to 200 ms/span for frequency sweep; 1 ms/step to 16 s/step for amplitude sweep Sweep Modes Continuous, single, manual Trigger Modes Free run, immediate, line, external RECEIVER Full Scale Input Level -13 dBV from 10 kHz to 200 MHz with internal 20 dB attenuators ON (0dBm at 50?) INPUT CHARACTERISTICS Frequency Range 5 Hz - 200 MHz Inputs 3 (A, B, R) Input Impedance Selectable 50? with > 25 dB return loss, or 1 M? in parallel with approximately 30 pF Input Connectors 50? Type N female Resolution Bandwidth Selectable 1 kHz, 100 Hz, 10 Hz, or 1 Hz Sensitivity (Due to noise and internal crosstalk between source and receiver inputs) Resolution Bandwidth 30 kHz - 200 MHz (50?) 30 kHz - 20 MHz (1 M?) Internal 20 dB Attenuator ON Internal 20 dB Attenuator OFF 1 Hz 10 Hz 100 Hz 1 kHz -110 dBm -110 dBm -105 dBm -95 dBm -130 dBm -130 dBm -125 dBm -115 dBm Crosstalk > 100 dB isolation between inputs Electrical Length/Reference Plane Extension Provides equivalent electrical line length, or delay at inputs A, B, and R. Range: -3 X 108 m to +3 X 108 m or +1 to -1 s Resolution 5 digits or 0.1 cm (3.3 Ps) whichever is greater Accuracy ± 0.1 cm or ± 0.02% whichever is greater MAGNITUDE CHARACTERISTICS Range Full Scale Input to Sensitivity Resolution Marker: 0.002 dB (log); 5 digits (linear) Display: 0.01 dB/div to 20 dB/div (log absolute); 0.01 dB/div to 200 dB/div (log ratio); 0.1 NV/div to 10 V/div (linear absolute); 10-10/div to 1020/div (linear ratio) Display Units dB, DBMS, div, V, and linear ratio Accuracy (at 100 kHz, 25°C, and Full Scale Input) Absolute (A, B, R) ± 0.2 dB Ratio (A/R, B/R, A/B) ± 0.15 dB (50?); ± 0.2 dB (1 M?) Dynamic Accuracy Error Input Level Relative to Full Scale Input Resolution Bandwidth 1 kHz, 100 Hz, 10 Hz 1 Hz ± .04 dB ± .02 dB ± .05 dB ± .15 dB ± .75 dB ± .75 dB ± .04 dB ± .02 dB ± .05 dB ± .25 dB ± .75 dB ± 3.00 dB 0 dB to -10 dB -10 dB to -50 dB -50 dB to -60 dB -60 dB to -80 dB -80 dB to -90 dB -90 dB to -100 dB Frequency Response (when driven from a 50? source and with a 50?receiver input impedance) Absolute (A, B, R) 0.3 dBpp from 20 Hz to 20 MHz; 0.6 dBpp from 5 Hz to 200 MHz Ratio (A/R, B/R, A/B) 0.3 dBpp from 20 Hz to 20 MHz; 0.4 dB from 5 Hz to 200 MHz Reference Level Range: -207 DBMS to +33 DBMS (-220 div to +20 div) (Log absolute); -400 dB to +400 dB (log ratio); 0 V to 10 V (linear absolute); 0 to 1020 (linear ratio) Stability Temperature: Typically <± 0.02 dB/°C Time: Typically <± 0.05 dB/hour at 25°C PHASE CHARACTERISTICS Range ± 180 degrees Resolution Marker: 0.005 deg (0.001 rad) Display: 0.01 deg/div to 200 deg/div (0.00018 rad/div to 3.49 rad/div) Accuracy (at 100 kHz, 25°C, and Full Scale Input) ± 2.0° Dynamic Accuracy Error Input Level Relative to Full Scale Input ± .4 deg ± .2 deg ± .5 deg ± 1.5 deg ± 7.5 deg 0 dB to -10 dB -10 dB to -50 dB -50 dB to -60 dB -60 dB to -80 dB -80 dB to -100 dB Reference Level Resolution 0.01° Temperature Stability Typically <± 0.05 deg/°C Time Stability Typically <± 0.05°/hour at 25°C POLAR DISPLAY CHARACTERISTICS Range, Resolution, Display Units, Dynamic Accuracy, Frequency Response, Uncertainty, Crosstalk, Reference Level, and Stability specifications are the same as the corresponding magnitude and phase characteristics. Full Scale Magnitude Range Absolute (A, B, R): 0.1 nV to 10 V Ratio (A/R, B/R, A/B): 10-10 to 1020 REAL, IMAGINARY DISPLAY CHARACTERISTICS Range, Dynamic Accuracy, Frequency Response, Uncertainty, Crosstalk, Stability specifications are the same as the corresponding magnitude and phase characteristics. DELAY CHARACTERISTICS Range 1 ps to 20,00s Resolution .01ns/div to 1000s/div Normalized Accuracy Dynamic Phase Accuracy +2nS 360 X Aperture [Hz] Aperture Range 0.5% to 16% of frequency span Reference Level ± 103 S GENERAL DISPLAY CHARACTERISTICS Traces No. Traces Two simultaneous traces may be present with a rectangular graticule. One trace with polar or Smith graticules. Markers: Each trace has one main marker and an offset marker. Markers indicate data at corresponding trace coordinates in the same units as used to set the Reference Level. Markers can be used to modify certain display parameters. Marker resolution is the same as horizontal display function. Graticules Rectangular Graticule 0% to 100% full scale deflection on 0.05% increments. Logarithmic and Linear. Polar/Smith Chart Graticule ± 500 deg in 0.001 deg increments Noise Averaging Type Exponentially weighted vector averaging on successive sweep data Averaging Factor Selectable 1 (off), 4, 8, 16, 32, 64, 128, 256 Linear Phase Slope Compensation Provides linear phase slope offset of -72,000 deg/span to +72,000 deg/span Calibration Transmission Both traces can be normalized to measured data with full accuracy and resolution. Reflection Corrects for directivity, frequency response and source match errors PROGRAMMING CHARACTERISTICS Capability Remote programming via the Hewlett-Packard Interface Bus (HP-IB). The HP 3677A/B S-Parameter Test Sets are programmable through the HP 3577A interface only. Interface Functions SH1, AH1, T5, TE0, L4, LE0, SR1, RL1, PP1, DC1, DT1, C0, E1 Output Data Transfer Time 401 data points (single parameter) can be transferred directly to an HP 200 series computer in Basic language as follows: ASCII mode: Typically 1500 ms Binary-floating point mode: Typically 160 ms Graphics Capabilities 12 lines of text with 40 alphanumeric characters per line, and high resolution line vectors can be displayed through HP-IB commands GENERAL CHARACTERISTICS External Reference Frequency Input Frequency 10 MHz/N. N is an integer from 1 to 100. Level 0 dBm ± 10 dB, nominal Impedance 50?, nominal Connector BNC female, rear panel Reference Frequency Output Frequency 10 MHz Level Typically 0 dBm Impedance 50?, nominal Connector BNC female, rear panel External Trigger Triggers on negative TTL transition or contact closure to ground Connector BNC female, rear panel Plotter Control Directly compatible with HP-IB graphics plotters that use Hewlett-Packard Graphics Language (HP-GL) with listen only capability: HP 7470A, HP 7475A, HP 7550A, HP 7090A. Save/Recall Front-panel setups can be stored in non-volatile memory locations 1 through 5. Last state is saved when power is removed. Operating Conditions Temperature 0 °C to +55 °C Relative Humidity <95% at 40 °C Altitude <4,572 m (15,000 ft) Non-Operating Conditions Temperature -40 °C to +75 °C Altitude <15,240 m (50,000 ft) Power 115V + 10%, -25% (47 Hz to 440 Hz), or 230 V + 10%, -15% Weight 31 kg (67 lb) net; 41 kg (90 lb) shipping Dimensions 222 mm H X 426 mm W X 578 mm D ( 8.75 in. X 16.75 in. X 22.75 in.)

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	HP
MPN	2593A12108
Model	3577A
