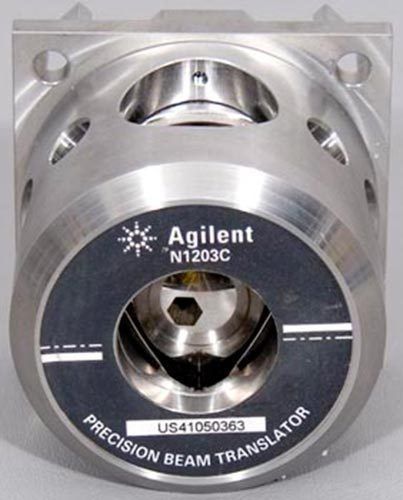

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 0

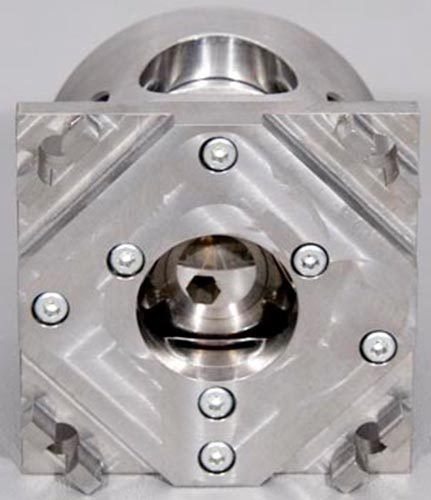

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 1

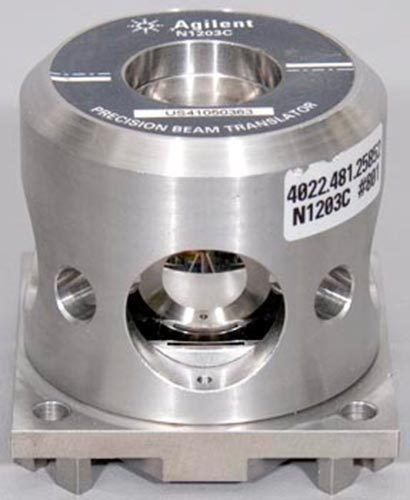

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 2

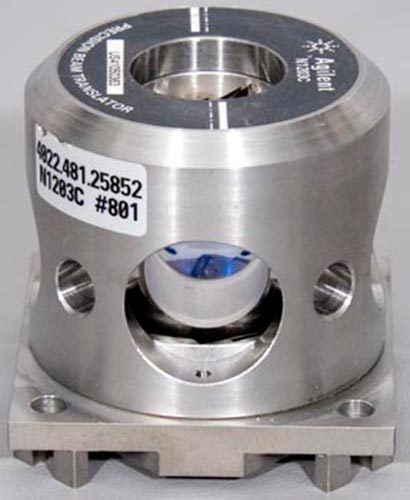

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 3

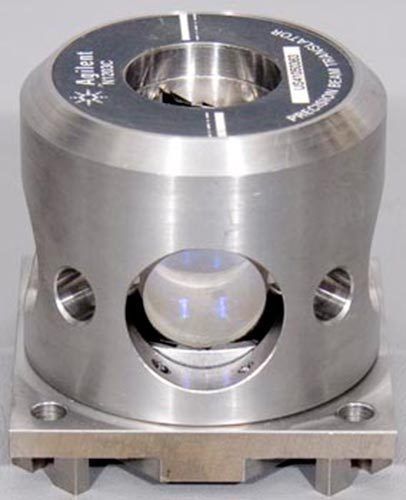

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 4

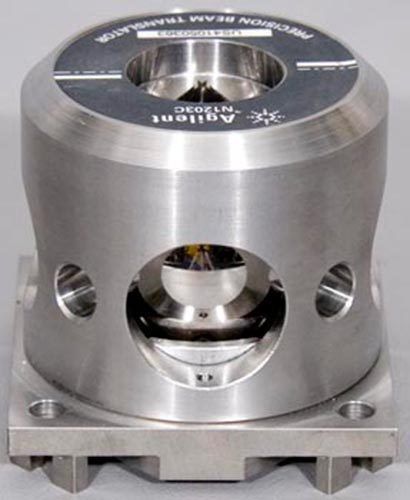

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 5

HP Agilent N1203C Optic Laser Precision Beam Translator ASML 4022.481.25852, US $1,165.99 – Picture 6

Hp Agilent N1203c Optic Laser Precision Beam Translator Asml 4022.481.25852

US $1,165.99

Phoenix, Arizona, United States
Jan 30th

Open on mobile:
QR code

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Hewlett Packard / Agilent N1203C Precision Beam Translator Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Agilent and may vary slightly due to upgrades, options, or revisions this unit may or may not have. These units are spare inventory from ASML (A lithography company). List Price is: $3,498.00 NEW from Agilent (with a 6-week delivery time) The Unit's Serial Number Tag Reads: Model Number: N1203C Serial Number: US41050363 ASML Part Number: 4022.481.25852 Link to the Datasheet: Agilent N1203C, N1204C, N1207C, N1206T Optical Accessory Datasheet Description: The N1203C Precision Beam Translator contains a refracting window at the center of a metal ball inside a precision optical mount. The translator precisely moves the outgoing beam parallel to the incoming beam without changing the angle. It is the component used primarly to reduce Abbé. Thermal Stability: The Agilent N1203C exhibits excellent thermal stability since all mounting components of the manipulator are of the samel material. The optic (refracting window or mirror) is placed at the center of a ball which is suspended symmetrically in a spring nest. The symmetry of this design enables the contact points between the ball and the springs to remaine precisely the same as the temperature changes. Hence, as the temperature changes, there is no rotation imparted to the ball. Mechanical Stability: The beam manipulator feet are designed not to slip due to differential thermal expansion between the stainless steel housing and an Invar mounting plate in the presence of an environmental temperature change of up to 20°C. Thus there will be no unrecoverable beam displacement due to foot slippage when mounting to many materials. Optical Input/Output Ports and Adjustment Access: The Agilent N1203C manipulators have six input and output (I/O) ports. There is only one mounting face. From this one mounting, either horizontal or vertical bends in any direction may be accomplished. Adjustment tools may be attached at any of ten access ports, allowing two of the I/O ports for entrance and exit of the laser beam. Specifications: Weight: 920 grams Materials Used: Martensitic stainless steel, Optical grade glass Optical Efficiency: 99% typical, 97.5% Worse case Input/Output Clear Aperture: Φ19.0 mm (Note: input beam-decentering may limit translation range. See range specification below.) Beam Translation Range: ±3 mm with Φ9 mm beam, ±4 mm with Φ6 mm beam, ±4.4 mm with Φ 3 mm beam. (From input at normal incidence on center of clear aperture) Transmitted Beam Deviation: ±10 microradian maximum Beam Translation Sensitivity/Resolution: 1.0 micrometer Thermal Drift: 100 nm per °C Resonant Frequencies: The natural response of the spring-mass system (350 Hz) is completed suppressed. The first FFT measured resonance in the assembly is at 3.5 kHz. Thus, there is no resonance which could disturb laser beam alignment or position in the operating environment. For More Pictures Please Click the Following: Picture 2 - Top View Picture 3 - Back View Picture 4 - Side View #1 Picture 5 - Side View #2 Picture 6 - Side View #3 Picture 7 - Side View #4 For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $15.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? For all international customers, the following terms and conditions shall apply: These commodities, technology, or software are to be exported from the United States in accordance with Export Administration Regulations. Diversion contrary to U.S. law is prohibited. Domestic customers must also agree to the following terms and conditions: For items shipped within the United States, MHz Electronics, Inc's performance shall occur entirely within the United States. Unless expressly agreed to by MHz Electronics, this shall not be a routed party transaction. If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 03/20/09 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“These units were spare inventory and are in like-new condition.”
