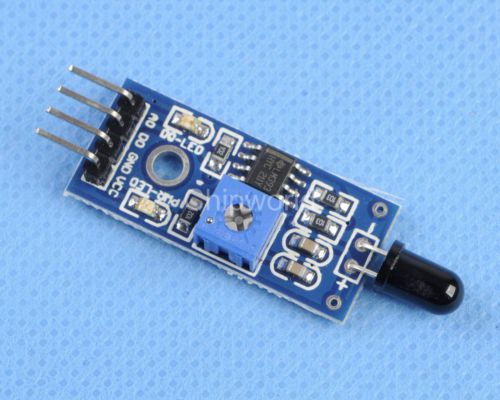

IR Infrared Flame Detection Sensor Module for Arduino Flame Sensor, US $1.72 – Picture 0

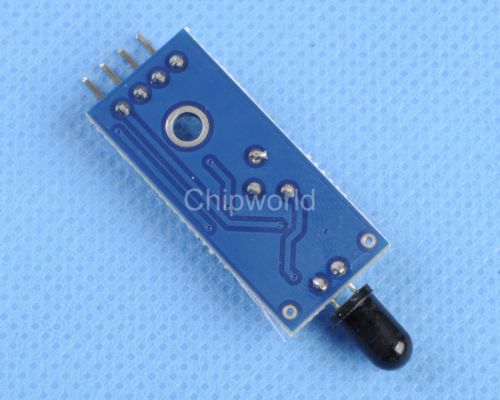

IR Infrared Flame Detection Sensor Module for Arduino Flame Sensor, US $1.72 – Picture 1

IR Infrared Flame Detection Sensor Module for Arduino Flame Sensor, US $1.72 – Picture 2

Ir Infrared Flame Detection Sensor Module For Arduino Flame Sensor

US $1.72

Shenzhen, China
Jan 29th

Open on mobile:
QR code

Recommendations For You HC-SR501 Human Sensor Module Pyroelectric Infrared 650nm 6mm 5V 5mW mini Laser Dot Diode Module Head WL Red TEC1-12706 Thermoelectric Cooler Peltier 60W DS18B20 Waterproof Digital Thermal Probe Sensor 1pcs Digital Humidity & Temperature Sensor DHT11 good SHT11 SHT15 DHT22 AM2302 Temperature Humidity Sensor Visit my eBay Store:ChipWorld Product Name: NEW IR Infrared Flame Detection Sensor Module More Items In Our Store,Click Here! SKU: 2578 Parsts No. : Package: Brand: Quantity: 1 Purpose: Various flame, fire detection Module Features: 1. can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test 2. the detection angle of 60 degrees, the flame spectrum particularly sensitive 3. sensitivity adjustable (shown in blue digital potentiometer adjustment) 4. the comparator output signal clean waveform is good, driving ability, than 15mA 5. with a precision potentiometer adjustable sensitivity adjustment 6. Operating Voltage 3.3V-5V 7. the output in the form: DO digital switching outputs (0 and 1) and AO analog voltage output 8. a fixed bolt holes for easy installation 9. small plates PCB size: 3.2cmx1.4cm 10. using a wide voltage LM393 comparator Module for use: 1. the flame flame sensor most sensitive to ordinary light is also a reaction, generally used as fire alarm and other purposes. 2. a small panel output interface can be directly connected with the microcontroller IO port 3. the sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature of the test flame lighters distance 80cm, the larger the flame, the greater the distance test 4. small plates analog output mode and the AD conversion process, you can get higher accuracy More choices!!! High Recommendations!!! 51 STC MCU PIC MCU ATMEI AVR MCU STM32 MCU C8051F MSP430 MCU Wholesale Tools Dupont Line Connector Kit Sensor DIY Arduino Diodes Switch Breadboard DIY PCB Board Power Modules LCD Modules Arduino Shield Motor Capacitor Servo Wireless Modules Plug Connector Digital Voltmeter Relay Modules Resistors & Potentiometers PIC Programming Male & Female Header For more quantity, please contact me.(My skype: ada-yu2013) The Standard shipping we provide is non-regiested mail without a tracking. We provide free shipping with tracking number when your order is over $50. If your oder is below $50 and you need tracking, please contact me. Maybe you request 2x Mega 2560 ATmega2560-16AU Board (Arduino-compatible)+Free USB Cable Funduino 4pcs Real Time Clock Module for arduino AVR PIC 51 ARM I2C RTC DS1307 AT24C32 3pcs IC2272/2262 4 channel wireless remote control kits 4 key wireless remot NEW 5pcs new Breadboard 830 Point Solderless PCB Bread Board MB-102 MB102 Test DIY 9PCS NEW TEC1-12706 Thermoelectric Cooler Peltier 12V 60W 92Wmax good $ 33.0 + free shipping $ 8.0 + free shipping $ 11.5 + free shipping $18.0 +free shipping $ 28.0 + free shipping Any problem, please contact us freely 1) We accept PayPal payment ONLY. inkFrog Analytics
