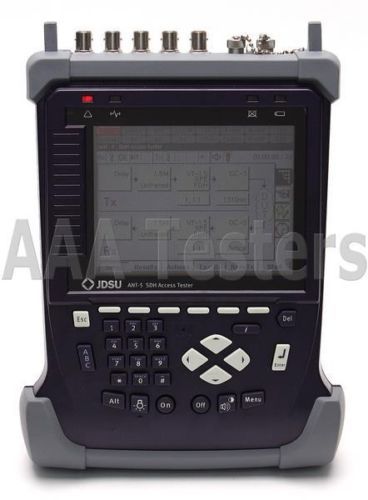

Jdsu Acterna Ant-5 Sdh Access Fiber Telecom Tester Au-3/vc11/sonet Vt Ant 5

US $3,995.00

Toledo, Ohio, United States
Jan 29th

Open on mobile:
QR code

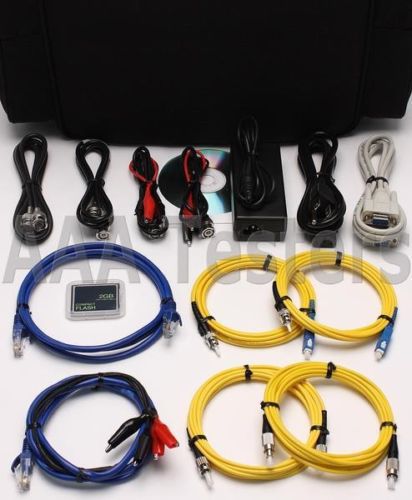

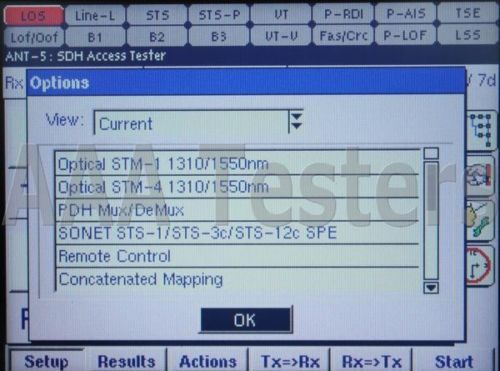

Content on this page requires a newer version of Adobe Flash Player. The Following Items Are Included: JDSU ANT-5 SDH Access Tester (BC# 15553) w/ Options: Optical STM-1 1310/1550nm Optical STM-4 1310/1550nm PDH Mux/DeMux SONET STS-1/STS-3c/STS-12c SPE Remote Control Concatenated Mapping Remote Operation AU-3/VC11/SONET VT Mappings ATM Mappings PLCP IMA Monitor ATM Ping ATM Enhanced (2) BNC To BNC Cables (2) BNC To Dual Clips Cables RJ45 To Multiple Clip Cable (2) SM FC-FC Fiber Cables (2) SM SC-FC Fiber Cables 2GB Flash Card AC Adapter/Charger Power Cord RS232 PC Interface Cable User Manual On CD-ROM Carrying Case (G) BE SURE TO CHECK OUR EBAY STORE FOR OTHER ITEMS! This Item Has A Current Calibration! JDSU Acterna ANT-5 SDH Access Telecom Tester Installed Options: - Optical STM-1 1310/1550nm - Optical STM-4 1310/1550nm - PDH Mux/DeMx - SONET STS-1/STS-3c/STS-12c SPE - Remote Control - Concatenated Mapping - Remote Operation - AU-3/VC11/SONET VT Mappings - ATM Mappings - PLCP - IMA Monitor - ATM Ping - ATM Enhanced The ANT-5 is the ideal device for field technicians who need to test a range of SDH, PDH, SONET, and ATM digital links both onsite and from a remote location. Includes Carrying Case & Accessories As Listed Above! Working Condition: Excellent Condition: Refurbished Calibrated: Yes Warranty: 90 Day Exchange Warranty The access network explosion The modern communicationsmarket is challenging network operators in new ways. Because growth from traditional voice services has declined, operatorsmust find new ways to carry more data traffic in order to maintain their revenue stream. However, bandwidth bottlenecks in the access and metro networks have prevented many new high-speed, high-bandwidth services from being efficiently deployed. Field technicians, who are tasked with installing and maintaining these networks, must learn how to test a wide variety of technologies while they strive to reach new levels of productivity. To perform these tasks, technicians require an increased number of pieces of equipment and additional training to operate each device effectively. Additionally, operatorsmust be able to manage the conflicting demands of technicians, who need the proper equipment and training to do their jobs, and executives, who are keeping close control on capital expenses and operating costs. The ANT-5 rises to the challenge Acterna effectively meets the challenges faced by network operators with the Acterna ANT-5 SDH Access Tester. Designed for field operations, the small, rugged, battery-operated ANT-5 streamlines installation and maintenance testing. Its advanced features and automated functions enable technicians to perform tests quickly and effectively. And, with SDH, PDH, SONET, and ATM combined into a single compact unit, capital investment and training expenses are reduced, minimizing business costs. Highlights Smallest and lightest test solution (only 2 2 kg) for interfaces from 1.544 Mbps up to 2.5 Gbps Optical testing at dualwavelengths from STM-1/OC-3 up to STM-16/ OC-48 Electrical testing at DS1, E1, E3, DS3, E4, STM-0, and STM-1/OC-3 Full analysis of concatenated mappingswith SDH/SONET signals In-depth PDH analysiswith Sa bit generation and flexible mux/demux test configuration Optical power measurements for verification of physical layer integrity ATM functionality for service verification of ATM, 3G, and UMTS networks (provided via T-carrier, PDH, SDH, or SONET) In-line Monitor and Instrusive Thru Modes for traffic analysis and network testing ECL/NRZ port enables non-intrusive direct monitoring of optical networks The portable solution The ANT-5’s compact, robust design is ideal for field and central office applications. The convenient, built-in stand and comfortable carry strap enable hands-free testing in any location. And, its extended battery life allows for testing even when AC power is not on hand. Optional carrying cases protect the ANT-5 when technicians travel between sites and provide a safe and convenient place for storing cables and accessories. Simplest handheld to learn and use Access technicians need a tester that can simplify their key taskswithout extensive training. With its large color screen, graphical user interface (GUI), and ergonomic keypad, the ANT-5 is the simplest handheld to learn and use on the market today. Other features include: Labelled LEDs that show current and historical alarm OKresults summary and pass/fail results screen displays Auto-save of test results Fast store and recall of key network configurations Auto-configuration detects actual signal structure Automatic testing Easiest to use Technicians prefer instruments that are the easiest to use, so that they can concentrate their efforts on measurement tasks rather than on the complex operation of the instrument itself. The ANT-5 is the most complete instrument, with all of the necessary interfaces already built-in, including T1 Bantam, E1 balanced, and E1 unbalanced up to optical interfaces with STM-16/OC-48. It covers T-carrier, PDH, SDH, and SONET technology, all in one instrument. The ANT-5’sworld-class ease-of-use is based on a clearly structured operation concept: SETUP – RESULTS– ACTIONS. The ANT-5 offers three operation modes to cover all necessary field applications, including intrusive, nonintrusive, and monitoring modes. An important feature is the ECL/NRZ port for monitoring optical circuits at electrical monitor points provided by network elements (STM-1/-4/-16). The navigation key allows for simple operation, and the keyboard supports the easy input of comments, file names, etc. The internal memory can hold hundreds of files. For result analysis and report generation, the ANT-5 allows for the easy transfer of files to the instrument’s Compact Flash Memory Card (CF card). In addition, the Mircrosoft® Windows®-based Off-line Viewer provides simple results analysis. For report generation, the Off-line Viewer print functions can be used, supporting any of your desktop printers in your Windows environment. Application selection The ANT-5 application menu opens direct access to the following applications: Performance Analysis (according to ITU-T, ANSI) Repetitive BERT (radio linkapplication) Automatic Protection Switching (APS) Service Disruption Measurements OH Capture Round Trip DelayMeasurements (RTD) The corresponding results are directly accessible in the results page structure. The access technicians’ tool of choice The ANT-5 provides all of the transmission test functions required in today’s access networks: Optical power measurement Bit error rate testing G.821, G.826, G.828, G.829, ANSI, M.2100, and M.2101 analysis Received signal offsetmeasurement Transmit signal offset and generation Tabular and graphical event recording Extensive SDH/SONET features The ANT-5 is loaded with SDH and SONET test features covering all installation and maintenance tasks up to 2.5 Gbps: STM-0e, STM-1e/STS-3 interface STM-1/OC-3 to STM-16/OC-48 optical ports at dualwavelengths (1310/1550 nm) Auto-configuration Anomaly generation and analysis Defect generation and analysis SOH/POH generation and analysis (HEX or clear text format) Pointer generation and analysis Path trace generation and analysis Tandem connection monitoring (TCM) generation and analysis APS/service disruption measurements RTD measurements Automatic tributary scanning K-byte capture Full PDH support From 1.5 Mbps to 140 Mbps, including nx64 Kbps, the ANT-5 can test all PDH tributaries and legacy PDH hierarchy transmission systems using high-level functions that include E1 Sa bit generation and display. T-carrier support The ANT-5 is also equipped with a standard T1 Bantam interface and supportsDS1 and DS3 interfaces and structures. In addition, the multiplexer/demultiplexer (mux/demux) option now supports M13 framing (DS1/DS3) and allows for 64 K channel analysis. ATM service verification UMTSnetwork rollout and ADSL growth is increasing the use of ATM in the access network. The ANT-5 enables the installation and maintenance of ATM carried over PDH, SDH, and SONET networks that include: DS1, STS-1 SPE, DS3 E1, E3 (G.832), E4 VC-4/STS-3cSPE VC-4-4c/STS-12cSPE PVC cells can be generated over UNI and NNI with CBR and VBR traffic load profiles up to STM-4c rates. Service quality can be checked using BER or O.191 measurements. Linkand channel performance can be monitored while traffic statistics are recorded. Channel Explorer scans automatically for active VCI/VPI and displays the result in tabular form. Simple test and results management Due to its built-in Ethernet port, CF card port, and printer port, the ANT-5 can integrate more effectively and simply with day-to-day operations. Export standard test setups to other ANT-5s or PCs via the CF card Exchange results over LANs using Windows-based PCs Print test reports directly via the serial interface or from a PC using the Off-line Viewer software Result evaluation (Off-line Viewer) Results (in ANT-5 format) can be loaded, analyzed, and printed by any Windows-based PC using the ANT-5 Off-line Viewer software. Off-line Viewer enables the generation of specific setupswith easy downloading to the instrument. The user interface can be displayed in the following languages: English, German, French, Italian, Spanish, Portuguese, and Chinese. ThisWindows-based software, included with each instrument, can also be used for training purposes, providing an excellent product simulation. Remote GUI Remote operation is achieved by establishing a suitable communications linkover an Ethernet LAN. Once the linkhas been successfully set up, the PC/laptop can communicate with the ANT-5 using the supplied version of the ANT-5 GUI faceplate. Advanced remote testing capability The ANT-5 also provides an advanced remote testing capability over Ethernet. As a result, technicians can poll instruments remotely from their offices, simplifying long-term commissioning and maintenance tests and dramatically reducing travel time and costs. Test results can be saved to any networkhard disk or printed from any network printer for convenient analysis. Flexible, cost-effective platform The ANT-5’s flexible design enables it to be adapted quickly to operators’ changing requirements. In addition, its field upgradeable capability, provided by the Compact Flash port, enables technicians in the field to install software in minutes. Hardware upgrades can be purchased to add optical bandwidths or wavelengths. This protects the initial investment and reduces additional training expenses while allowing operators to match capital expenditures to network rollout plans. The Acterna ANT-5 is an industry-leading access tester that sets new standards for portability, ease of use, and adaptability. It is the ideal device for field technicians who need to test a range of SDH, PDH, SONET, and ATM digital links both onsite and from a remote location. As a result, the ANT-5 provides a significant advantage for companieswishing to optimize quality of service using a cost-effective, industry- proven solution. Technical Specifications Electrical Interfaces G.703 transmitters BNC 75 ? unbalanced outputs Bit rates and line codes – 2048, 34368 Kbps HDB3 – 44736 Kbps B3ZS – 51840 Kbps B3ZS – 139264, 155520 Kbps CMI RJ48 120 ? balanced output Bit rate and line codes – 2048 Kbps HDB3 Electrical Interfaces BNC 75 ? unbalanced inputs Bit rates and line codes – 2048, 34368 Kbps HDB3 – 44736 Kbps B3ZS – 51840 Kbps B3ZS – 139264, 155520 Kbps CMI RJ48 120 ? balanced input Bit rate and line codes – 2048 Kbps HDB3 Clock Recovery - Pulling range as G.703 Selectable input gain – 155520 Kbps 20 dB – 2048, 34368 Kbps 26 dB – 44736, 139264 Kbps 26 dB T1 Interface Connectors Bantam Input impedance 100 ? Bit rate 1544 Kbps Line code AMI, B8ZS E1 Hi-Z Input A high input impedance setting for the E1 75 ?, E1 120 ?, and T1 100 ? ports enables these signals to be monitored without a PMP. Optical Interface (Options) G.957 optical transmitter and receiver (options) – Class 1 laser product Connectors FC-PC connectors Transmitter wavelengths Single (1310 nm), Dual (1310 nm and 1550 nm) Line bit rates 155.52 Mbps, 622.08 Mbps, 2488.32 Mbps Line code scrambled NRZ Optical Transmitter Specifications Optical option Line rate Wavelength Tx output power Tx output power @ 1310 nm @ 1550 nm BN4565/00.01 STM1 1310SR -8 dBm to -15 dBm BN4565/00.03 STM1 1310SR/1550LR -8 dBm to -15 dBm +2 dBm to -4 dBm BN4565/91.13 STM1/4 1310SR -8 dBm to -15 dBm BN4565/00.14 STM1/4 1310SR/1550LR -8 dBm to -15 dBm +2 dBm to -4 dBm BN4565/91.15 STM1/4 1310LR/1550LR +2 dBm to -4 dBm +2 dBm to -4 dBm BN4565/91.16 STM1/4/16 1310LR/1550LR +3 dBm to -3 dBm +3 dBm to -3 dBm Optical Receiver Specifications Optical option Line rate Wavelength Rx dynamic range @ 1100 to 1600 nm Rx optical overload BN4565/00.01 STM1 1310SR -8 dBm to -28 dBm N/A BN4565/00.03 STM1 1310SR/1550LR -8 dBm to -28 dBm N/A BN4565/91.13 STM1/4 1310SR -8 dBm to -28 dBm N/A BN4565/00.14 STM1/4 1310SR/1550LR -8 dBm to -28 dBm N/A BN4565/91.15 STM1/4 1310LR/1550LR -8 dBm to -28 dBm N/A BN4565/91.16 STM1/4/16 1310LR/1550LR -8 dBm to -28 dBm -6 dBm Optical Power Measurement Measurement of the received optical signal level Resolution 1 dB Electrical Interfaces For connecting the ANT-5 to STM-1/OC-3, STM-4/OC-12, and STM-16/OC-48 monitor points Line code scrambled NRZ Input voltage (peak-to-peak) 0.2 to 1 V Coaxial input Connector/impedance SMA/50 ? Transmit Clock Synchronization Internal stability ±3.6 ppm Tx bit rate offset ±100 ppm Increment 0.1 ppm External Clock (SDH Transmitter) Connector BNC 75 ? (120 ? via external adapter) Reference clock 1544, 2048 kHz Reference signal 1544, 2048 Kbps (HDB3) SDH Operating Modes – Terminated Mode – In-line Monitor Mode – Intrusive Thru Mode SDH Output Signals STM-0 signal consists of one VC-n container with – Framed or unframed PDH test pattern – Test pattern without stuffing bits (bulk signal to O.181) STM-1 signal consists of one VC-n container with – Framed or unframed PDH test pattern – Test pattern without stuffing bits (bulk signal to O.181) Content of nonselected containers – STM-1 PRBS 211-1 (framed/unframed as per selected container) STM-4 signal consists of one VC-n container with – Framed or unframed PDH test pattern – Test pattern without stuffing bits (bulk signal to O.181) – Three VC-4 containers each filled with a fixed pattern of 11100110 STM-16 signal consists of VC-n containers with – Framed or unframed PDH test pattern – Test pattern without stuffing bits (bulk signal to O.181) SDH Anomaly and Defect Insertion Defect generation Static ON/OFF Anomaly generation Single or at a continuous error rat io of 1x10–n (where the range of n is as indica ted below) Payload Bit errors (TSEs) n = 2-9 Anomalies B1, B3 n = 4-9 MS-REI n = 3-10 LP-REI, LP-BIP (except C4) n = 3-10 B2 n = 3-9 HP-REI n = 4-10 SDH Anomaly/Defect Burst Generation Anomalies (injected in n consecutive frames every m frames or seconds) B1, B2, MS-REI, B3, HP-REI, LP-BIP, LP-REI Defects LOS, LOF, RS-TIM, MS-AIS, MS-RDI, AU-LOP, AU-AIS, HP-UNEQ, HP-RDI, HP-TIM, HP-PLM, TU-LOP, TU-AIS, TU-LOM, LP-UNEQ, LP-RDI, LP-TIM, LP-PLM, LP-RFI SDH Error and Alarm Detection Error types B1, B2, B3, MS-REI, HP-REI, LP-REI, TSE, LP-BIP, PDH, FAS-45, FAS-34, FAS-2, FAS-1.5, REI-45, CPBIT, EBIT-2, CRC-2, code errors (2 Mbps, 45 Mbps), HP-IEC, LP-IEC, HP-OEI, HP-TC-DIFF, HP-TC-REI Alarm detection All alarms are monitored and detected simultaneously. Alarm types LOS, OOF, LOF, MS-AIS, MS-RDI, RS-TIM, AU-AIS, AU-LOP, AU-NDF, HP-RDI, HP-UNEQ, HP-TIM, HP-PLM, TU-AIS, TU-LOP, TU-LOM, LP-RDI, LP-PLM, LP-UNEQ, LP-TIM, LSS, LP-RFI, PDH-AIS, PDH-RDI Mappings (to ITU G.707) The following mappings are provided as standard with the instrument. (For the structure, see Figure 1.) – C11 mapping (1.5 Mbps) – C12 mapping (2 Mbps) – C3 mapping (34, 45 Mbps) – C4 mapping (140 Mbps) Test Patterns Test patterns may be generated and measured for any of the provided bit rates either directly at the SDH interface or within the STM-16/STM-4/STM-1 substructure. PRBS: 211-1, 220-1, 223-1, 231-1, 211-1 inv, 215-1 inv, 220-1 inv, 223-1 inv, 231-1 inv, QRSS20 User programmable word 16 bits Overhead Evaluation and Generation SOH and POH evaluation Display of complete SOH and POH in hex, binary, and ASCII formats. Text decode of S and C bytes for the trace identifier. J0 display of 16 byte ASCII sequence. J1 and J2 display of 16 or 64 byte ASCII sequence. SOH and POH generation The content of all bytes, with the exception of A1/A2, B1/B2/B3, and H1 to H4, is programmable with any byte. – Selectable synchronization messages (S byte) – Selectable signal labels (C byte) – Trace identifier – J0 programmable 1 byte hexadecimal or 16 byte ASCII sequence with CRC – J1 and J2 programmable 16 byte ASCII sequence with CRC or 64 byte ASCII sequence Pointer Analysis and Generation in AU/TU Pointer analysis Current pointer values displayed Displays counts of: – Pointer increments and decrements, sum and difference – New data flags (NDFs) – Average deviation (in ppm) of AU and TU User selectable recording of pointer events into the event log. Pointer generation Generation of pointers by: – Single pointer INC or DEC or INC/DEC Frame rate: 100 to 8000 Receive K-Byte Capture Captures K1 and K2 bytes Capture trigger criteria: user selectable Tandem Connection Monitoring (TCM) Monitoring Analysis of N1 and N2 bytes Monitoring/display of: TC-IEC, TC-AIS, TC-REI, TC-OEI, TC-UNEQ, LTC, TC-AIS, TC-RDI, TC-ODI, TC-REI Online display of TCM access point identifier TCM error measurement Incoming B3/computed BIP comparison Generation Generation of N1 and N2 bytes To create: TC-IEC, TC-AIS, TC-REI, TC-RDI, TC-OEI, TC-ODI, TC-UNEQ Signal Frequency Measurement Receive signal frequency is displayed and deviation from nominal shown in ppm. Resolution 0.1 ppm Please check our Huge Inventory with savings of up to 80% off of retail on Cat5/5e/6 LAN Cable Certifiers and Fiber Optic OTDR's, Fusion Splicers, CATV Meters, Fiber Optic Kits, Sources, Meters, Tools, Network Analyzers and much more. Here is a Link to our Ebay Test Equipment Store. All of our Test Equipment is backed with a Full Warranty and unbeatable customer support & service. Please don't hesitate to contact us for a Quote on Something you don't see in our inventory, sometimes we have items that may have not been listed or processed yet. Test Equipment Store Offers a wide range of Refurbished Telecom/ Datacom Tools and Test Measurement Equipment. Which includes Fiber Optic Test and Splicing tools, Fusion Splicers, OTDRs, Copper and Fiber Cable Certifiers, CATV Test Equipment, Cable and Antenna Analyzers, Network Analyzers and much more! We carry a large inventory of quality refurbished and used test equipment from all the major manufacturers. If you are looking for multiple quantities or if we don't have a listing for a particular item that you are looking for. Please contact us as it may be fresh inventory waiting to be listed or we'll be glad to find it for you at the best price possible and put up an eBay listing for you! Contact: Test Equipment Store eBay Sales Phone: 1-419-517-6681 Toll Free : 1-800-548-2381 We Ship World Wide! We will attempt to ship your item(s) within 24 hours after payment has been received. To get a real-time shipping quote to your destination, enter your country and zip / postal code information into the shipping calculator and click "Get Rate". Many countries impose their own customs, duties, tariffs, taxes, etc. on items being shipped from a foreign country. We do not cover those cost's and we recommend that you contact your countries customs agency for that information. We Offer Multiple Quantity Price & Shipping Discounts, Email Us If You Are Interested In Larger Quantities. UPS Ground United States USD 0.00 USPS Express Mail International (EMS) Worldwide USD 0.00 We accept credit card payment transactions via the online checkout system! The checkout process is designed so that it communicates with the merchant to confirm that payment has been made and cleared. Other methods of payment are outlined through the online checkout process. Winning bidders must contact us within 3 days after auction close if special payment arrangements are needed. Your payment is expected within 5 days after the auction close. Unpaid auctions will be forfeited after 5 days of the auction close and the Item(s) will be relisted for sale. Items will be shipped within 24 hours (1 Business Day) upon receipt of payment from the winning bidder. (Certain orders may take longer for processing due to comprehensive final service inspections) A Shipment Tracking number(s) will be provided to inform Buyers of their expected ETA (Estimated Time of Arrival). Tracking number(s) will be provided the same day as order shipment. Thank you ALL MAJOR CREDIT CARDS & PayPal ACCEPTED Powers Your Online Marketplace Make order management a breeze with Kyozou eBay Order Management Software

Condition:	Seller refurbished: An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details. ...	Brand	JDSU
Model	ANT-5
