JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot, US $34.99 – Picture 0

JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot, US $34.99 – Picture 1

JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot, US $34.99 – Picture 2

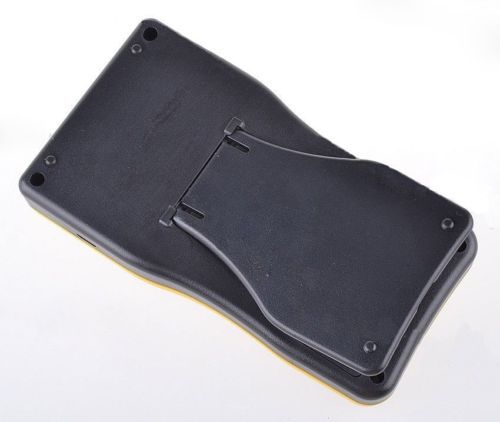

JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot, US $34.99 – Picture 3

Jy6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pf To 470mf Hot

US $34.99

shenzhen, China
Jan 29th

Open on mobile:
QR code

JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Hot International Buyers – Please Note: a) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. b) Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. JY6013 V2 Autorange Capacitor Capacitance Tester Meter Cap 0.01pF to 470mF Get JY6013 for Four Reasons: 1. JINGYAN M6013 V2 Auto-ranging capacitance meter. 2. M6013 have fast reading speed and high accuracy up to 1%. 3. Using 128X64 dot matrix LCD, can display 5 digit reading, Large range of measuring 0.01pF to 470mF (470000uF) capacitance, which enough for DIY user to professional engineer usage. 4. Reading a 2200uF only take ~0.2s *PLEASE DISCHARGE THE CAPACITOR BEFORE TESTING Compare M6013 old V1 and new V2 Improvement: 1) Larger measuring range, V2 can read up to 470mF 2) New large dot matrix LCD 3) New housing with stand 4) More stable on reading, (with auto running averaging function, can read pF more stable and accuracy) 5) Can use 2X AA battery rather than 9V 6) Can use mirco usb as external power. JY6013 Specification: Range Accuracy (After Zero, tested with 1nF, 1uF, 1000uF) Refresh Time (Manual Mode) *Auto mode take 0 to 2s more time depend on value Larger capacitance take more measuring time 0.01pF to 47.000nF 1%+2Digit ~0.2s to 1s 47.00nF to 47.000uF 1%+1Digit ~0.2s to 2s 47.00uF to 470.00mF 1 to 3%+1Digit (Larger capacitance will have larger error) ~0.2s to 30s Accuracy maybe affected by the test lead’s length and distance of test leads. Especially testing pF small capacitance, shortest test lead is recommended, and be careful the surrounding EMI or RF noise may affect the pF reading. 1) Accuracy: Up to 1% (detail on above table) 2) High Resolution: 5 digit 3) Measuring voltage: <0.8V 4) Clamping voltage: ~1.25V (open voltage) 5) Battery 2X AA 1.5V battery 6) External Power: 5V micro USB 7) Operating current 0.02A 8) Battery Life time: >80 Hours Operating Introduction: 1) POWER ON Press and hold the ON/ OFF circle orange button for 1 to 2 second to power on. Press and release the ON/ OFF button to shut down meter. 2) AUTO/ MANUAL mode: i) Auto Range: Press and release the RANGE button and at the first line of LCD will show “AUTO:" At auto mode meter will automatically select the best range to detect. ii) Manual Range: Scroll the manual range from 47nF, 47uF and 470mF range by press and release the RANGE button In LCD will show MANUAL at first LCD line and show at second line: 0-47NF, 47NF TO 47UF and 47UF TO 470MF. 3) 1 Key Zero: OPEN circuit the test leads’ terminal. Press and release the “ZERO" button, LCD shows “ZERO" and wait the zero disappear. If you are using the meter array socket, you need to OPEN circuit to set zero too. 4) Socket: You can use the 8 pin socket to measure the capacitor 5) Running Average: It will automatically start running average if the capacitance reading become stable and user can get more accuracy reading. During running average it will show “AVG” at right bottom LCD or it will show raw data icon “RAW” As a result, if you want to get higher accuracy reading, you can take the reading during AVG display. This function will automatically on, once the raw data is noise. 6) Backlight: LCD backlight will on during power on 7) Auto Sleep: Around 8 to 10 hours for not testing, it will shut down automatically to save power. 8) OVERFLOW or OL: Display overflow when the value is out of range, you can check that you are zero correctly. 9) PLASTIC STAND: If you don’t use the stand, press and push the lock position: Package including: 1unit x M6013 1pair x test probe Contact us If there is any problem, please contact with us by eBay Message First, we will reply you within 48 hours, Because due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately, so pls understand this. Feedback Your positive feedback with five stars rating will be highly appreciated after you get item. We strive to give our customers the best eBay buying experience. Any problem, pls contact us firstly instead of giving us negative or neutral feedback. For negative or neutral feedback won't solve any problem. We promise that we will try our best to solve your problems and give you the most satisfaction. Customer Service Available Welcome to visit my store zlstech188 and wish you have a pleasure eBay Buying experience with us! 1. The item will be shipped out within 1 working days after payment was received. 2. The package will be sent by Singapore post airmail. Normally the estimated delivery time is 15-25 working days. If you don't receive the item after the 30 days, please contact us first!!! we will do our best to solve the delivery problem for you. 3. If your delivery address is remote area, you need to pay more $30-$50 remote shipping cost. 1. PayPal is the only online payment method we accept. Please make sure you have a valid/confirmed PayPal account prior bidding. 2. We will send item to your Confirmed Shipping Address in Paypal. If you would like to post to other address,please timely leave us a note when making payment through Paypal.We will NOT be responsible for any delivery failure due to unclear, unconfirmed or incomplete addresses given. 3. Please make payment within 3 days after biding, or all non-pay bidders will result in a non-paymemt buyer alert from Ebay and unpaid transaction would be closed. inkfrog terapeak i000000 inkFrog Analytics
