KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Electric KADW-20-000, US $10000 – Picture 0

KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Electric KADW-20-000, US $10000 – Picture 1

KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Electric KADW-20-000, US $10000 – Picture 2

KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Electric KADW-20-000, US $10000 – Picture 3

KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Electric KADW-20-000, US $10000 – Picture 4

Kaeser Dryer Kadw-20 Wall Mounted Desiccant Dryer Electric Kadw-20-000

US $10000

Wilmington, North Carolina, United States
Jan 30th

Open on mobile:
QR code

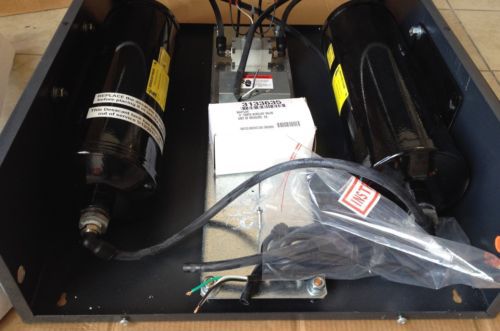

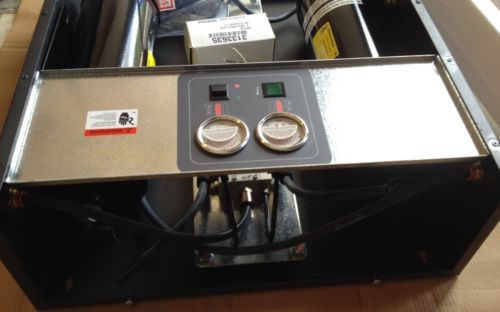

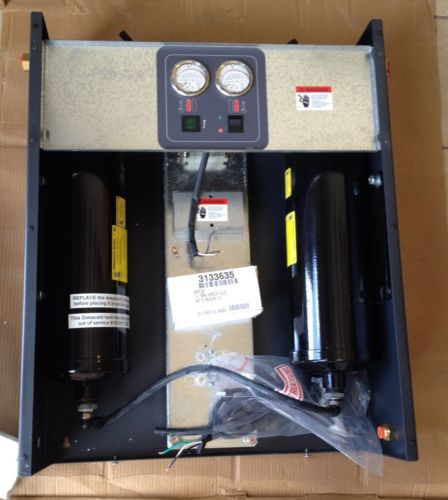

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER Up for sale is a KAESER DRYER KADW-20 WALL MOUNTED DESICCANT DRYER. New in open box. Manufactured in 2005 and never used. Comes with manual, muffler, and power cord. Consistently dry air For small applications that need very dry air, Kaeser offers a wall mounted version of its heatless adsorptive desiccant dryer, the KADW. These dryers are based on a "counterflow" design. Towers dry air as it flows up, and purge air on the way down. Therefore the driest desiccant is always at the top of the bed. This results in air leaving the on-stream tower consistently at the specified dew point. To ensure proper unit operation, the towers are designed to limit the air velocity. This prevents bed fluidization and desiccant dusting and ensures proper contact time between the air and desiccant. All units are designed for easy connection to an optional Kaeser Oil Removal (KOR) prefilter and the Kaeser Particulate (KPF) afterfilter. Precise dew points All KADW's include a highly accurate solid-state timer. The timer is set for a standard 10 minute cycle to ensure the required dew point. Large desiccant beds insure sufficient water vapor removal to yield -40°F pressure dew point on a 10 minute cycle. However, this timer is also field-adjustable to a 4 minute cycle if a -100°F pressure dew point is needed. For easy installation, Kaeser KADW series dryers are furnished in ready-to- mount cabinets. The dryers are completely assembled, piped and wired at the factory, and fully charged with desiccant. Simply make the utility connections, and the air dryer is ready for operation. Flow capacities Maximum inlet flow capacities at various pressures: To determine maximum inlet flow at air inlet pressures other than 100 psig, multiply the inlet flow from Table 1 by the multiplier from Table 2 that corresponds to system pressure at inlet of dryer. Purge flow at various capacities: To determine average or maximum purge flow at inlet pressures other than 100 psig, multiply purge flow (Table 1), by the correction factor (Table 3) that corresponds to system pressure at inlet of dryer Outlet flow capacities: To determine outlet flow capacity, subtract purge flow from inlet flow. Optional Equipment: Filters Filters provide the additional protection from contaminants that degrade desiccant performance. Filters remove solid particles, oil aerosols, moisture and oil vapors. Adding filters to the compressed air system will save considerable costs in process downtime, cleaning tools, and repairing equipment. Maximum working pressure: 150 psig. Electrics: 115/1/60; 230/1/60; NEMA 1 (standard); NEMA 4 (optional). Note 1: Inlet flows are established in accordance with CAGI (Compressed Air and Gas Institute) standard ADF-200, Dual Stage Regenerative Desiccant Compressed Air Dryers - Methods for Testing and Rating. Conditions for rating dryers are: Inlet pressure - 100 psig; inlet temperature - saturated at 100°F. Actual pressure drop for all units is less than 3 psi at rated conditions. Note 2: Average Purge Flow is the total amount of air used to purge and repressurize off-stream towers averaged over the cycle time. Maximum purge flow is the flow rate through the off-stream tower during that portion of the cycle the purge/repressurization valve is open. Product Family Compressed Air Dryers Series Wall Mounted - KADW Capacity at 100 psig 5 to 25 scfm Cycle Time 4 min 10 min Inlet Flow 17 scfm 20 scfm Avg. Purge Flow 3.4 scfm 4.0 scfm Max. Purge Flow 4.4 scfm Avg. Downstream Air Available 13.6 scfm 16 scfm Min. Downstream Air Available 12.6 scfm 15.6 scfm Length 31 in. Width 9 in. Height 31 in. Connection Size (Inlet/Outlet) 1/2 in. Connection Type (Inlet/Outlet) NPTF Weight 171 lbs Max. Working Pressure 150 psig Electrics 115V - 1 - 60Hz 230V - 1 - 60Hz Standard Features Convenient wall-mountingConsistent dew-points Regenerative desiccant Solid state timer Completely assembled, piped, and wired for installation Don't forget to look at My Other Items Terms and Conditions. Once a bid has been placed, it is a legally binding contract of purchase Payment must be received within 3 working days of purchase, however if this is not possible, please let us know to discuss solutions. If payment is not received within 3 days of purchase then a Non Paying Buyer Dispute will be filed, and 5 days later a final fee credit lodged and the item will be relisted. You will be notified on the day that your goods have been despatched via e-mail Please note that if there are any problems, contact us first via e-mail giving full details of any problem along with your user ID 7 days after we have despatched your order, if we have not been notified by you of any problem, or received feedback, we will send a feedback reminder. It is the customers responsibility to ensure that payment is received in the due time as listed above All goods are sent Standard Shipping via FedEx, USPS, or UPS. Goods will be despatched within 48 hrs of cleared fund, subject to the conditions listed in the payment section above. We accept no responsibility for goods lost or damaged shipped internationally. On Jul-15-14 at 16:09:06 PDT, seller added the following information: Use the FREE Counters 1 million sellers do - Vendio!

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“New open Box.”
