Lcd12864 Ramps 1.4 Board 2560 R3 Control Board A4988 Driver Kit For 3d Printer

US $61.62

Guangzhou, China
Feb 26th

Open on mobile:
QR code

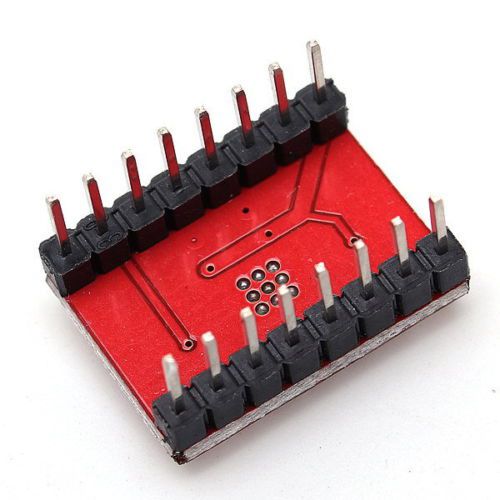

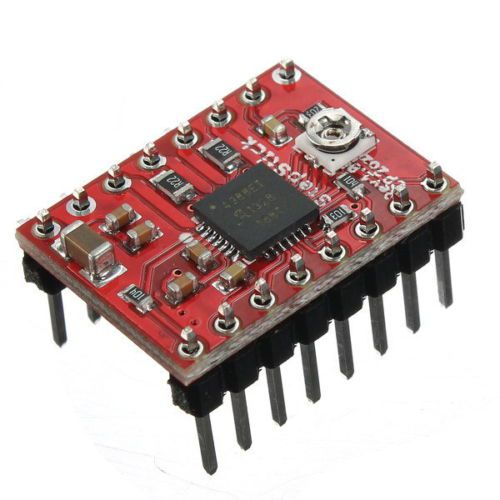

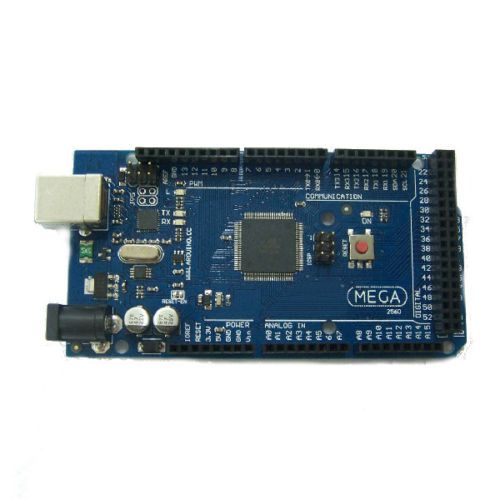

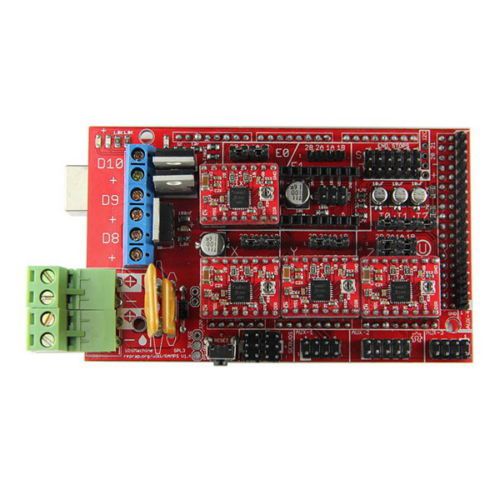

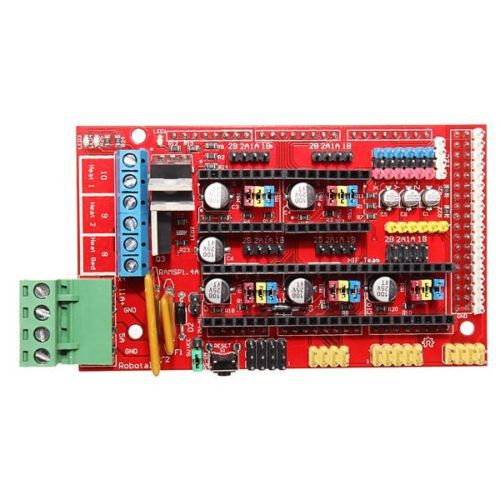

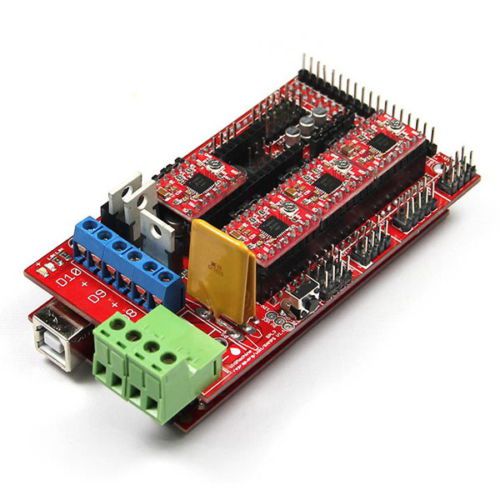

Power design of Mega 2560 R3 board: Arduino Mega power supply system has two options, USB direct power supply or an external power supply. Select the power supply will automatically switch. Optional external power supply AC-to-DC adapter or battery, this limits the control board voltage range 6V ~ 12V, but if the voltage supplied is less than 6V, I / O ports may not provide the 5V voltage, so there will be no stable; if the supplied voltage is greater than 12V, the regulator will have the device may overheat protection, are more likely to damage the Arduino MEGA. Therefore, the operation of the proposed power supply 6.5 ~ 12V, 7.5V or recommended power supply is 9V. Large screen: 12864LCD Integration SD card in the back, after slicing the file into the SD card, you can select the corresponding files on the LCD. The board has encoder, can be achieved parameter adjustment, and the file selection print! The ramps can be Plug-and-Play, but it need to modify the firmware to support. A4988 driver: Low RDS (ON) outputs Automatic current decay mode detection / selection Mixed with slow current decay mode Synchronous rectification for low power dissipation Internal UVLO Crossover current protection 3.3 and 5V compatible logic supply Thermal shutdown circuit Ground short circuit protection Load short-circuit protection Five selectable stepper modes: full, 1/2, 1/4, 1/8 and 1/16 Package Included:1 x 12864 LCD board 1 x RAMPS 1.4 control board 1 x Mega 2560 R3 control board 5 x A4988 driver 1 x Adapter cable 2 x FC-10P flat cable Shipping: We will ship The item in 1 - 3 business days. FREE SHIPPING to Worldwide. We ship with airmail Shipping can take up to 7 - 25 business days. Sometimes can take up to 45 business days. Taxes: Buyer is responsible for local taxes, duties or other importation issues according to the destined country's laws. Return: Returns are accepted within 14 days after the buyer receives the item, Buyer is responsible for return shipping costs. After receiving the return we will make a replacement depending on our available stock, if not available, a refund will be issued Contact: Please feel free to contact us for any issue or questions and we will be happy to respond ASAP Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application
