Leeson Ac Gear Motor Cm38p17fz16b

US $175.00

  • Fairmount, Illinois, United States
  • Jun 9th
Open on mobile:
QR code

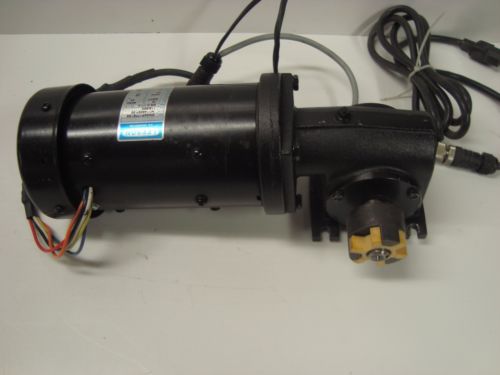

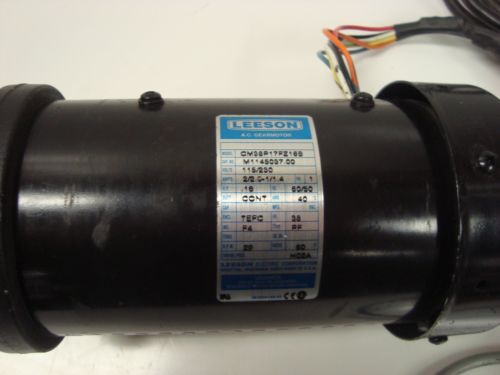

THIS MOTOR WAS TAKEN OFF A MACHINE NO LONGER IN SERVICE AND IS IN ECELLENT CONDITION. WHILE ON THE MACHINE WE NEVER DID USE ITS FUNCTION SO THE MOTOR HAS NEVER BEEN RAN WHILE INSTALLED. Leeson Motors Gearmotor-Right-Angle Shaft, 29RPM, 1/6HP, TEFC, 115/230V, AC Product Specifications HORSEPOWER1/6 RPM29 TORQUE IN LBS110 FRAME38 TYPE-FRAME13F60-38F ENCLOSURETEFC AMP2 PHASE1 VOLTAGE115 / 230 OVERHUNG LOAD LBS.235 SHAFT ORIENTATIONRight-Angle DIAGRAM DIMENSION - AF3.85 DIAGRAM DIMENSION - X4.5 DIAGRAM DIMENSION - XH7.81 DIAGRAM DIMENSION - XL12.31 WEIGHT21 LEESON MODEL NOCM38P17FZ16B CATALOG NOM1145037.00 UPC69172009219 RATIO TO 160 BRANDLeesonAC Gearmotor with Right-Angle Shaft. 1/6HP, 29 RPM, Gear Ratio 60 to 1, Overhung Load 235 Pounds, 110 Lb. In. Full Load Torque, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 38 Frame, 115/230V, 1PH, Name Plate Amps 2.Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation. Features precision machined aluminum housings and gearbox with all ball bearings. The housing is sealed and lubrication is permanent with an oil bath. The output shaft is field interchangeable from left hand style to righthand style. Single phase gearmotors are totally enclosed for continuous duty, general purpose applications. Permanent split capacitor motors are rated 115/230 VAC 60/50 hertz input, and have starting torque equal to the running torque. For optimum seal life, these right angle gearmotors have a lubrication breather positioned for horizontal mounting. For other mountings, the breather-plug must be re-oriented by using a 90 degree 1/8 NPT taper pipe elbow. However, the motor portion of the gearmotor should never be mounted below the gearhead. Overhung load capacities shown are at center of outputshaft. These motors are supplied with continuous duty run capacity. Conduit box not supplied with motor. LIST PRICE:$450
Condition:
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...
Brand LEESON
Model CM38P17FZ16B
