Maho Mh800w 4 Axis Universal Machine Used In Stock Maho Maho Maho

US $18000

Hartland, Wisconsin, United States
Jan 30th

Open on mobile:
QR code

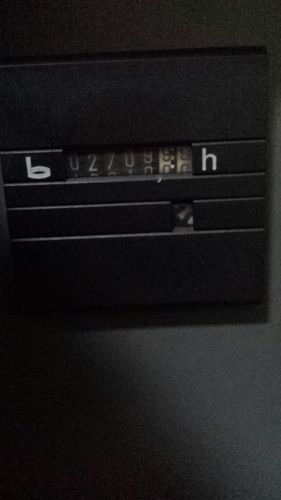

www.europeanmachinetool.com Questions feel free to Visit us or call us 262-327-0800 IN STOCK EUROPEAN MACHINE TOOLS . WE HAVE IN STOCK DMU125 FD MILL-TURN DECKEL MAHO CNC MACHINES. WE HAVE IN STOCK MIKRON UCP600 5AXIS VARIO CNC MACHINES WE HAVE IN STOCK HERMLE 600 and 851 and 1000 MACHINES 3 and 5 side machining. IN STOCK EUROPEAN MACHINE TOOLS. Used 1994 DECKEL MAHO MH800W 4-AXIS UNIVERSAL MILLING MACHINE: Made in Pfronten, Germany Build date for this machine 12/1993. First installed new 01/1994. VIDEO: http://youtu.be/yOayprAk5_g Hour meter shows 2,709 spindle on hours. May be inspected under power by appointment in Wisconsin -DESIGN CONCEPT- This machine is equipped with a manual swivel milling head for changeover from horizontal to vertical and vertical to horizontal machining. Together with the full fourth axis NC Rotary Table, 5-Sided 4-Axis simultaneous machining is possible with one workpiece clamping increasing precision and saving time by eliminating multiple setups. This machine is equipped with wide hardened & ground ways for taking heavy cuts. -LINEAR GLASS SCALES (0.00004"/0.001 mm RESOLUTION)- This machine has a direct measuring system using linear glass scales in X/Y/Z/B. As the measuring system is independent of wear and tear in the ways or backlash in the ballscrews, very high accuracies are achieved which are sustained over the life of the machine. -DECKEL MAHO CNC 532 CONTROL SYSTEM- The CNC 532 is a very user friendly control with the following options as standard for high productivity: Color graphics support for drilling & milling cycles, axis movements and other functions Pocket milling cycles Tapping Simulation Interactive contour programming RS 232 port for program downloading Electronic handwheel for part setup -WORKING CAPACITY- Longitudinal X axis..................................... 31.5" (800 mm) Vertical Y axis......................................... 19.7" (500 mm) Transverse Z axis....................................... 21.7" (551 mm) -HORIZONTAL & VERTICAL SPINDLES-AC DRIVE- AC Drive Power 100% DC................................ 10.1 HP (7.5 kW) AC Drive Power 40% DC.................................. 20.1 HP (15 kW) Spindle Taper................................................... CAT 40 Spindles speed ranges..................................... 20-4,000 RPM Torque (max)........................................ 479 ft/lb (649 Nm) Quill Stroke (Vertical).................................. 3.15" (80 mm) Vertical/Horizontal Changeover.................................. Manual -FEED RANGE/RAPID TRAVERSE- Feed in X, Y and Z axes.................. 0.04-118 IPM (1-2,997 mm/min) Rapid Traverse, X/Y/Z axes...................... 197 IPM (5,004 mm/min) -B-AXIS NC ROTARY TABLE- The NC Rotary Table is built so that the rotary motion of the table is controlled as a fourth axis by the CNC. An optical encoder mounted directly in-line with the axis of rotation has a resolution of 0.001 degrees. Table clamping is hydromechanical. Rotation Range..... 360 x 0.001 degree (Full 4-Axis Simultaneous Table) Clamping Area................. 35.4" diameter x 23.6" (899 mm x 599 mm) Load Carrying Capacity............................... 990 lbs. (449 kg) Table Top to Horizontal Spindle min/max...... 2.8"/22.5" (71 mm/571 mm) Table Top to Vertical Spindle Nose min/max..... 0.4"/20" (10 mm/508 mm) Table Center to Horizontal Spindle Nose................. 20.7" (526 mm) -GLASS SCALES X/Y/Z/B AXES DIRECT PATH MEASURING SYSTEM- Input Resolution.................................... .00004" (0.001 mm) Rated Accuracy*...................... Plus or minus 0.00035" (0.009 mm) Rated Repeatability*................. Plus or minus 0.00012" (0.003 mm) *Based on VDI/DGQ 3441, bi-directional over full travel -GENERAL DATA- Machine weight...................... Approximately 9,680 lbs (4,391 kg) Machine dimensions............ Approximately 142" F-B X 85" L-R X 86" H -EQUIPPED WITH- Chip pan with coolant pump for flood coolant on outside of spindle 4 leveling shoes Available books, manuals and documentation Coolant wash down spray gun Foot switch for clamping/unclamping Work lamp Semi cabin enclosure AC Drives Floppy Disk with /Machine Info. Build in Transformer / Multi tap. 220v 240 v 415v 440 v 460v 480v 500v Purchase Point is Jackson WI PLUS STATE & LOCAL TAXES, IF APPLICABLE PRICE QUOTED IN UNITED STATES DOLLARS PLUS STATE & LOCAL TAXES, IF APPLICABLE SUBJECT TO AVAILABILITY, AND TERMS AND CONDITIONS MACHINE IS BEING SOLD IN AS IS CONDITION,NO WARRANTY. AS INSPECTED.SPECIFICATIONS IS SUBJECT TO VERIFICATIONS (Catalog specification.) FOB:WISCONSIN Jackson 262-327-0800 SOLD AS IS, VIDEOS AVAL. http://youtu.be/yOayprAk5_g www.europeanmachinetool.com QUESTIONS? CALL TOLL FREE 855-855-2947 OR LOCAL 262-327-0800

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	MAHO

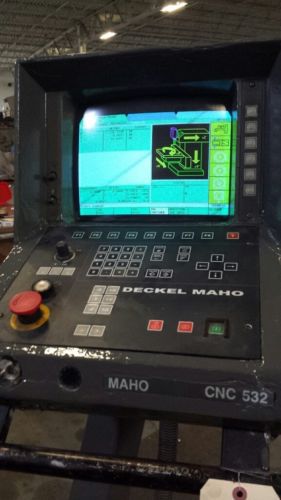

Model	MH800 4 axis CNC 532 control
