Manncorp Br790-hd Bga Rework Station

US $21,999.00

San Diego, California, United States
Jan 30th

Open on mobile:
QR code

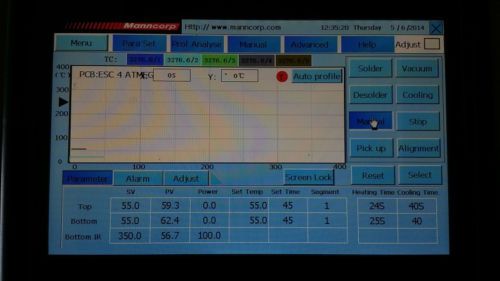

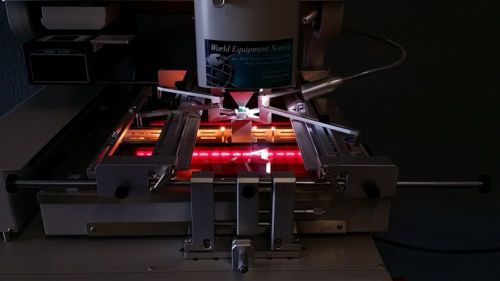

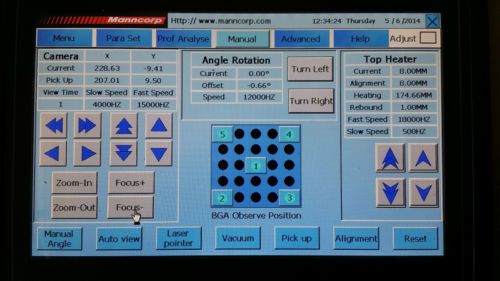

Manncorp BR790-HD BGA Rework Station The Manufacturer's Description ? IN-Like New Condition, Only Used Twice ? ? Split-Vision Optics with 1.3 Million Pixel HD Video Camera, Electronic Zoom Adjustment, and LED Lighting, Projects Superimposed Images of Component Leads and PCB Pads on 15" Full Color LCD Display. ? Independent and Fully Programmable Top and Bottom Hot Air Heating, Essential for BGA and CSP Rework, Controlled by High-Quality Siemens PLC and Temperature Control Module. ? Thermal Profiles Divisible Into As Many As Eight Segments for Both Top and Bottom Heating with Programmable Heating Rate, Target Temperature, Dwell Time, and Cooling. ? Automated Z Axis Motion with Optoelectronic Vertical Height Sensing for Controlled Desoldering, Lift, Placement, and Resoldering of Delicate SMDs. ? Auto-Pickup of SMDs from Component Presentation Nest, and Auto-Positioning of Split-Vision Optics Between Component and PCB Pads, Reduces Cycle Time and Protects Delicate Devices from Handling Damage. ? Ultra-Fine Micrometer Adjustments in X, Y, and Theta Axes for Fast, Easy, and Precise Alignment of Component Leads to PCB Pads. ? 6-Zone IR Underheater with Programmable Power Settings Eliminates Steep Thermal Gradients Across PCB Surface and Prevents Board Warpage and Stress on Adjacent Components and Solder Joints. ? High-Efficiency, Rapid IR Heating Technology Reduces Cycle Times and Increases Throughput. ? Profile Parameters Include Control of Internal Blower That Provides Lateral Air Flow Across the PCB Surface for Controlled Cooldown Function. ? Touch-Screen User Interface with Five Integrated Thermocouple Inputs and Real-Time Temperature Recording Allows On-the-Fly Parameter Adjustment and Simplified Profiling. ? Password-Protected User Privileges Separate Operator and Administrative Control Functions. ? Software Provides Profile Analysis and Screen Printing Functions via USB Port for Job/Lot Traceability. ? On-Board Storage Capacity for Thousands of Leaded and Lead-Free Soldering and Desoldering Profile Parameter Sets for a Multitude of Surface Mount Rework Applications. ? Fully Adjustable PCB Holder Accepts Large, Oversized PCBs Up To 550 mm x 500 mm (21.6" x 19.7") and Includes Adjustable Bottom-Side Support Rails. ? Convenient Laser Pointer Allows Quick and Easy Positioning of Component/PCB Inline Between Top and Bottom Heater Nozzles. ? Full Range of Heater Nozzles Available to Solder/Desolder Components from 3 mm x 3 mm to 80 mm x 80 mm (0.12" x 0.12" to 3.15" x 3.15") ? Internal Pump, Vacuum Generator, and Full Set of Vacuum Pick-Up Nozzles Included...No External Compressed Air or Vacuum Needed. Items included: ? Top Nozzles QTY: 9 3x3/2, 6x6/3, 7x7, 12x12, 15x15 and 20x20 ? Bottom Nozzles 35x35 and 59x59 Stencils: QTY 33 all different size. ? Re-balling Kit ? Thermalcouple: Qty 5 K type ? Two Heating elements, One Top one Bottom. ? Alignment tools ? User Manual and a high temperature cloth. ID 111110-KM What Condition is this Item In? This is a used item that we have obtained from a liquidated facility. It comes as pictured and you can see its overall good condition. It was pulled from a working environment. Please contact us with any additional questions you may have. Calibration Additional Cost: TBD We can arrange for the calibration of your unit by an accredited calibration lab. If you choose to let us have your instrument calibrated, please do not checkout until we have re-invoiced you. Contact Us Please don't hesitate to contact us through eBay or over the phone! Email: sales@wesource.com Phone #: (858) 693-1991 Website: www.WESource.com Return Policy You may return most undamaged items purchased at World Equipment Source's eBay store within 7 days of the original delivery. We will pay the return shipping costs if the return is a result of our error. If the item is returned for any other reason you are responsible for the return shipping costs and may be charged a restocking fee of 10 percent or $250.00, depending on which one is lower. No returned merchandise will be accepted without a Return Material Authorization (RMA). Click here to read our full return policy.Shipping Policy World Equipment Source ships many types of delicate electronics all across the world. To insure safe delivery, we take special care when packing our items for shipment. For example, all test equipment and feeders are foam packed. Your handling fee during checkout will reflect the costs associated with safely shipping your item. Click here to read our full shipping policy.Terms and Conditions By purchasing or bidding on our items, you signify that you accept our Terms and Conditions. Click here to read our full Terms and Conditions.
