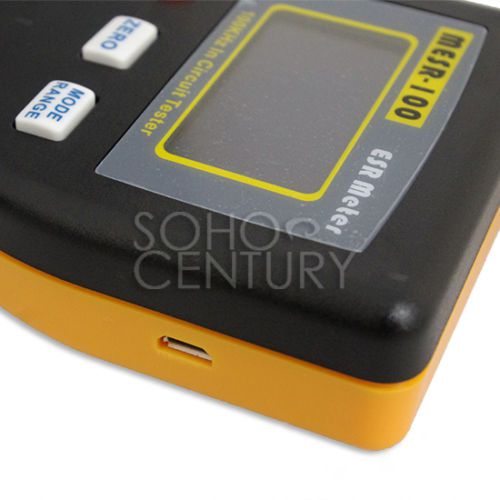

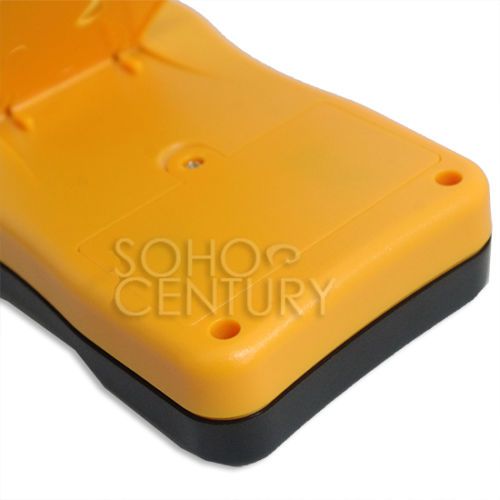

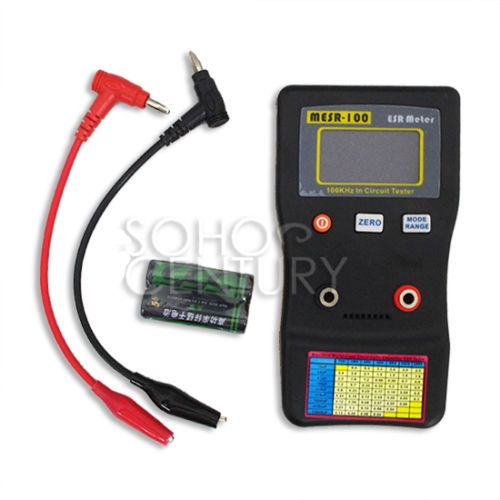

Mesr-100 Autoranging In Circuit Esr Capacitor Low Ohm Meter 0.001 To 100r

US $70.99

United States
Jan 29th

Open on mobile:
QR code

MESR-100 AutoRanging In Circuit ESR Capacitor Low Ohm Meter 0.001 to 100R MESR-100 V2 Auto-ranging capacitor ESR and Low Ohm Meter Measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. In the market, there is some technique using short pulse method to testing, but the value will be varying vs the capacitance and sometimes reading is different from the manufacturer's value. What is ESR of capacitor? There is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C), the impedance become small, and we can then measure the true series resistor value. A bad E-capacitor will have larger ESR and create large ripple rather than filtering noise. Normally, a big capacitor is larger than 3 ohm. Using this theory, we can measure the capacitor is bad/ damaged or good in condition. Because our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. Because this low testing voltage, it cannot turn on the semiconductor inside a circuit under testing. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. *Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check Compare MESR100 old V1 and new V2 Improvement: 1) Change square wave to sine wave 100 KHz, reduce square wave’s high frequency component, and affect the reading passing the test leads and capacitor. 2) Higher Resolution up to 0.001 ohm. 3) 128X64 dot matrix LCD, with more larger value display and information 4) Embedded 25V capacitor table at LCD, auto display the capacitor is good or bad reference to common 25V electrolytic capacitor. 5) New plastic case, curve design for hand carrying. New stand for 60 degree stand on desk. 6) Use 2X AA battery, more convenience and longer battery life than 9V battery. 7) Support external USB power, using standard micro-USB port. Specification: Range Accuracy (After Zero, tested with 1,10,100R resistor) Refresh Time (Manual Mode) *Auto mode take 0 to 2s more time depend on value 0.000 to 1.000R 1%+2Digit ~0.4s 1.000 to 10.00R 1%+1Digit ~0.4s 10.00 to 100.0R 2%+1Digit ~0.4s *Accuracy maybe affected by the test lead’s length and contact point resistance. Standard test leads is 15cm, for longer test leads need special shielding to affect the EMI inference (Can contact sales’ person for more detail) 1) Accuracy: Up to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) 2) High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range 3) Measuring voltage: <~40mV RMS (TESTING VOLTAGE) 4) Clamping voltage: ~0.15V (open voltage) 5) Battery 2X AA 1.5V battery 6) External Power: 5V micro USB 7) Operating current 0.02A 8) Battery Life time: >80 Hours Operating Introduction: 1) POWER ON Press and hold the ON/ OFF circle orange button for 2 to 3 second to power on. Press and release the ON/ OFF button to shut down meter. 2) AUTO/ MANUAL mode: i) Auto Range: Press and release the RANGE button and at the first line of LCD will show “AUTO:" At auto mode meter will automatically select the best range to detect. ii) Manual Range: Scroll the manual range from 1R, 10R and 100R range by press and release the RANGE button In LCD will show MANUAL at first LCD line and show at second line: 0-1R, 1-10R and 10-100R. 3) 1 Key Zero: Short circuit the test leads’ terminal, cancelling the wire resistance. Press and release the “ZERO" button, LCD shows “ZERO" and wait the zero disappear. If you are using the meter array socket, you need to use a short pin to short circuit to set zero. 4) Backlight: LCD backlight will on during power on 5) Auto Sleep: Around 10 hours for not testing, it will shut down automatically to save power. 6) OVERFLOW or OL: Display overflow when the value is out of range, you can check that you are zero correctly. 7) ESR TABLE: It is for reference only, different manufacturer of capacitor has different ESR, better to test a good cap ESR and compare with what you are testing, usually bad cap with higher ESR few times larger than good one. 8) SOFTWARE ESR: Put the 25V Electrolytic capacitor value to LCD, and compare, GOOD if C < XXuF, means the capacitor maybe good condition if it is less than XXuF 9) PLASTIC STAND: If you don’t use the stand, press and push the lock position. Package includes 1 x MESR-100 meter 1 pair test probe 2 x AA batteries Shipping Terns We will ship to worldwide. The following is the approximate shipping time to different region Estimated Delivery Time US (Eastern) USPS Priority Mail 3 - 6 business days US (Western) USPS Priority Mail 4 - 7 business days Other Countries (will be Delivered from other stock location) Registered Air Mail 2 - 4 weeks depends on destination All items will be sent with tracking number. We will ship the item according to the address on your eBay profile. No combine shipping discount and no local pickup service. Please make sure that you agree with our terms before bidding. Item will be dispatched within 24 hours after we have received your payment. Parcel should arrive within the time estimated above . Please understand it may delivered within the reference time. Payment We accept PayPal payment or bank notes through registered mail. Payment must be fulfilled within 7 days after auction's ended. Returns policy For DOA (Defective on Arrival) item, please notify us for shipping instructions. Then, please send it back within 7 days upon date of receipt. Return shipping costs will be at buyer's expenses. We only accept the returned goods with full packaging materials. When we receive your returned item, we will investigate the situation and consider to offer replacement or refund according to the situation Contact Us Please feel free to contact us through ebay message if you have any concern on the item. We will reply all your messages in 24 hours, please click the link below: http://contact.ebay.com/ws/eBayISAPI.dll?ContactUserNextGen&&recipient=soho.century&guest=1 About Us We are professional online trader with excellent customer services. Our team is working everyday to communicate with our customers and to bring the latest products for your selection MESR-100 AutoRanging In Circuit ESR Capacitor Low Ohm Meter 0.001 to 100R MESR-100 V2 Auto-ranging capacitor ESR and Low Ohm Meter Measuring range from 0.001 to 100.0R, support IN CIRCUIT Testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. In the market, there is some technique using short pulse method to testing, but the value will be varying vs the capacitance and sometimes reading is different from the manufacturer's value. What is ESR of capacitor? There is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C), the impedance become small, and we can then measure the true series resistor value. A bad E-capacitor will have larger ESR and create large ripple rather than filtering noise. Normally, a big capacitor is larger than 3 ohm. Using this theory, we can measure the capacitor is bad/ damaged or good in condition. Because our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. Because this low testing voltage, it cannot turn on the semiconductor inside a circuit under testing. During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. *Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check Compare MESR100 old V1 and new V2 Improvement: 1) Change square wave to sine wave 100 KHz, reduce square wave’s high frequency component, and affect the reading passing the test leads and capacitor. 2) Higher Resolution up to 0.001 ohm. 3) 128X64 dot matrix LCD, with more larger value display and information 4) Embedded 25V capacitor table at LCD, auto display the capacitor is good or bad reference to common 25V electrolytic capacitor. 5) New plastic case, curve design for hand carrying. New stand for 60 degree stand on desk. 6) Use 2X AA battery, more convenience and longer battery life than 9V battery. 7) Support external USB power, using standard micro-USB port. Specification: Range Accuracy (After Zero, tested with 1,10,100R resistor) Refresh Time (Manual Mode) *Auto mode take 0 to 2s more time depend on value 0.000 to 1.000R 1%+2Digit ~0.4s 1.000 to 10.00R 1%+1Digit ~0.4s 10.00 to 100.0R 2%+1Digit ~0.4s *Accuracy maybe affected by the test lead’s length and contact point resistance. Standard test leads is 15cm, for longer test leads need special shielding to affect the EMI inference (Can contact sales’ person for more detail) 1) Accuracy: Up to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz ) 2) High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range 3) Measuring voltage: <~40mV RMS (TESTING VOLTAGE) 4) Clamping voltage: ~0.15V (open voltage) 5) Battery 2X AA 1.5V battery 6) External Power: 5V micro USB 7) Operating current 0.02A 8) Battery Life time: >80 Hours Operating Introduction: 1) POWER ON Press and hold the ON/ OFF circle orange button for 2 to 3 second to power on. Press and release the ON/ OFF button to shut down meter. 2) AUTO/ MANUAL mode: i) Auto Range: Press and release the RANGE button and at the first line of LCD will show “AUTO:" At auto mode meter will automatically select the best range to detect. ii) Manual Range: Scroll the manual range from 1R, 10R and 100R range by press and release the RANGE button In LCD will show MANUAL at first LCD line and show at second line: 0-1R, 1-10R and 10-100R. 3) 1 Key Zero: Short circuit the test leads’ terminal, cancelling the wire resistance. Press and release the “ZERO" button, LCD shows “ZERO" and wait the zero disappear. If you are using the meter array socket, you need to use a short pin to short circuit to set zero. 4) Backlight: LCD backlight will on during power on 5) Auto Sleep: Around 10 hours for not testing, it will shut down automatically to save power. 6) OVERFLOW or OL: Display overflow when the value is out of range, you can check that you are zero correctly. 7) ESR TABLE: It is for reference only, different manufacturer of capacitor has different ESR, better to test a good cap ESR and compare with what you are testing, usually bad cap with higher ESR few times larger than good one. 8) SOFTWARE ESR: Put the 25V Electrolytic capacitor value to LCD, and compare, GOOD if C < XXuF, means the capacitor maybe good condition if it is less than XXuF 9) PLASTIC STAND: If you don’t use the stand, press and push the lock position. Package includes 1 x MESR-100 meter 1 pair test probe 2 x AA batteries Shipping Terns Payment Returns policy Contact Us About Us We will ship to worldwide. The following is the approximate shipping time to different region Estimated Delivery Time US (Eastern) USPS Priority Mail 3 - 6 business days US (Western) USPS Priority Mail 4 - 7 business days Other Countries (will be Delivered from other stock location) Registered Air Mail 2 - 4 weeks depends on destination All items will be sent with tracking number. We will ship the item according to the address on your eBay profile. No combine shipping discount and no local pickup service. Please make sure that you agree with our terms before bidding. Item will be dispatched within 24 hours after we have received your payment. Parcel should arrive within the time estimated above . Please understand it may delivered within the reference time. We accept PayPal payment or bank notes through registered mail. Payment must be fulfilled within 7 days after auction's ended. For DOA (Defective on Arrival) item, please notify us for shipping instructions. Then, please send it back within 7 days upon date of receipt. Return shipping costs will be at buyer's expenses. We only accept the returned goods with full packaging materials. When we receive your returned item, we will investigate the situation and consider to offer replacement or refund according to the situation Please feel free to contact us through ebay message if you have any concern on the item. We will reply all your messages in 24 hours, please click the link below: http://contact.ebay.com/ws/eBayISAPI.dll?ContactUserNextGen&&recipient=soho.century&guest=1 We are professional online trader with excellent customer services. Our team is working everyday to communicate with our customers and to bring the latest products for your selection . Search Hot Item 3 in 1 Vegetable Fruit Spiral Mandolin Slicer Potato Cutter Shredder Food Turner USD 41.99 Digital Probe Indicator Dial Test Gauge 12.7/.01mm 0.5" USD 38.49 Solar Auto-darkening Grinding Flame LCD Welding Welder Helmet Mask ARC TIG USD 54.99 Remote Flip Folding Key FOB Shell Case Cover For Audi A2 A3 A4 A6 A6L A8 TT 3BT USD 16.49 USB-MPI S7 200/300/400 PC PLC Adapter SIEMENS Simatic USB Programming Cable USD 60.99 New List Item Dog Training Practice Weave Poles Agility Post Set USD 59.99 2xEVA Grid Foam Roller Physio Pilates Yoga Gym Exercise Trigger Point 33cm USD 57.99 MS6813 Network Cable Tester Telephone Line Detector Tracker RJ45 RJ11 COAX T568A USD 47.99 Pet Soft Crate Portable Dog Cat Carrier Travel Cage Kennel Folding Large USD 49.99 MS8910 Tweezers Smart SMD RC Resistance Capacitance Diode Meter Tester Auto Scan USD 35.99 Hunting Camping Camo Military Camouflage Army Woodland Jungle Leaves Net USD 51.99 6 Motor Massage Seat Pad Cushion Car Massager Chair USD 61.99 Dispenser Coffee Dolce Gusto Capsules Dispensing Tower Stand Pods Holder Rack USD 69.99 New Carpet Floor Office Computer Work Chair Mat Vinyl 80x80 cm USD 51.99 C1 ULTRALIGHT BACKPACKING, HIKING, MOTORCYCLE, CYCLING, CAMPING USD 66.99 Digital VHF UHF Power & SWR Meter for FT-8800R Radio RED DOT 1050A 100~500mhz USD 67.99 Silver SLEEVE Wine Bottle Chiller Cooler for Red Rose White Wines Picnic USD 33.99 12 x Mystical Fire Coloured Flame Magic Colour Changing Fire Log Burner Bonfire USD 24.99 Set of 4 Silicone PushUp Ice Pop Cream Jelly Lolly For Maker Mould Mold Callippo USD 17.99 BN Black Magic Magnetic Door Fly Screen Mosquito Bug Mesh Curtain USD 20.99 3 in 1 Foam Roller yoga running exercise gym stretching USD 59.99 300Mbps 2.4GHz In wall Wireless AP Router Support 48V PoE VLAN USD 43.99 Pet Dog Steps Ladder Soft Plush Doggy Stairs Washable Cover Portable Ramp USD 59.99 Knitting Umbrella Swift Yarn Winder Holder for hanks/skeins NEW USD 26.49 CE Certificate ESC/POS 58MM USB Thermal Receipt Printer w/ Roll Paper Black USD 55.99 Photo Frame New Baby Footprint Foot or Hand Print Cast Set Kit Christening Gift USD 34.99 New Portable MONOPOD Tripod Unipod Holder for Digital Camera DSLR with Carry Bag USD 35.99 7.5L Water Tap Dispenser Cold Desktop Office Bedroom Camping Juice Drinks USD 29.99 Pet Bed Trampoline Dog Cat Puppy Hammock Canvas 60X45cm Small Size USD 51.99 QR Code Powered by SoldEazy Desktop Mobile Buy Watch
