Mini Lathe 7x10 7x12 7x14 Sieg Asian X Axis Cnc Mount Uses Nema 23 Stepper

US $35.00

  • South Bend, Indiana, United States
  • Jan 30th
Open on mobile:
QR code

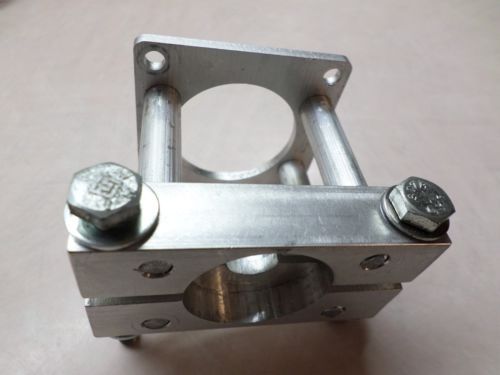

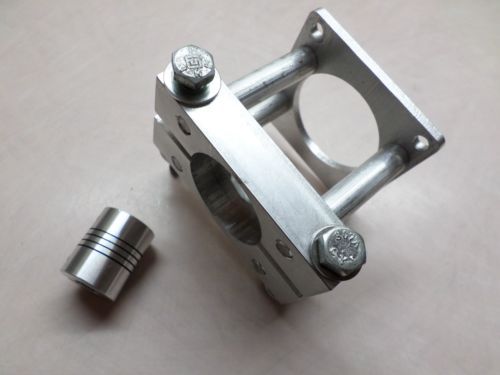

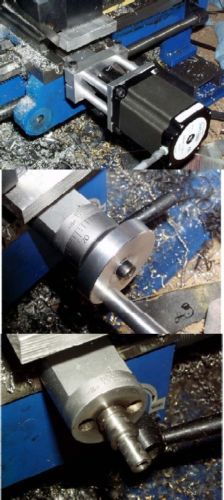

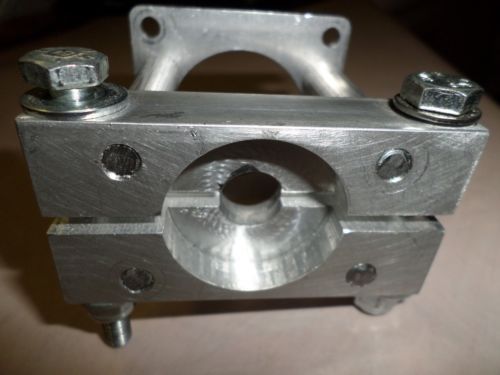

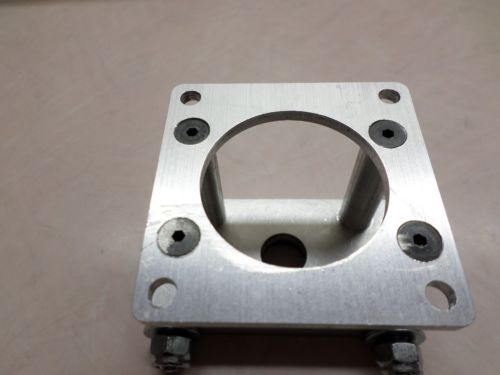

    This is a cnc nema 23 stepper mount I made for the X axis on my 7x10 HF mini lathe,it uses the stock lead screw and mounts to the thimble by compression. I have about 6 hours of manual labor into machining it, it's not perfect but worked great. I have since upgraded to a ball screw setup and don't need this,if you are CNC ing your mini lathe and want a quick and easy X axis mount here is your chance to save you a day of machining your own. I am including the shaft coupler,look at the pics,the last pic is an example of it mounted on a mini lathe,its only for reference purposes. This should fit all the Asian mini lathes 7x10 7x12 7x14 as long as your thimble diameter is around 1.297 and your handle shaft is 8mm. This will ship to the USA lower 48 states only. Any questions? Please ask                            Thanks for looking
