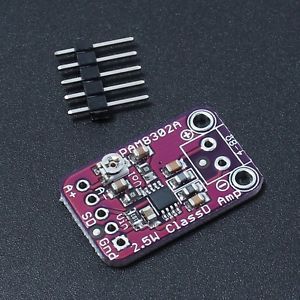

Mono Amplifier Module Development Board PAM8302 2.5W D-Class Audio Power, US $79 – Picture 0

Mono Amplifier Module Development Board PAM8302 2.5W D-Class Audio Power, US $79 – Picture 1

Mono Amplifier Module Development Board Pam8302 2.5w D-class Audio Power

US $79

shenzhen, China
Oct 25th

Open on mobile:
QR code

New Arrivals Modules Home Gadgets Fishing Outdoor Product Picture Galler Power Modules Sensors Module Function Modules Development boards Wireless Modules DIY LED Boards LCD Modules Description Mono Amplifier Module Development Board PAM8302 2.5W D-Class Audio Power Product Introduction; This super small mono amplifier is able to deliver up to 2.5 Watts into 4-8 ohm impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0V-5.5VDC. It has built in thermal and over-current protection but we could barely tell it got hot. There's even a volume trim pot so you can adjust the volume on the board down from the default 24dB gain. The A+ and A- inputs of the amplifier go through 1.0uF capacitors, so they are fully 'differential' - if you don't have differential outputs, simply tie the Audio- pin to ground. The output is "Bridge Tied" - that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then 'averaged out' by the speaker coil - the high frequencies are not heard. Speaker is not included, use any 4 ohm or greater impedance speaker. Parameters: 1.Output Power: 2.5W at 4?, 10% THD, 1.5W at 8?, 10% THD, with 5.5V Supply 2.50dB PSRR at 1KHz 3.Filterless design, with ferrite bead + capacitors on output. 4.Fixed 24dB gain, onboard trim potentiometer for adjusting input volume. 5.Thermal and short-circuit/over-current protection 6.Low current draw: 4mA quiescent and 1uA in shutdown mode Shipping Payment Return Gurantee About us 1. Items are only shipped after PAYMENT confirmed. 2. Please check out your Paypal ADDRESS carefully when processing order. 3. Please CONTACT us ASAP if you haven't received the package in 35 days. 4. If you don't receive the parcel in 45 days, please allow us 3-5 working days for checking undelivered parcels before we issue you refund. 1. We only accept Paypal payment if you buy on ebay. 2. Please make sure you notice the entire desciption and agree to the transaction before buying. 1. If for some reason you're not satisfied with our service or product quality, please contact us within 3 days after you get the package, you can return the products to us in 30 days and we will refund your money after we get the package!(Shipping cost is NOT refundable and you should responsible for the return shipping) 2. Although we test each item and they are packed professionally, few item(less than 0.1%) might be damaged during the shipping. You are welcome to contact us within 3 days after you receive your package about replacement. 3. Repair Some items might be broken caused by improper use, we are always happy to offer any helpful repair service. Of course, you can send the broken items back to us and we will help you resolve the situation and charge reasonable repair fees. 1.We Can promise to offer you the refund or replacement if you can not get packages on the normal delivery time. 2.If there is any problems with the item when you get it, please send us the ebay message for solution; Or you can return the item to us in 30 days. In our ebay shop, we mainly sell electronics, outdoor finishing accessoires, and all Funny Sorts. We can als offer wholesale service. inkfrog terapeak inkFrog Analytics
