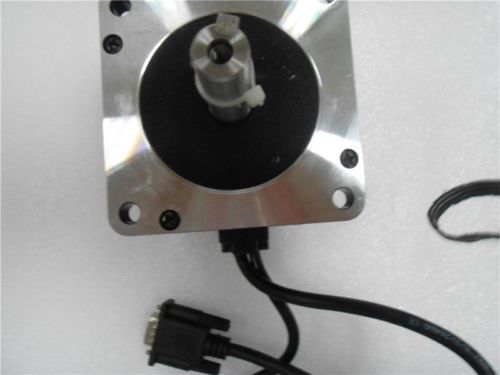

NEMA34 571ozin 4NMSteppermotorClosed-LoopDrive 86HS40-EC-1000+HBS86H DHLFREESHIP, US $274.00 – Picture 0

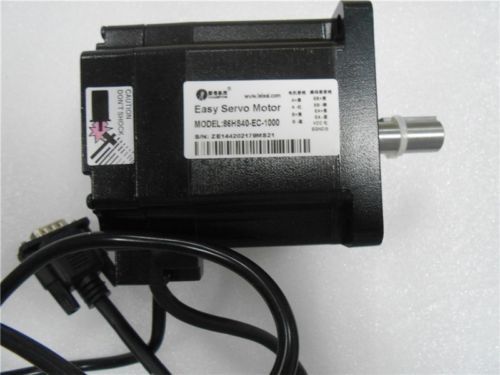

NEMA34 571ozin 4NMSteppermotorClosed-LoopDrive 86HS40-EC-1000+HBS86H DHLFREESHIP, US $274.00 – Picture 1

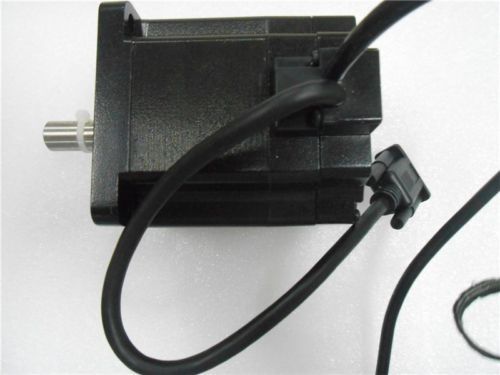

NEMA34 571ozin 4NMSteppermotorClosed-LoopDrive 86HS40-EC-1000+HBS86H DHLFREESHIP, US $274.00 – Picture 2

NEMA34 571ozin 4NMSteppermotorClosed-LoopDrive 86HS40-EC-1000+HBS86H DHLFREESHIP, US $274.00 – Picture 3

NEMA34 571ozin 4NMSteppermotorClosed-LoopDrive 86HS40-EC-1000+HBS86H DHLFREESHIP, US $274.00 – Picture 4

Nema34 571ozin 4nmsteppermotorclosed-loopdrive 86hs40-ec-1000+hbs86h Dhlfreeship

US $274.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

Leadshine NEMA34 86mm 571ozin 4.0NM 30-100VDC 2phase Stepper motor DSP Closed-Loop Drive kits 86HS40-EC-1000+HBS86H HBS86H+86HS40-EC-1000 Hybrid Servo Drive HBS86H Descriptions The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 2-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system. Electrical Specifications Parameter Min Typical Max Unit Input Voltage 30 36 100 VDC Output Current 0 - 8.0(Peak) A Pulse Input Frequency 0 - 200 kHz Logic Signal Current 7 10 16 mA Isolation Resistance 500 - - M? Applications The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping. Hybrid Servo Motor 86HS40-EC-1000 Genneral Introduction Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges. Eletric Phase Series Step Angle Models NEMA FRAME Current(A) Holding Torque Weight(kg) Motor length Two phase 86HS 1.8 degree 86HS40-EC-1000 34 86 5.5A 4.0N.M/571 oz-in -- -- HBS86H Dimension

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Leadshine
MPN	86HS40-EC-1000+HBS86H
Model	86HS40-EC-1000+HBS86H
Country/Region of Manufacture	China
