New Arm Dso201 Nano Mini Portable Handheld Pocket-sized Digital Oscilloscope

US $67.99

Hayward, California, United States
Jun 9th

Open on mobile:
QR code

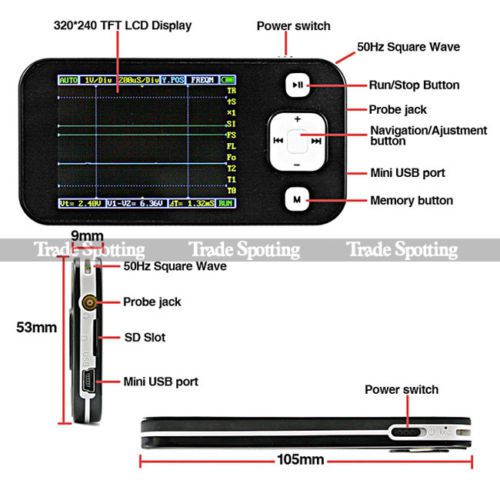

Mini Pocket-Sized Handheld Digital Storage Oscilloscope ARM Nano DSO201 Ship from USA warehouse in 2 business days DESCRIPTION DS0201 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is based on ARMCortex™-M3 compatible 32 bit platform, equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries. Weighs only 60g! Portable Digital Oscilloscope DIY Kit provides waveform viewing, pocket size and over 2 hours battery operation. FEATURE - DSO NANO Hardware 1.6 + Paul's Firmware V3.22A - Super portable and lightweight - 2.8” color 320*240 display - Basic 1Msps sample rate with 12bit resolution - Various measurement markers - Various trigger mode - Build-in test signal - USB chargeable battery - Open source - 700Mah 3.7V chargeable Lithium Battery, over 2.5 Hours battery lasting STANDARD ACCESSORIES 1x DS0201 Digital Oscilloscope Device (3.7V Li_Battery(ATL) mounted) 1x Probe (x1/x10) 1x Mini USB Cable 1x User Manual 1x FREE Flannel Carrying bag SPECIFICATION Display 2.8? Color TFT LCD Display Resolution 320x240 Display Color 65K Analog bandwidth 0 - 1MHz Max sample rate 1Msps 12Bits Sample memory depth 4096 Point Horizontal sensitivity 1uS/Div~10S/Div (1-2-5 Step) Horizontal position adjustable with indicator Vertical sensitivity 10mV/Div~10V/Div (with x1 probe) 0.5V/Div~10V/Div (with x10 probe) Vertical position Adjustable with indicator Input impedance >500K? Max input voltage 80Vpp (by x1 probe) Coupling DC Trig modes Auto, Norma, Single, None and Scan Functionalities Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage Precise vertical measurement with markers Precise horizontal measurement with markers Rising/falling edge trigger Trig level adjustable with indicator Trig sensitivity adjustable with indicator Hold/run feature Test signal Built-in 10Hz~1MHz (1-2-5 Step) Waveform storage SD card PC connection via USB As SD card reader Upgrade By bootloader via USB Power supply 3.7V Chargeable Lithium battery / USB Dimension (w/o probe) 105mm X 53mm X 8mm PC connection Mini USB B-Type Payment: Please use Paypal for the payment. Shipping: The item will be shipped out in 1~3 business days after payment cleared We’ll notify you the order status and shipping info, the time shipped, the tracking number and the tracking website once it’s been shipped. If you don’t receive the email from us (thru eBay), please check your spam folder. Please contact your local post office for missing or damaged package. We ship USPS, UPS or Fedex depending on the item. Feedback: Once we receive positive feedback from you we will do the same for you. We want to be sure you are 100% satisfied with your purchase. Please contact us if there are any questions or concerns about your purchase first. Return: We offer a 14 days money back guarantee. Please contact us through ebay email before returning any items. 1. We don’t provide return label. 2. Please make sure item and its packing in good condition, and can be sold in the future. There is no marks on the item, not alternated. Return items should include the original packaging and accessories. Otherwise, we feel sorry that we could not be able to return full payment. 3. Please put a paper in the package, on which your ID number, purchase date and reasons for return should be marked. 4. Buyers are responsible for the return shipping costs under any circumstances.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Nano
MPN	DSO201
Type	Digital
