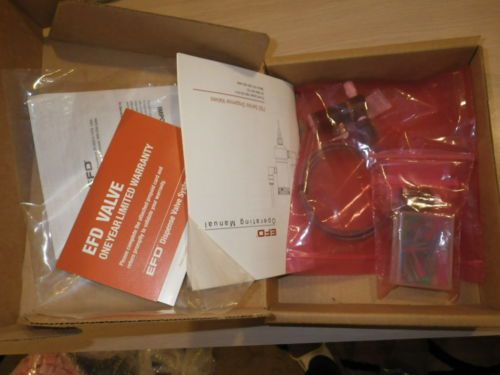

NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 0

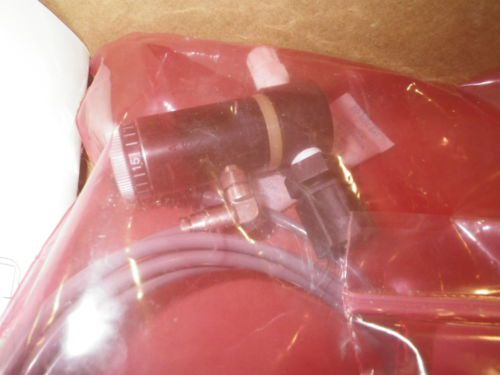

NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 1

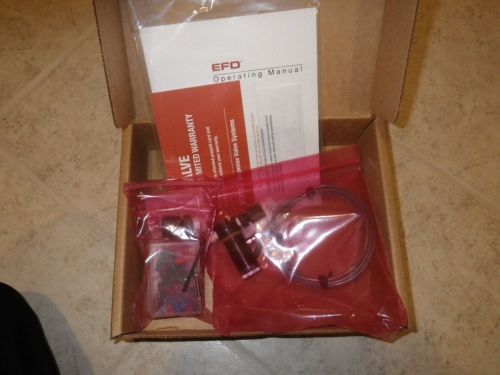

NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 2
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 3
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 4
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 5
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 0
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 1
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 2
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 3
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 4
NEW EFD 751V NEEDLE TYPE DISPENSE VALVE EFD 751V brand new in BOX, US $250.00 – Picture 5

New Efd 751v Needle Type Dispense Valve Efd 751v Brand New In Box

US $250.00

  • Chicago, Illinois, United States
  • Feb 27th
Open on mobile:
QR code
FOR SALE USA MADE EFD 751V LIQUID DISPENSING VALVE ITEM IS BRAND NEW IN BOX The 750V Series wetted components are inert plastics. All 750V Series use the same actuating assembly and diaphragm. Each valve can be calibrated with the stroke reference knob for process control. Valve head style differs according to the model; The 752V Series valve heads are constructed with the outlet at the end of the valve head. The 750V and 751V valve heads are constructed with the outlet on the side of the valve head. 752V-UHSS Size: 79.5 mm x 26.9 mm diameter (3.13" x 1.06") Weight: 173.6 grams (6.12 oz) 752V-SS Size: 79.5 mm x 26.9 mm diameter (3.13" x 1.06") Weight: 181.4 grams (6.4 oz) 752V Size: 79.5 mm x 26.9 mm diameter (3.13" x 1.06") Weight: 105 grams (3.7 oz) Actuating air pressure required: 70 psi (4.8 bar) Maximum fluid pressure: 70 psi (4.8 bar) Fluid inlet thread: 1/8 NPT female Fluid outlet thread: 1/4-28 UNF Mounting: (1) 10-32 UNF tapped hole Cycle rate: Exceeds 500 per minute Air cylinder body: 752V-UHSS: Type 303 stainless steel 752V-SS: Type 303 stainless steel 752V: Hard-coated aluminum Fluid body: UHMW* polyethylene, FDA approved Fluid body options: Acetal, 303 stainless steel, Teflon® Piston and piston rod: Type 303 stainless steel Tip adapter: Polypropylene Diaphragm: UHMW* polyethylene, FDA approved Diaphragm option: Teflon® Wetted parts: Fluid body, diaphragm, tip adapte INCLUDED IN THIS AUCTION: EFD 751V VALVE INLET FITTING P# 7610BP – SPARE DISPENSING VALVE TIP KIT P#7500TK OWNER MANUAL MORE THAN ONE AVAILABLE ITEM IS BRAND NEW IN BOX AND SOLD AS IS GUARANTED TO BE AS DESCRIBED RETURNS FOR DOA BUYER WILL PAY FIXED $20.00 FOR SHIPPING AND HANDLING ITEM WILL BE SHIPPED WITHIN CONTINENTAL USA NEXT DAY UPON PAYMENT. PAYPAL ONLY THIS IS NO RESERVE LISTING
Condition:
New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...
Brand EFD
MPN 751V
Model 751V
