# New Ua6013l Digital Auto Range Capacitor Capacitance Tester Meter

US $11.43

Hong Kong, Hong Kong
Apr 24th

Open on mobile:
QR code

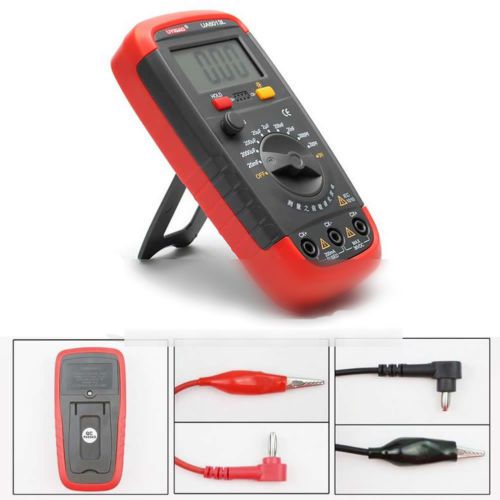

.: # New UA6013L Digital Auto Range Capacitor Capacitance Tester Meter :. Click to Enlarge Click to Enlarge Click to Enlarge 100% brand new and high quality Color: As the picture shows General description 6013L type digital capacitance meter is pocket, convenient operation, accurate numerical reading, low-consumption, driven by battery, and showing numbers in a big LCD. Being accurate in measuring, it covers 9 measuring sections, a wide rang from 0.1pF to 20,000μF. It can be used in testing error testing, numerical analysis, selecting capacitance, measuring unknown capacitance, matching capacitance, and measuring the capacitance of cable, switch and printing electrocircuit. Panel Layout (1)LCD Display (2)Data-hold Switch (HOLD) (3)Cx+?Cx- Input Jack (4)Back Light Button Switch (5)Rotary Switch: use this switch to select functions and ranges (6)Cx+?Cx- Input Jack Features 1. It is applied with CMOS double-bevel A/D convertor that is automatic in zeroing and polar selection, and makes instruction for beyond measuring range. 2. Wide measuring range, covering 9 measuring sections from 0.1pF to 20,000μF that includes nominal value of any capacitance. 3. Biggest display value: 1999(3 1/2). 4. Reading: 2-3 readings/sec. 5.Zeroing: There is a zeroing knob on the front, easy for operation. 6. Data hold: Put the “HOLD” switch to "ON" and the DH sign will appear on the display. 7. Press “” button , the back light will light. 8. Temperature for accurate measuring: 25°C±5°C 9. Temperature range: working temperature: 0°C to 40°C Storage temperature: -10°C to 50°C 10. Relative humidity: <80% 11. Power: a 9V laminated battery 12. Instruction for low voltage of battery: showing“” signal on the left-upper of the LCD. Technical specifications Accuracy: ±(%reading±digits) Quality guarantee: one year Environment temperature: 25°C±5°C Relative humidity: <80% Rang Accuracy Definition Testing frequency 200pF ±0.5%±20digit 0.1pF 800Hz 2nF ±0.5%±20digit 1pF 800Hz 20nF ±0.5%±20digit 10pF 800Hz 200nF ±0.5%±20digit 0.1μF 800Hz 2μF ±0.5%±20digit 1nF 800Hz 20μF ±0.5%±20digit 10nF 80Hz 200μF ±0.5%±20digit 0.1μF 8Hz 2000μF ±2.0%±20digit 1μF 8Hz 20000μF ±4.0%±20digit 10μF 8Hz Operation Firstly, check a 9V battery whether its electric voltage is short that will show “” signal on the left-upper of the LCD. Secondly, pay attention to the polarity or the capacitance to be tested. Thirdly, recharge the capacitance before measuring. 1. Select proper measuring section according to the capacitance to be tested. 2. Check and use the zeroing knob on the front of the meter to adjust the value to zero before measuring. 3. Insert the black sensor into the jack with “-”signal and the red sensor into the jack with “+”. 4. Connect the capacitance to be tested with the two sensors. Pay attention to the polarity of the capacitance ! Read capacitance numerical value displayed. Notes a. If you don’t know the approximate value of a capacitance, you should select measuring section of 200nF and then make relevant adjusting according to practical situation. b. If the capacitance is in short circuit, the meter shows “beyond measuring range ”. If the capacitance is in electric leakage, the meter shows “beyond measuring range ”or “much bigger than the normal value ”. If the capacitance is open-circuit, the meter shows “Zero ”or “several pF ”. c. In testing small capacitance, directly insert the capacitance into the jack instead of using the sensors for better accuracy. Maintenance The meter is of highly accurate electronic apparatus. Don’t change its internal circuit rashly for no damage to the meter. 1. Don’t exert electric voltage upon the jack parts of the meter for no damage to the meter. 2. Don’t test the sensors in short circuit , or the battery will be consumed out quickly. 3. Don’t use a meter whose back cover doesn’t cover the meter well. 4. Always replace battery and fuse after taking sensors out of a meter that is switched off. First, screw bolts in the back cover out. Second, take off the back cover. Third, replace battery and fuse according to specification provisioned in the operation manual. Suitable fuse for this meter is 200mA/250V, which external dimension is φ5×20mm. 5. Please take out the battery when not using for a long time. Power Supply: 9V battery (not included) Size: As the picture shows Quantity:1 Pc Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 X Capacitance Tester 2 X probes 1 X User manual About Shipping: Delivery Time: Ship Order by HongKong Air Post, Usually Need about25-35 Business day. Delivery time depend on your country’s custom process speed. Due to variation of postal service in different areas, some areas may take a little longer. International Buyers. Please Note: Import duties. taxes and chargers are not included in the item price or shipping cost. Please check with your country’s customs office to determine what additional cost will be prior to bidding or buying. Contact Us: If you received an incorrect, damaged, defective, or item not as described, please contact us, we will be pleased if you can offer a photo to us through ebay message. Feel Free to Contact us with any questions or concerns via eBay "Contact Seller" button ,we will reply in 1-2 business day. About Payment: We accepted Paypal only.Please pay as soon as possible, we will keep order for 7 days. A non-payment dispute will be opened if the full payment is not received after 7 days of the auction. DO NOT DUPLICATE OR COPY! Template Made By: © Inkfrog Template Center Auction Templates, Logos, Store fronts and more! inkfrog terapeak

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Not Applicable
Country/Region of Manufacture	China
MPN	Not Applicable
