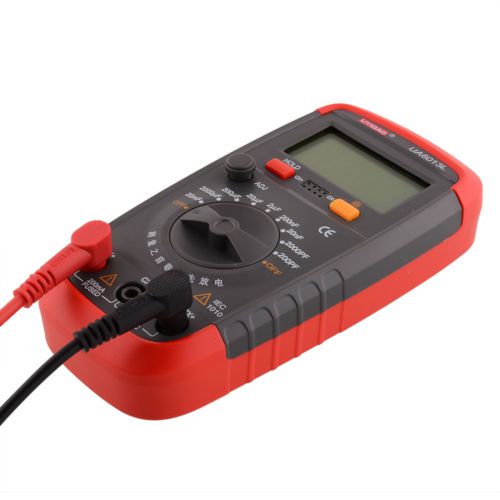

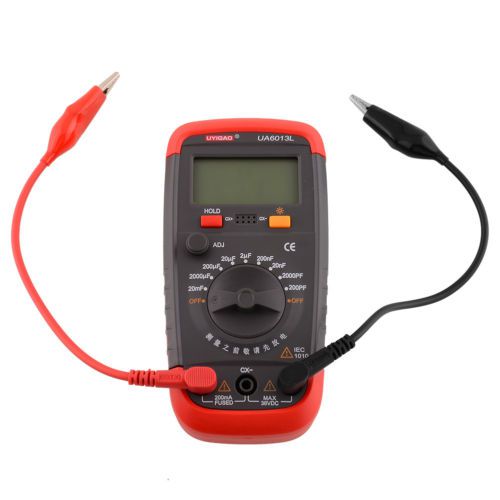

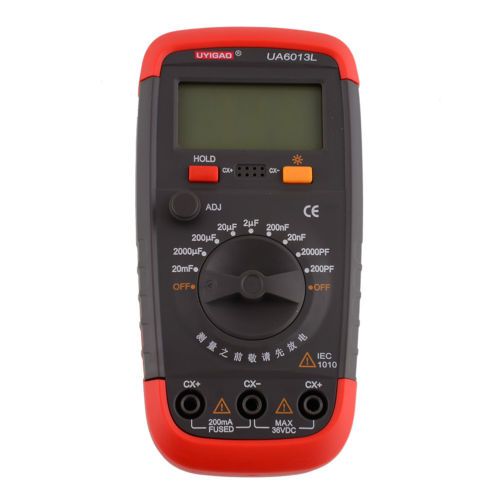

Product Description Shipping Payment Return Policy&Feedback Contact Us 100% brand new and high quality Color: As the picture shows General description 6013L type digital capacitance meter is pocket, convenient operation, accurate numerical reading, low-consumption, driven by battery, and showing numbers in a big LCD. Being accurate in measuring, it covers 9 measuring sections, a wide rang from 0.1pF to 20,000?F. It can be used in testing error testing, numerical analysis, selecting capacitance, measuring unknown capacitance, matching capacitance, and measuring the capacitance of cable, switch and printing electrocircuit. Panel Layout (1)LCD Display (2)Data-hold Switch (HOLD) (3)Cx+?Cx- Input Jack (4)Back Light Button Switch (5)Rotary Switch: use this switch to select functions and ranges (6)Cx+?Cx- Input Jack Features 1. It is applied with CMOS double-bevel A/D convertor that is automatic in zeroing and polar selection, and makes instruction for beyond measuring range. 2. Wide measuring range, covering 9 measuring sections from 0.1pF to 20,000?F that includes nominal value of any capacitance. 3. Biggest display value: 1999(3 1/2). 4. Reading: 2-3 readings/sec. 5.Zeroing: There is a zeroing knob on the front, easy for operation. 6. Data hold: Put the “HOLD” switch to "ON" and the DH sign will appear on the display. 7. Press “” button , the back light will light. 8. Temperature for accurate measuring: 25°C±5°C 9. Temperature range: working temperature: 0°C to 40°C Storage temperature: -10°C to 50°C 10. Relative humidity: <80% 11. Power: a 9V laminated battery 12. Instruction for low voltage of battery: showing“” signal on the left-upper of the LCD. Technical specifications Accuracy: ±(%reading±digits) Quality guarantee: one year Environment temperature: 25°C±5°C Relative humidity: <80% Rang Accuracy Definition Testing frequency 200pF ±0.5%±20digit 0.1pF 800Hz 2nF ±0.5%±20digit 1pF 800Hz 20nF ±0.5%±20digit 10pF 800Hz 200nF ±0.5%±20digit 0.1?F 800Hz 2?F ±0.5%±20digit 1nF 800Hz 20?F ±0.5%±20digit 10nF 80Hz 200?F ±0.5%±20digit 0.1?F 8Hz 2000?F ±2.0%±20digit 1?F 8Hz 20000?F ±4.0%±20digit 10?F 8Hz Operation Firstly, check a 9V battery whether its electric voltage is short that will show “” signal on the left-upper of the LCD. Secondly, pay attention to the polarity or the capacitance to be tested. Thirdly, recharge the capacitance before measuring. 1. Select proper measuring section according to the capacitance to be tested. 2. Check and use the zeroing knob on the front of the meter to adjust the value to zero before measuring. 3. Insert the black sensor into the jack with “-”signal and the red sensor into the jack with “+”. 4. Connect the capacitance to be tested with the two sensors. Pay attention to the polarity of the capacitance ! Read capacitance numerical value displayed. Notes a. If you don’t know the approximate value of a capacitance, you should select measuring section of 200nF and then make relevant adjusting according to practical situation. b. If the capacitance is in short circuit, the meter shows “beyond measuring range ”. If the capacitance is in electric leakage, the meter shows “beyond measuring range ”or “much bigger than the normal value ”. If the capacitance is open-circuit, the meter shows “Zero ”or “several pF ”. c. In testing small capacitance, directly insert the capacitance into the jack instead of using the sensors for better accuracy. Maintenance The meter is of highly accurate electronic apparatus. Don’t change its internal circuit rashly for no damage to the meter. 1. Don’t exert electric voltage upon the jack parts of the meter for no damage to the meter. 2. Don’t test the sensors in short circuit , or the battery will be consumed out quickly. 3. Don’t use a meter whose back cover doesn’t cover the meter well. 4. Always replace battery and fuse after taking sensors out of a meter that is switched off. First, screw bolts in the back cover out. Second, take off the back cover. Third, replace battery and fuse according to specification provisioned in the operation manual. Suitable fuse for this meter is 200mA/250V, which external dimension is ?5x20mm. 5. Please take out the battery when not using for a long time. Power Supply: 9V battery (not included) Size: As the picture shows Quantity:1 Pc Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package Including: 1 X Capacitance Tester 2 X probes 1 X User manual Shipping All items will be shipped within 24-48 working hours upon receipt of payment. In most cases, delivery takes around 15-25 business days, it's highly depended on the efficiency of the shpping carrier. If your item doesn't arrive on time, please contact us immediately for further assistance. Payment We only accept payment through Paypal. Please make sure you have a valid PayPal account prior bidding. Return Policy&Feedback If any item is defective upon receipt, please contact us for the return address, return is accepted within 14 days after the buyer receiving the item. Returned item has to be in its original condition. Buyer is responsible for return shipping costs. After receiving the return we will make a replacement depends on our available stock, if not available, a refund will be issued. Dear buyers, we appreciate your business, if you are satisfied with our service, please leave us a positive feedback and rate the details of the transaction (Detailed Seller Ratings) with a "PERFECT 5 STARS".Your recognition will make us more confident to develop business and serve you better. Our goal is to make sure you are a happy buyer and pleasant shopping with us. Please email us before leaving any 1 or 2 ratings, negative feedback or open any dispute. We understand the concerns and frustrations you might have, and will do our endeavor to resolve the issues. Please give us the opportunity to resolve any problem. Contact Us We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply your email as soon as possible, please kindly allow 24 hours for us to response. Thank you.
