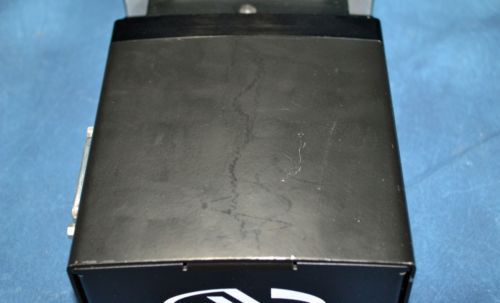

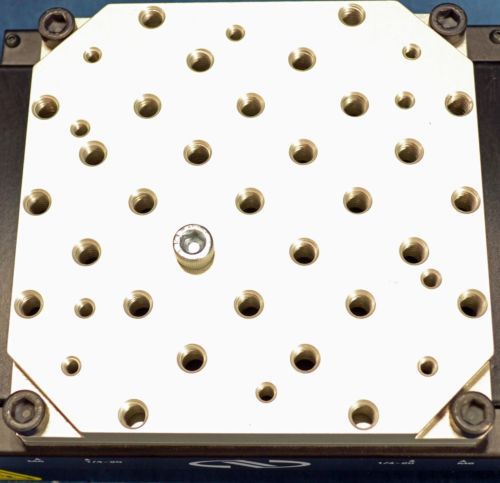

Newport Ils150cc Precision Motorized High Performance Linear Stage 150mm Travel

US $3,440.00

  • Saint Paul, Minnesota, United States
  • Jan 29th
Open on mobile:
QR code
NEWPORT ILS 150CC High-Performance Linear Stage 150 MM Travel DC Motor Metric Model ILS150CC Travel Range 150 mm Load Capacity 250 N Minimum Incremental Motion, Linear 1 µm On-Axis Accuracy 1 5 or ± 2.5 µm Bi-directional Repeatability 2 or ± 1 µm Uni-directional Repeatability, Guaranteed 1 µm Maximum Speed 100 mm/s Pitch 2 150 or ± 75 µrad Yaw 100 or ± 50 µrad Roll 100 or ± 50 µrad MTBF 20,000 h Normal Load Capacity (Cz) 250 N Axial Load Capacity (+Cx) 40 N Axial Load Capacity, Inverse (-Cx) 40 N Drive Screw Pitch 2 mm Origin Optical, at center of travel Motor UE404S2 Drive Mechanism Backlash-free ball screw Motor/Encoder Type DC servo motor Limit Switches Optical Thread Type 1/4-20 Weight 10.6 lb ( 4.8 kg) TERMS OF SALE $40 shipping to the Continental US $80 shipping cost to HI, PR, AK, and Canada  PayPal usually ships within 24 hours Thank you for your interest Please email me with any questions, comments, or concerns
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Shows little signs of wear.”
