Newport Rv120pe 120mm High Performance Precision Rotary Stage Stainless

US $2,750.00

Minneapolis, Minnesota, United States
Apr 25th

Open on mobile:
QR code

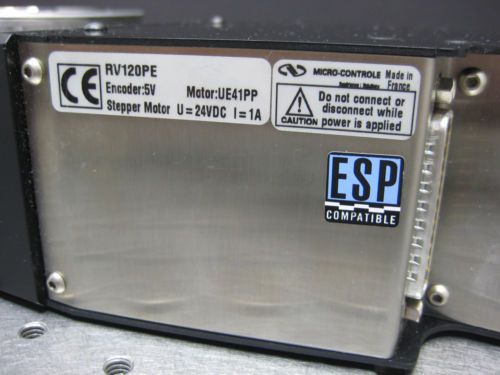

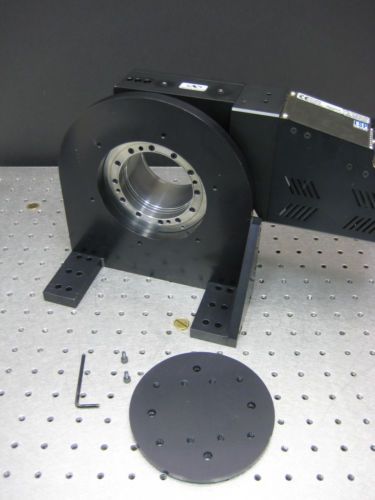

This auction is for a Newport RV120PE 120mm High Performace Precision Rotary Stage. This stage includes a horizontal mounting bracket, and small breadboard top. The stage is in excellent condition, and was minimally used. The stage is ESP compatable, and can be used with the motion control system I have for sale in a different auction. New price for this stage was over $6000. Please check out my other auctions for more ESP compatable stages. Thanks for looking! Buyer to pay shipping. The RV Series rotation stages provide high-precision angular positioning accuracy combined with high load capacity in a compact, annular design. We offer five stage sizes and seven drive configurations enabling a variety of operating conditions for optimizing load capacity, torque, speed, and resolution. All RV stages are constructed of tool steel with the rotation accuracy ensured by a double row of preloaded ball bearings on hardened surfaces. This allows for high off-center loads within a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance characteristics. The largest member of the RV product family can bear up to 650 kg or rotate up to 80°/second while maintaining eccentricity of less than 4 ?m. Precise rotation is ensured by a precision ground, hardened worm gear drive. A worm mounted rotary encoder provides 0.001° resolution position feedback on the standard configurations. For more demanding applications, the HAT and HAHLT options are available on the RV120 to RV350 models. These stages are equipped with a direct reading optical encoder attached to the moving platen for superior resolution and accuracy. Key Features • Precision 80–350 mm diameter rotation stages for high-speed and high load applications • Monolithic design with double row ball bearings ensures high structural stiffness • Flexible preloaded worm gear provides high reliability with 20,000 hours MTBF • Direct reading encoder versions offer better than 0.0001° (0.36 arc sec) resolution for superior sensitivity and repeatability Stepper Drive Versions Stepper motor-driven versions are available in 2 variations: • One mini-step drive version (PP) with 1/10-step per encoder count enabling high angular speed motions up to 20°/sec. • One full-step version (PE) equipped with an additional step-down gear in order to obtain higher torque values. This version causes no motor heating in static position, and maintains the position, when the power is switched off. It is the recommended motor option for operation in a vacuum. Resolution (°) Maximum Speed (°/s) PP PE RV80 to RV350 0.001 20 2

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Excellent Condition. Includes mounting bracket and breadboard top.”
