Nuequestrian Horse Barn With Hayloft - 4 Stall, 2 Porches

US $15,197.36

Sunnyside, Washington, United States
Jan 30th

Open on mobile:
QR code

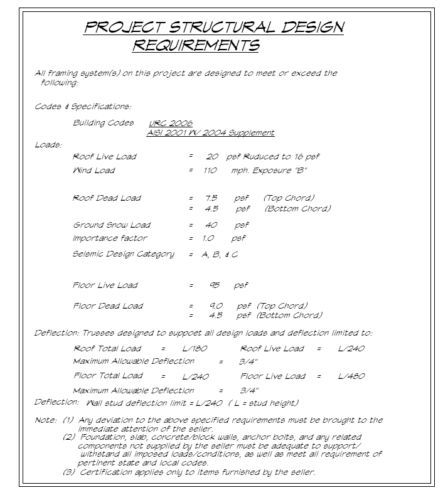

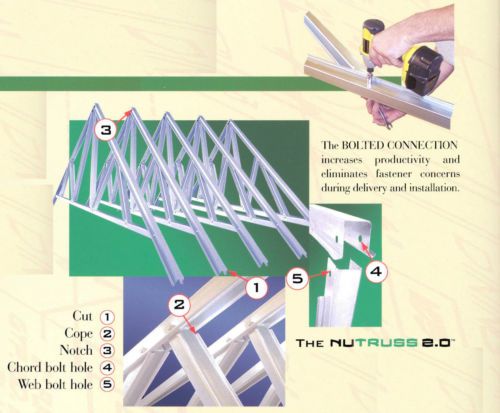

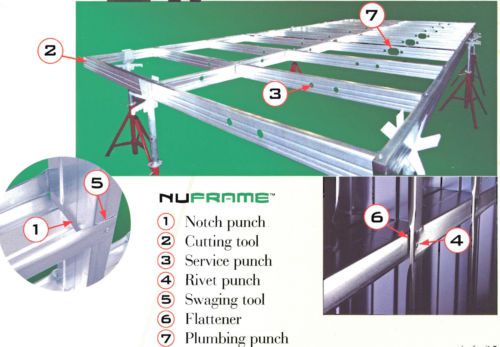

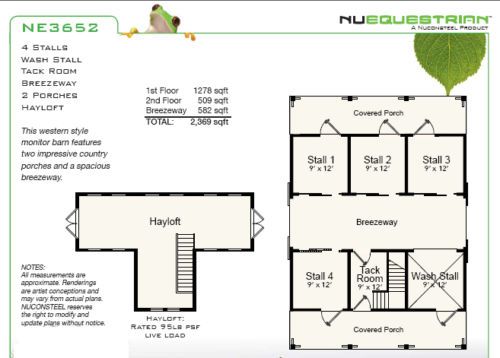

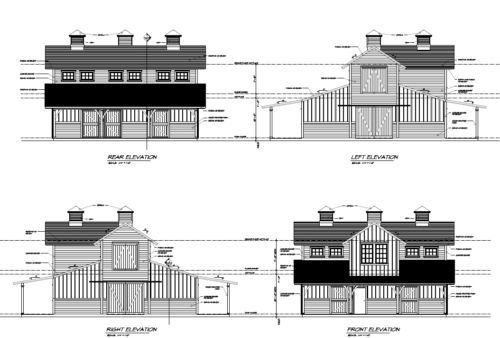

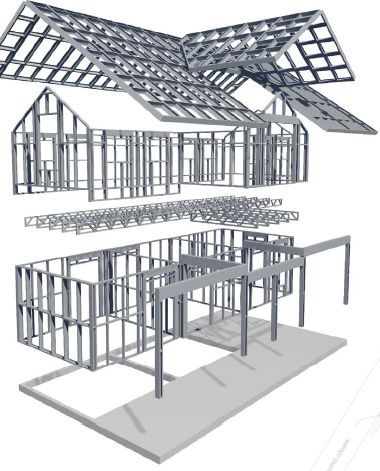

NE3652 4-Stall Horse Barn 4 Stalls Washstall Tack Room Hayloft 2 Porches Breezeway 1st Floor: 1278 sqft Hayloft: 509 sqft Porches: 582 sqft Total: 2369 sqft CSC Building Systems introduces NUEQUESTRIAN, horse barns. Designed with equestrian needs in mind, the NE3652 barn includes a hayloft, tack room, wash stall, and can accommodate 4 horses. NUEQUESTRIAN barns are designed with CSC Building System’s pre-engineered wall and roof framing systems and are fabricated with the NUFRAME and NUTRUSS systems, which cuts the fabrication process down to one fully integrated step. Designed with the qualities contractors demand, yet simple enough for the do-it-yourselfer, these pre-fabricated cold-formed steel framing packages are an easy, yet valuable, addition to any property. What is included in this CSC Building Systems, NuFrame and NuTruss frame kit? 1. Complete Architectural and Structural Drawings 2. Licensed Engineer’s structural certification of the drawings and design 3. Assembly drawings for the wall panels and trusses 4. NuFrame Galvanized Steel Stud wall framing studs and track including: a. Top and bottom tracks are part-marked, cut to length, and pre-punched for all stud and jam connections. b. Studs part-marked, pre-cut and pre punched for connection to track, blocking, bracing, and framed openings c. Blocking is part-marked, pre-cut and pre-punched for easy assembly between studs. d. Door jams and headers are part-marked, pre-cut and pre-punched e. Window jams, headers, and sills are part-marked, pre-cut and pre-punched f. Diagonal bracing (if required) is part-marked, pre-cut and pre-punched for required wall panels g. The walls are divided into 8’ to 12’ sections, part-marked and packaged individually for assembly and easy handling. h. An assembly diagram for each wall section identifying the location of each part-marked component in the section assembly. i. All rivets, self-drilling screws, and angle clips required for assembly of the building frame. 5. NuFrame Galvanized Steel Stud Roof framing (if used) a. Top and bottom tracks are part-marked, cut to length and pre-punched for all rafter connections. b. Rafters are part-marked, pre-cut and pre-punched for connection to track, blocking, bracing. c. Blocking is part-marked, pre-cut and pre-punched for easy assembly between rafters. d. The roof framing is divided into 8’ to 12’ sections, part-marked, and packaged individually for assembly and easy handling. e. An assembly diagram for each roof section identifying the location of each part-marked component in the section assembly. f. All rivets, self-drilling screws, and angle clips required for assembly of the building frame. 6. NuTruss Galvanized Roof Trusses (if used) a. Top and bottom chords are part-marked, cut to length, coped, notched, and punched for precision, bolted assembly. b. The web members are part-marked, cut to length, coped, notched, and punched for precession assembly. c. Each truss is individually packaged and part-marked. d. An assembly diagram for each truss identifying the location of each par-marked component in the section assembly. e. All bolts, nuts, attachment clip, self-drilling screws, and bracing required for assembly of the building frame. What do you provide? 1. Foundation or floor engineering and installation. 2. Anchor bolts 3. Wall sheeting and/or siding of your choosing 4. Roof sheeting and shingles or metal roofing of your choosing 5. Doors and windows. 6. Drywall fasteners for attaching wood sheeting to the frame 7. Other screws or fasteners that may be required to attach finishing components to the frame. 8. Trim and paint of your choosing. 9. An Excel Spreadsheet listing the types and quantities of finishing materials, that are supplied by the owner, is available free along with a PDF set of plans by calling 509 837 4650. CSC BUILDING SYSTEMS presents the NUPRODUCTS line which includes fully designed and pre-engineered standard model steel framing packages suited to fill any homeowner or entrepreneur’s needs. Your steel framed package includes wall panels and trusses, including window and door openings that are precision-cut and precision-punched for easy, self-squaring, field assembly. When building with steel, you receive a safer and stronger product that will not contribute fuel to the spread of fire and is termite resistant. All NUPRODUCTS lines are produced with our NUFRAME® and NUTRUSS 3.0® Automated Framing Systems which provide a total light gauge cold formed steel solution for panels and trusses. Explore our line of innovative lifestyle designs and find the perfect home, shed, garage, horse barn, and more. The Constructive Green Choice! Steel is Stronger • Safer • Smarter The strength to weight ratio of steel is the highest in the home building industry. This is a distinct advantage, especially when there are extreme demands on structural engineering, like the high winds coming off the gulf coast. The NUSHELTER suite of products combine state-of-the-art design, engineering and layout software with rock-solid steel profiles. CSC BUILDING SYSTEMS has performed all the extensive engineering required to simplify and minimize the amount of steel and labor needed to adequately frame each model and pass or exceed code requirements. With the extra wind load requirements of some areas in the Gulf Coast region these NUSHELTER homes come standard with either 110 mph or 150 mph wind loads . For more information on our NUPRODUCTS lines call 509-837-4650. Frequently Ask Questions: Q: Does the NUPRODUCT come complete as shown in the pictures? A: CSC BUILDING SYSTEMS provides a complete light gauge steel framing system that includes the precision-cut and precision-punched components for the wall panels, roof trusses, floor trusses (where applicable), clips, framing angles, and fasteners necessary to erect the light gauge steel frame for the model you select. The picture shown in the brochure is an architect’s rendering of what the house or building could look like using certain types of finish materials that are left up to the customers choosing Q: Can I erect the frame myself? A: Certainly you may erect the frame yourself. Many customers choose to do just that. However, many customers also choose to hire an experienced general contractor or framer to provide this service as well. The choice is up to you Q: Does it come with assembly instructions? A: Yes. Your purchase of any NUPRODUCT comes complete with the Architectural and Structural plans detailing assembly instructions, wall panel locations, truss layouts, and connection details necessary to complete the erection of your light gauge steel frame. Q: Do you provide the foundation plan for the NUPRODUCT? A: Due to varying local soil conditions and area building practices you will need to have a Professional Engineer familiar with your area design the foundation. CSC BUILDING SYSTEMS provides a building footprint found within the architectural plans that your Engineer may reference. Q: Will the NUPRODUCT pass my local building codes? A: CSC BUILDING SYSTEMS has designed and engineered the NUPRODUCTS lines to meet most local building code requirements around the United States. See the Where Can I Build link on each model page for a map of geographic design restrictions that will get you on your way to determining whether the NUPRODUCT model you have selected is designed to meet your areas requirements. Always check with your local building officials for the exact codes and restrictions in your area Q: Can you use Romex electrical wire in steel framed structures? A: Yes. You can use Romex as long as you use grommets in the pre-punched holes or field cut holes (Greenlee punch). You will also need to use all plastic electrical boxes. There is documentation in the building code approving this application Q: Will the steel in my frame rust? A: Inside the walls and roof of a home or structure where the steel is not constantly wet your steel frame will be very resistant to rust and corrosion. The reason is that zinc, through its sacrificial galvanic action, can “heal” cuts, scratches, and abrasions in the steel. The Steel Framing Alliance has done a study that can be viewed on the internet. The results of this study show that industry standard galvanization has life expectancy as high as 1260 years and that the fastest coating corrosion rate observed equated to a life expectancy in excess of 200 years Q: Will steel framing affect the indoor air quality of my home? A: The Healthy House Institute recommends steel framing for chemically sensitive and environmentally conscious homeowners who are seeking the best possible indoor air quality. Curfman Steel Corp. dba CSC Building Systems is an authorized fabricator for NBS-LGT, Nucor Building Systems Light Gauge Technology. NuShelter, NuBuildings, NuGarage, NuShed, NuEquestrian, NuSafe, NuFrame, NuTruss, NuProducts are registered trademarks of NBS-LGT. Used by Permission

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CSC Builidng Systems
Country of Manufacture	United States
Model	NE3652 4 Stall Horse Barn
