Pc-based Usb Oscilloscope 2ch 60mhz 200ms/s Signal Generator 20mhz Fft 3in1 220b

US $147.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

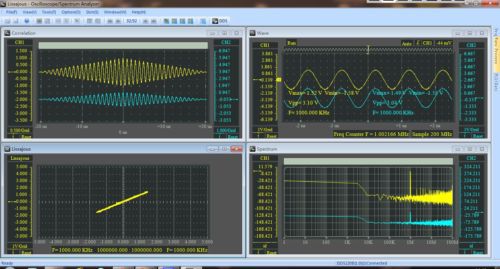

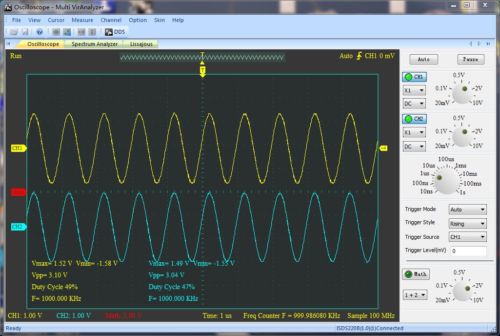

ISDS220B ISDS220A/ISDS220B dual-channel digital oscilloscope, is a product taken "low-cost, high-performance" as the design goals and it is well-designed bandwidth 60M, 200M sampling rate, 2 channels, supporting alternately X,alternating Y and XY mode dual-channel virtual oscilloscope, spectrum analyzer, and has a 1KHz reference square wave output interface. ISDS220B device supports DDS and scanner functions. Of which there are five kinds of DDS output wave form ,sine wave the highest possible output 20M. Devices communicate with a PC via high speed USB2.0. Features: 1, streamlined design, compact size, USB2.0 interface, no external power source. 2, more suitable for notebook computer, used easily on business. 3, a small size (mm): 150 (L) x100 (W) x30 (H), easy to carry. 4, high refresh rate, high sampling rate, 200MS / s real-time sampling. 5, the software supports: Windows XP (SP3), Win7 (32 bit), Win7 (64-bit). 6, waveforms: add, subtract, multiply, X-Y display. 7, the waveform data can be output to EXCEL, BMP, OSC by time and voltage. 8, FFT spectrum analysis. 9, full-function signal generator, and supports adjustable voltage amplitude and offset. 10, a computer can connect many DSO. 11, secondary development library that provides an example of VC development. Digital Storage Oscilloscope: Channels: 2 Impedance: 1M? 25pF Coupling: AC / DC Vertical resolution: 8Bit Voltage range:-16V ~ 16V Vertical accuracy: ± 3% Timebase range: 1ns-20s Vertical adjustable: 10mV/div-10V/div (1M?) Input protection: Diode clamping Auto Setup: Yes (10Hz to 60MHz) Trigger mode: automatic, continuous, single Trigger Slope: + / - Trigger level adjustable: Yes Trigger Type: Analog Trigger source: CH1, CH2 Memory Depth: 512KB/CH Single Bandwidth: 60MHz Maximum real-time sampling rate: 200MS / s Sampling Rate Selection: Yes Vertical mode: CH1, CH2, ADD, SUB, MUL Display Mode: X alternately, Y and X-Y mode alternately Cursor measurements: Yes Cursor display: frequency, voltage Waveform Save format: Osc (private), Excel and Bmp Spectrum Analyzer Channels: 2 Bandwidth: 60MHz Algorithm: FFT (18 window), correlation, power spectrum FFT data points per channel :8 -1048576 Filter: FIR supports arbitrary amplitude frequency sampling method and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss window function method; IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "oval" type; DDS signal source (ISDS220B) Waveforms: sine, square wave (variable duty cycle), triangle wave, sawtooth Output amplitude: >= 9Vp-p (no load) Output Impedance: 200? ± 10% DC Offset: ± 2.5V Frequency range: 1Hz ~ 20MHz (sine wave) .1 Hz ~ 2MHz (other) Frequency resolution: 1Hz Frequency Stability: ± 1 x 10-3 Frequency Accuracy: ± 5 x 10-3 Triangle wave linearity: >= 98% (1Hz ~ 10kHz) Sine Wave Distortion:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	ISDS220B
Channels	2
MPN	ISDS220B
Sample Rate	200MSa/s - 499MSa/s
Type	Digital
Country of Manufacture	China
Bandwidth	60MHz - 99MHz
Country/Region of Manufacture	China
