Pdi Dental Cad/cam Fixture System, Works With All 4axis Cnc Machines

US $495.00

Knoxville, Tennessee, United States
Mar 29th

Open on mobile:
QR code

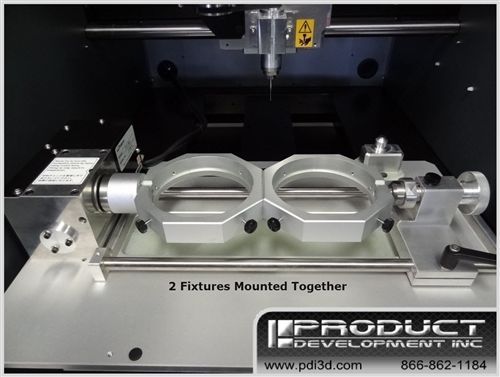

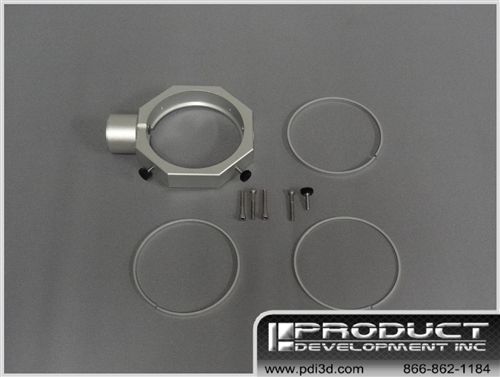

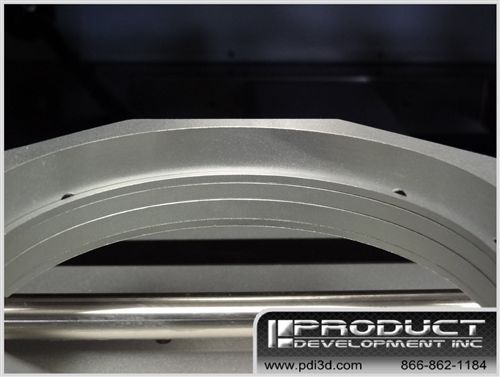

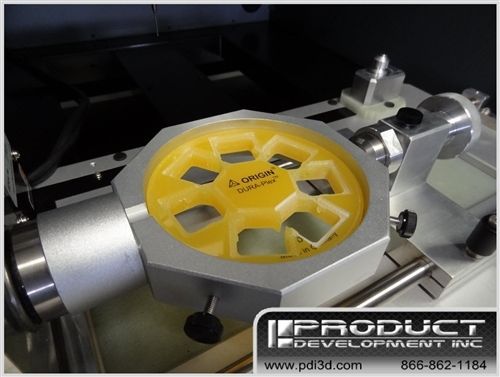

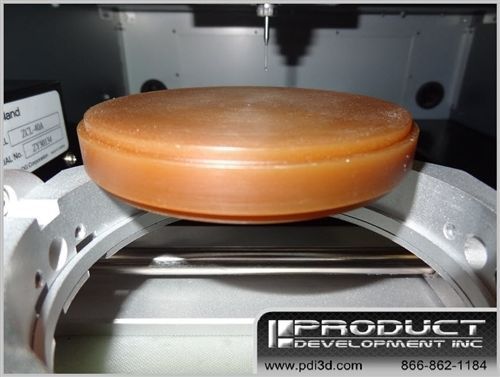

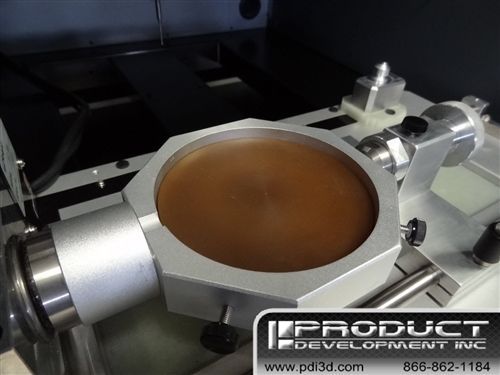

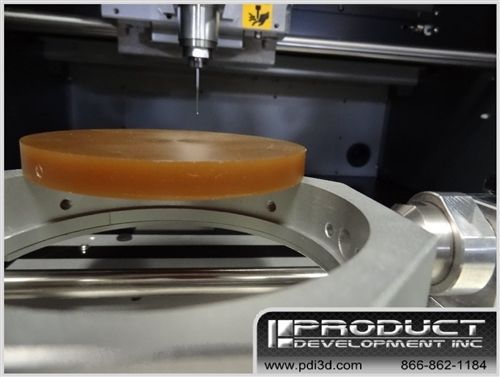

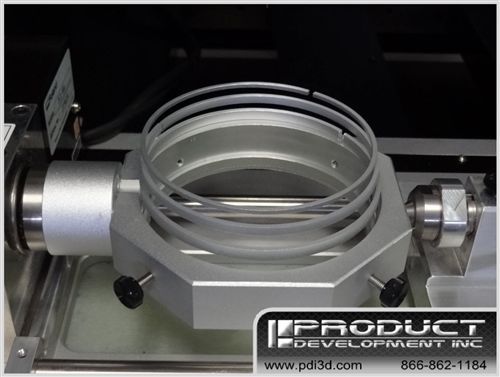

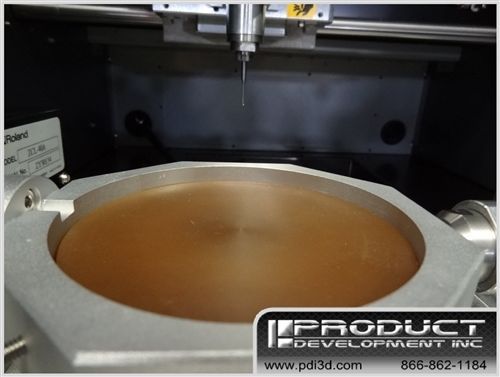

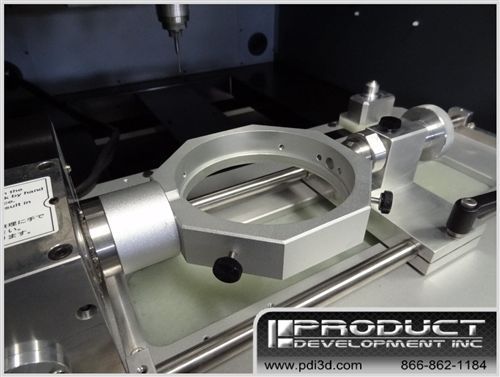

PDI Dental CAD/CAM Fixture System The PDI Dental CAD/CAM Fixture System allows you to take any Roland or other ordinary 4 axis milling machine and convert it into a dental milling system. The fixture mounts directly to any Roland 4th axis unit. It can also be used directly with any milling system using a 3 or 4 jaw chuck. So you can convert, Minitech, Sherline, Techno, Haas, Fadal, Modelmaster, and a variety of other systems into a dental milling system. Do not have a milling machine yet? We discount this fixture with purchase of a Roland MDX-40A or MDX-540 milling system. Features Accepts standard 98mm disks with or without a band Works with multiple materials (Wax, PMMA, Zirconia, ect) Tool less material install (Easy thumb screws lock material in place) Works on all Roland MDX 4th axis units. Works with all 3 jaw or 4 jaw chuck milling systems. Comes with spacers for materials that do not have the band. How It Works The PDI Dental CAD/CAM Fixture System allows you to hold standard 98mm dental material disks. Using a simple tool less approach the fixture holds the material securely in place while cutting. Based on the thickness of the material and whether or not it has a band you will choose a spacer and slip it into the fixture. Using a disk with a band you will use the 5mm spacer for all thicknesses. Disks without a band you will choose between the 5mm, 4mm, or 2mm spacer. Once the spacer is inserted you simply place your disk into the fixture and tighten the thumb screws. 2 locations in the back of the fixture have 2 pointed tip set screws that protrude into the interior of the fixtures slightly. The pointed set screws and the thumb screws grip the material with plenty of force to hold it in place while cutting. By not having to use allen wrenches and screws the change out of material is very simple, and there is not any screws to lose. The fixture and spacers are precision machined from aluminum and can be used to cut wax, PMMA, zirconia as well as other dental lab materials. Disk / Material Compatibility The PDI Dental CAD/CAM Fixture System accepts standard 98 mm disks with or without the 10 mm band. We have included pictures above that shows how the spacers work with the materials. You can use any materials that are used in a dental lab environment with the fixtures. CAM Software Compatibility SUM3D Dental 3Shape Cambridge Picasoft Mayka Dental Delcam DentMill Work NC Dental EdgeCAM ZYKLONCAM MasterCAM Mecsoft Visual Mill And others... The PDI Dental CAD/CAM Fixture System works with all Dental Specific CAD/CAM programs as well as non-dental CAD/CAM software programs. The fixture also works with Roland's proprietary software. The main difference between the dental specific CAD/CAM software's and non dental specific is the ability to nest the models and the strategies for dental milling. If you have a program that you would like to know if it would work with contact us and we will help you out. The fixture will work with all CAD/CAM programs. Dental Design Software Compatibility 3Shape Dental Wings Exocad Laser Denta Evirsa Dental Shaper Freeform Dental Rhino3D Solidworks Autocad And others... The PDI Dental CAD/CAM Fixture System works with all Dental Specific Design programs as well as non-dental design software programs. If you have a program that you would like to know if it would work with contact us and we will help you out. The fixture will work with all design programs. CNC Machine Compatibility Roland MDX-40A Roland MDX-540 Milling Systems with 3 or 4 jaw chuck Minitech Techno Isel ModelMaster Sherline And others... Do not have a milling machine yet? We discount this fixture with purchase of a Roland MDX-40A or MDX-540 milling system. The fixture can be used with all CNC machinery. The only concern you should have is if the 4th axis has enough clearance for the fixture to flip. You need a minimum of 2.5 inches. The fixture is 4.5in wide. Other then that you should be able to mount the fixture via one of the mounting methods, if you have any questions let us know and we will make sure it will work for your machine. Whats Included See Picture of Included Items Above... PDI Dental Fixture - Single Unit 5mm Spacer 4mm Spacer 2mm Spacer 3 Hex Mounting Screws Spare Mounting Screw Spare Material Locking Thumb Screw Install Guide User Guide Advanced Mounting Info If you do not want to use your 3 or 4 jaw chuck you can make a simple adapter plate to attach the fixture to the 4th axis of your choice. We include the mounting hole diagram for the fixture. If you are an OEM we can supply the fixture with the correct mounting plate to attach to your system. Contact us for details. Double Fixture Setup Buy 2 fixtures and get the second at 25% discount. Use 2 fixtures to create a double disk system. We will pre-assemble or supply you with the pins and screws to pin and screw the 2 fixtures together. Shipping This product is in stock and ships with in 24-48 hours. Roland, OEM, CNC Dealers and CNC Software Companies Would you like to offer the PDI Dental CAD/CAM Fixture System to your customers. We have a program just for you. Contact us about becoming a reseller of the PDI Dental CAD/CAM Fixture System as well as our other fixture solutions. We can adapt any fixture to custom fit your system.
