Philips / Fluke Pm6680 High Resolution Programmable Timer / Counter 225 Mhz

US $200

Baltimore, Maryland, United States
Jun 9th

Open on mobile:
QR code

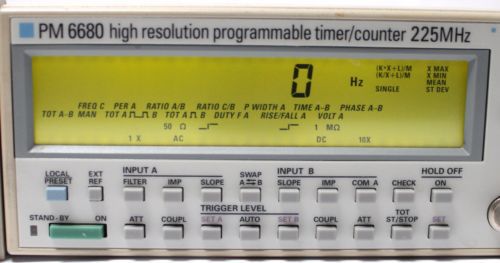

Up for sale is a used Philips / Fluke PM6680 High Resolution Programmable Timer / Counter. It has been tested and is in good working condition. It shows signs of use but is in good overall cosmetic condition. No accessories are included. Original Manufacturer Description: PM6680 is a dual step-down controller specifically designed to provide extremely high efficiency conversion, with lossless current sensing technique. The constant on-time architecture assures fast load transient response and the embedded voltage feed-forward provides nearly constant switching frequency operation. An embedded integrator control loop compensates the DC voltage error due to the output ripple. Pulse skipping technique increases efficiency at very light load. Moreover a minimum switching frequency of 33kHz is selectable to avoid audio noise issues. The PM6680 provides a selectable switching frequency, allowing three different values of switching frequencies for the two switching sections. The output voltages OUT1 and OUT2 can be adjusted from 0.9 V to 5.5 V and from 0.9 V to 3.3 V respectively. 6V to 28V input voltage range Adjustable output voltages 5V always voltage available deliver 100mA peak current 1.237V ±1% reference voltage available Lossless current sensing using low side MOSFETs RDS(on) Negative current limit Soft-start internally fixed at 2ms Soft output discharge Latched OVP and UVP Selectable pulse skipping at light loads Selectable minimum frequency (33kHz) in pulse skip mode 4mW maximum quiescent power Independent power good signals Output voltage ripple compensation
