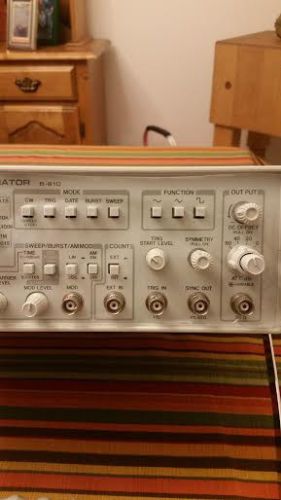

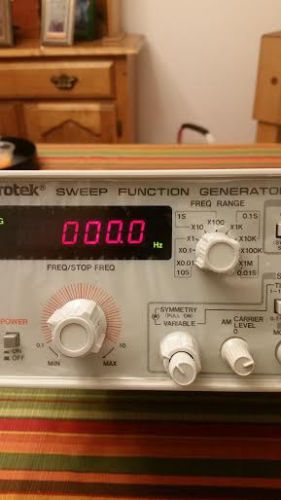

Protek B810 - Sweep Function Generator 0.01hz To 10mhz

US $154.99

  • Westwood, New Jersey, United States
  • Jan 29th
Open on mobile:
QR code
Protek B810 - Sweep Function Generator 0.01Hz to 10MHz Description: This modern waveform generator features: Wide (0.01HZ to 10MHz) Frequency Range; Burst and Triggered mode;  Sweep start/stop capability; Six digit LED frequency readout; Log. or Lin. Sweep; Built-in 10MHz frequency counter; External FM with the VCG input; Output can be amplitude modulated. Product Discontinued. Protek B810 - Sweep Function Generator 0.01Hz to 10MHz Characteristics:        Wide (0.01HZ to 10MHz) Frequency Range        Burst and Triggered mode        Sweep start/stop capability        Six digit LED frequency readout        Log. or Lin. sweep        Built-in 10MHz frequency counter        External FM with the VCG input        Output can be amplitude modulated Protek B810 - Sweep Function Generator 0.01Hz to 10MHz Specifications: Output Characteristics:       Frequency Range 0.01Hz to 10MHz in 9 ranges  Output Level 10 Volts into 50W Waveforms Sine, Square, Ramp,  Pulse Attenuator 20dB, 40dB, 60dB & 20dB variable  Impedance 50W DC Offset 5V in to 50W Sine Wave: Flatness 0.2dB: 0.01Hz to 100KHz Distortion 0.5% Triangle Wave:  Linearity > 99% Square Wave:  Rise/Fall Time  25ns (into 50W) Pulse:  Duty Cycles 20:80 to 80:20 may be obtained Operating Modes:  Modes CW, Triggered, gated, burst, sweep Trigger/Gate Input Level TTL Burst Time 1ms to 10s Trigger/Gate Freq. Range 0.1Hz to 1MHz Sweep:  Types Linear and Log Sweep Time 1ms to 10s Sweep Width Variable to 100:1 Start Freq 0.01Hz to 10MHz AM Modulation:   Type Internal Modulation Level 0 to 100% Modulation Voltage 0 to 5V Modulation Frequency DC to 1MHz FM Modulation:   Type External Tuning Range 1000:1 with an input voltage of 0 to -5V (VCG) Frequency Counter:   Measuring Range 1Hz to 10MHz Gate Time 0.01s, 0.1s, 1s, 10s Accuracy 0.0
Condition New other (see details) :
A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes “New with bent handle. This unit is brand new in perfect working order.”
