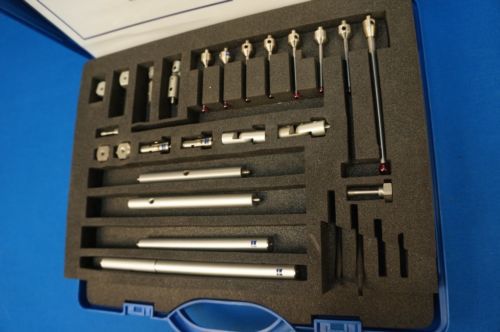

Renishaw Zeiss M5 Cmm Coordinate Measuring Machine Styli Kit In Box W Warranty

US $550.00

Minneapolis, Minnesota, United States
Jan 30th

Open on mobile:
QR code

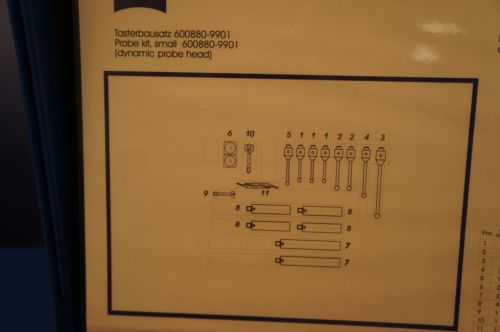

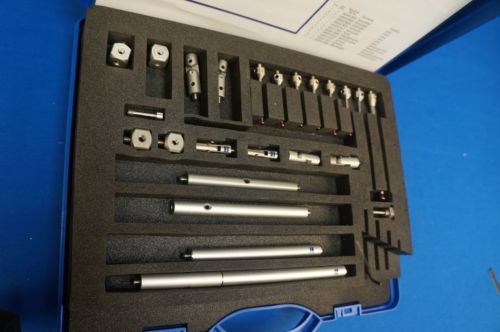

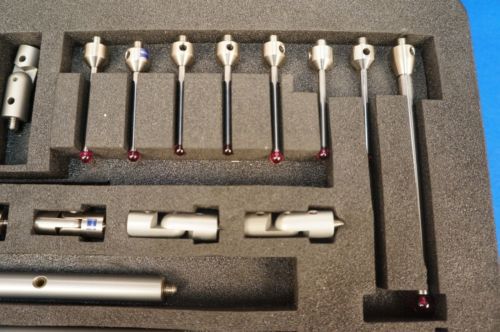

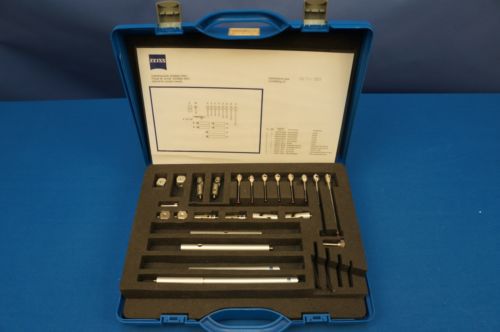

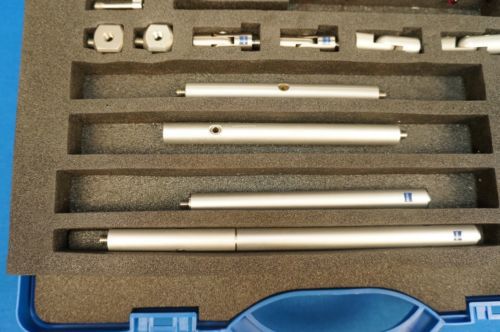

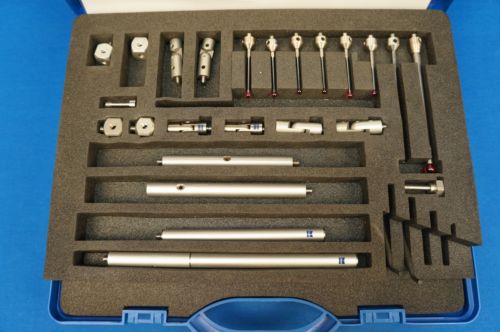

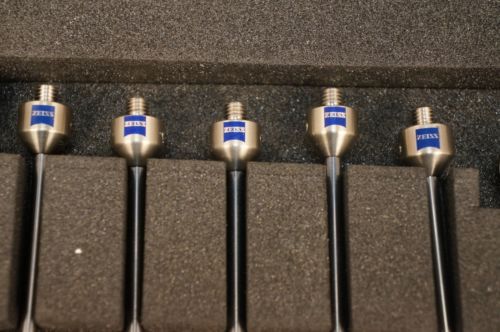

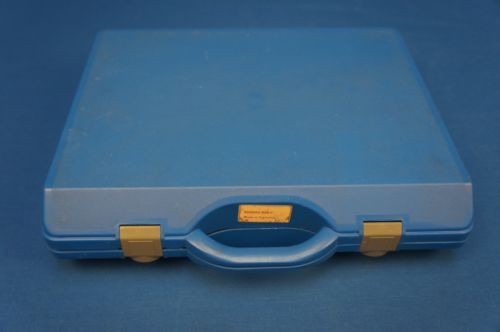

Powered by Frooition Pro Shop Search Renishaw Zeiss M5 CMM Coordinate Measuring Machine Styli Kit in Box w Warranty Click here to view full size. Full Size Image Click to close full size. Item Description Zeiss M5 CMM Stylus Kit 600880 Plus 8 Additional Items in Original Foam Lined Box with 90 Day Warranty. Most of the items in this kit are new and have never been used. A few simple rules can be applied to maximize accuracy for most probing applications. Terminology A = ball diameter B = overall length C = stem diameter D = effective working length Overall length Zeiss uses a standard description of overall length, measured from the rear mounting face of the stylus to the centre of the ball. Effective working length (EWL) This is measured from the centre of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part. Rules for choosing a stylus A few simple rules for stylus selection can be applied to maximize accuracy for most probing applications Keep styli short The more the stylus bends or deflects, the lower the accuracy. Probing with the minimum stylus length for your application is the best option. Minimise joints Every time you join styli and extensions, you introduce potential bending and deflection points. Try, wherever possible, to keep to the minimum number of pieces possible for your application. Keep the stylus ball as large as possible There are several reasons for this: it maximises your ball/stem clearance, thereby reducing the chance of false triggers caused by 'shanking out' on the stylus stem, and increasing the EWL; a larger ball allows a larger stem diameter, increasing the stiffness of the stylus; the larger ruby ball reduces the effect of the surface finish of the component being inspected. EWL can also be affected by assembly tolerances. For this reason Renishaw styli are assembled to exacting standards in controlled conditions. Purchase with confidence from a Paypal verified retailer. If what you order is not what you receive you will be refunded the full purchase price of this sale. Metrology Parts would like the opportunity to earn your business for this sale and all of your future Renishaw needs. If you have any questions feel free to contact us. With 26 plus years of experience with metrology products we can help with all of your application needs as well as your after sales support. About Us Payment Shipping Terms Returns About Us About Us Payment Shipping Terms Returns Payment About Us Payment Shipping Terms Returns Shipping About Us Payment Shipping Terms Returns Terms About Us Payment Shipping Terms Returns Returns Helpful Links More Items! Frooition www.frooition.com | eBay design, eBay store design, eBay shop design, eBay template design, eBay listing design This listing is currently undergoing maintenance, we apologise for any inconvenience caused.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Country/Region of Manufacture	Germany
MPN	600880-9901-000
Brand	Zeiss
Country of Manufacture	Germany
Model	M5 Small Stylus Kit
