Rfid Module Card 13.56 Mhz. Read/write. Mf522 Rc522.mifare Tags With 1 Kb Eeprom

US $18.00

Mexico, D.F., Mexico
Feb 21st

Open on mobile:
QR code

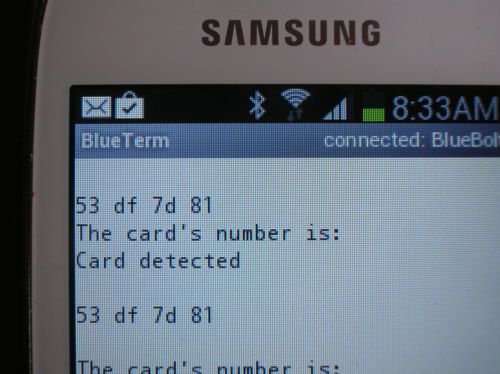

MF522-AN RFID module 13.56 Mhz read/write with SPI interface OVERVIEW: The MF522-AN is a complete low cost RFID 13.56 Mhz module and may be connected to any microcontroller having a standard SPI interface. This module comes with 2 Mifare tags with 1 Kb EEPROM. The tags must be at an aproximate distance of 10 cms from the MF522 device to activate the RFID functions. MF522-AN has read/write capability of the EEPROM in tags, with applications ranging from public transport, access control, attendance control to electronic wallet systems. COMPLETE C18 PROJECT FOR PIC 18F2550 MICROCONTROLLER: With the MF522-AN module, we provide a complete project for Bolt 18F2550 system, capable of reading and writing the RFID Mifare tags. In addition, a Bluetooth interface is used, so as to visualize data on a mobile phone. The user may also connect directly a Laptop to the serial port of the Bolt system to observe RFID data. For this purpose, an MPLAB IDE project for the C18 compiler is provided. Several RFID ANSI C libraries are available (erase EEPROM of tag, read serial number, read EEPROM memory and write block of EEPROM in tag), so that the user may modify and create its own applications. Please see project clicking on this link: ***Complete project: RFID module with SPI interface to microcontroller Bolt 18F2550 system with visualization of data in a mobile phone*** TECHNICAL SPEC: Model: MF522-AN, read-write data, based on NXP Semiconductors chip MFRC522. Aproximate detection distance = 10 cms. Includes a card and a keychain tag type. Voltage: 3.3 volts @ 13 ma. Maximum current = 30 ma. Tags specification: Mifare MF1S503 with 1 Kb EEPROM Operating Frequency: 13.56 Mhz Interface: 8-pin header connector, SPI, with speed up to 10 Mbps Operating Temperature: -20 to +60 degrees C. Dimensions: 40 x 60 mm. ***Contents of package: 1 MF522-AN RFID module, 1 card tag, 1 keychain tag.*** CONDITIONS OF ITEM: item is new. PAYMENT: payment is through PayPal. SHIPPING: Cost of shipping is free. We ship worldwide via standard international shipping. Time of delivery is 10 to 25 business days. We provide a tracking number. Package weight is 50 gr. We ship same day or, at most, 1 day after cleared payment received from PayPal. INTERNET TRACKING: In most countries, client will be able to track his/her package in the internet site of its local post company, with the guide number provided. RETURN AND REFUND POLICIES: If buyer is not satisfied with product, we accept its return within 14 days after delivery in its destination. Costs of shipping in this case are paid by buyer. We will refund 100% of cost.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Model

MF522-AN
