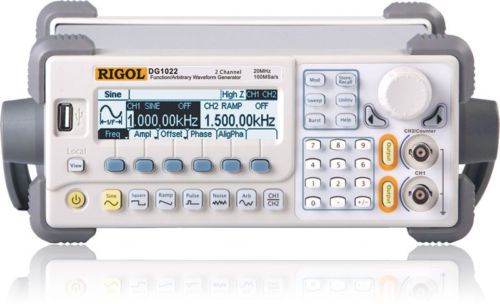

Rigol Dg1022 2-channel Arbitrary Waveform / Function Generator

US $423.00

HK, Hong Kong
Jan 29th

Open on mobile:
QR code

Rigol DG1022 arbitrary waveform / function generator adopts DDS technology which provides stable, high-precision, pure and low distortion sine signals. Rigol DG1022 can generate 5 MHz square waveform with fast rising and falling edges. The excellent system features, user friendliness and versatile functions combination makes this arbitrary waveform / function generator a perfect solution for IC, serial bus and in-circuit function tests, simulation of sensors and natural environment signals. Rigol DG1022 dual channel arbitrary waveform / function generator has an intuitive user interface and simple front panel layout and instructions. Versatile terminals, direct graph interface, built-in instructions and help system have hugely simplified the operation process, therefore the users do not have to spend much time learning before they can use the generator proficiently. Built-in AM, FM, PM and FSK modulating functions generate modulated waveforms without the assistance of a separate modulating source. Features DDS technology: output signals become more accurate and stable with lower distortion 2 channel output 5 standard waveforms and 48 stored arbitrary waveforms Sine Pulse Square Ramp Noise 48 stored arbitrary waveforms 100 MSa/s of sample rate, 14 bits of vertical resolution, 4k points of memory depth Versatile modulation and variety of waveforms AM FM PM FSK Sweep Burst Versatile input and output: external modulation source, external clock reference (10 MHz), external trigger input, waveforms output, synchronous signal output High accuracy and wide band width frequency counter range up to 200 MHz USB Host to support USB disk storage Seamless connectivity with DS series digital oscilloscopes: lossless recurrence of stored waveforms obtained from DS Multi-language user interface, built-in help system Technical Specifications Standard waveforms Waveforms Sine, Square, Ramp, Pluse, Noise and 48 stored arbitrary waveforms Sine 1 ?Hz to 20 MHz Square 1 ?Hz to 5 MHz Pulse 500 ?Hz to 3 MHz Ramp 1 ?Hz to 150 kHz Arb 1 ?Hz to 5 MHz White noise 5 MHz (-3 db) Resolution 1 ?Hz Sine wave spectral purity Harmonic distortion DC < 1 Vpp > 1 Vpp to 20 kHz -70 dBc -70 dBc 20 kHz to 100 kHz -70 dBc -60 dBc 100 kHz to 1 MHz -55 dBc -50 dBc 1 MHz to 10 MHz -40 dBc -35 dBc Total harmonic distorion to 20 kHz 1Vpp >0.2% Spurious (non-harmonic) DC to 1 MHz < -70 dBc 1 MHz to 10 MHz < -70 dBc + 6 dB/octave Phase noise 10 kHz Offset –108 dBc / Hz, typical Square wave characteristic Rise/fall time < 20 ns (10% to 90%) Overshoot < 5% Duty cycle 1 ?Hz (include) ~ 3 MHz (include) 20% to 80% 3 MHz (non-include) ~ 4 MHz (include) 40% to 60% 4 MHz (non-include) ~ 5 MHz (include) 50% Asymmetry (below 50% of the duty cycle) 1% of the period + 20 ns Jitter 6 ns + 0.1% of the period Pulse wave characteristics Pulse bandwidth 2000 s max, 20 ns min,1 ns min resolution Overshoot < 5% Jitter 6 ns + 100 ppm of the period Arbitrary wave characteristics CH1 CH2 Waveform length 2 to 4k points 2 to 1k points Amplitude accuracy 14 bits (including sign) 10 bits (including sign) Sample rate 100 Msa/s Minimum rising /falling time 35 ns Jitter (RMS) 6 ns + 30 ppm Non-volatile storage 10 waveforms Output characteristics Amplitude 2 mVPP to 10 VPP (50 ?) 4 mVPP to 20 VPP (High Z) 2 mVPP to 3 VPP (50 ?) 4 mVPP to 6 VPP (High Z) Amplitude accuracy (1 kHz) ± 1% of setting + 1 mVPP Amplitude flatness (sine wave relative to 100 kHz)

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	RIGOL
Warranty	36
Model	DG1022
Channels	dual channel
Country/Region of Manufacture	China
Max. signal frequency	20 MHz
Voltage	110/220
Oscilloscope triggering	no
