Rigol Dg4062 Arbitrary Waveform Generator, 2 Channel, 500 Msa/s, 60 Mhz, 16 Kpts

US $898.88

shenzhen, China
Jan 29th

Open on mobile:
QR code

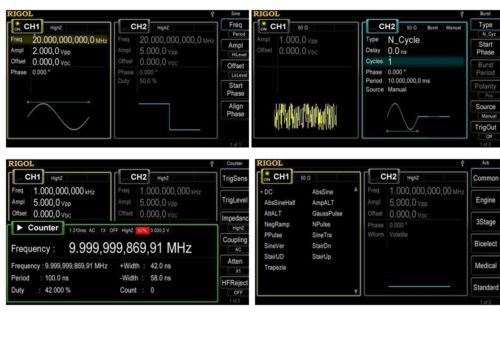

Rigol DG4062 Arbitrary Waveform Generator, 2 Channel, 500 MSa/s, 60 MHz, 16 kpts Description Rigol DG4062 Arbitrary Waveform Generators NEW ARRIVAL The Rigol DG4062 is two channel function / arbitary waveform generator to create high quality signals up to 60 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device and a LAN interface. The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface. Model DG4162 DG4102 DG4062 Channels 2 2 2 Frequency 160 MHz 100 MHz 60 MHz Sample Rate 500 MSa/s Waveform Length 16 Kpts Vertical Resolution 14 bits Display Type 7 inches TFT WVGA(800X480) Special Features Filesystem and USB Stick Support The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks. Integrated Helpsystem The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks. LCD Screenshots 2 Channels The extra large display with a diagonal size of 17.18 cm (7") and a resolution of 800 x 480 pixels can easily display the details from both channels of the device. Both channels feature the full range of functions and can be synchronized phase-dependently. This function turns the device into a true dual-channel generator. Arbitrary signal generation Almost any waveform can be reproduced by using the arbitrary signal generator. Operation of the device is simplified enormously by the 150 pre-defined waveforms. Independent analogue and digital modulation Since the DG4000 series function generators feature two independent channels which can be synchronized, it is also possible to output analogue and digital waveforms simultaneously. Various sweep functions The DG4000 signal generators can cycle through defined frequency ranges at a constant amplitude and output various basic waveforms at the same time, such as sine, square, ramp, and arbitrary signals. Harmonic signals The function generators are able to generate harmonic overtone signals up to the 16th order, with adjustable parameters such as frequency, amplitude, and phase for all frequencies. Even, odd, all, or user-defined harmonics can be generated. High resolution frequency counter These devices feature a standard high resolution frequency counter. It is able to measure the frequency, period, positive and negative pulse length, and the duty cycle – all at frequencies ranging from 1 µHz to 200 MHz. Frequenzzahler mit Statistik The frequency counter features a history and statistics function with which signal changes over time can be detected and visualized. Common Data Generator Function / Waveform Generator Rigol DG4062 Display 17,78 cm (7") TFT with 16M colors Resolution 800 x 480 Pixel Interfaces - USB-Host (for USB stick i.e. to save/load waveforms) - USB-Device for a PC connection - LAN fur die Verwendung im Netzwerk Dimensions 313 mm x 160,7 mm x 116,7 mm (12.32" x 6.33" x 4.59") Weight 3.2 kg (7.055 lbs) Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit) Details The complete list of technical specifications you can find in the chapter "Specifications" of the Datasheet. Function Function / Waveform Generator Rigol DG4062 Channels 2 Signal Output Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 150 predefined arbitrary Waveforms, free definineable arbitrary Waveforms Vertical Resolution 14 bit Amplitudes 1 mVpp ~ 10 Vpp (50 ?) DC Offset ±5 V (50 ?) Sample Rate 500 MSa/s Frequency Range Sine 1 µHz - 60 MHz Frequency Range Rectangle 1 µHz - 25 MHz Frequency Range Pulse 1 µHz - 15 MHz Frequency Range Ramp 1 µHz - 1 MHz Frequency Range Harmonics 1 µHz - 30 MHz Frequency Range Arbitrary 1 µHz - 15 MHz Frequency Range Noise 60 MHz (-3db) Resolution 1 µHz Payment We accept payment through PAYPAL only. Shipping 1.TO USA, Canada ,Australia, West and North Europe: By DHL OR FedEx 4-10 Business days 2.TO Other Countries: By DHL OR FedEx 5-12 Business daysOur Commitment 1. We provide 12 months warranty. 2. In case of the item malfunctioned under proper usage per instruction manual during warranty period, please kindly contact us and return it at your shipping cost for a replacement. We will resend you a replacement at our shipping cost. 3. If you have NOT received item in 40 days, we will check it with post office, and then resend or refund any missing item. Contact 1. If you are not satisfied, please contact us to resolve any issues. Please do NOT leave negative feedback without asking for help. We work hard to make sure EVERY CUSTOMER 100% satisfaction. 2. For any inquiries, issues or assistance, please contact us via eBay or leave your mail address. 3. All emails will be answered within 2 working days. If you do not receive our reply, please kindly re-send your email and we will reply to you as soon as possible. Our aim is to exceed our customer’s expectations in quality, delivery and cost through continuous improvement and customer interaction. eBay Cross Border Trade powered by Channel Effect

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	DG4062
Amplitudes	1 mVpp ~ 10 Vpp (50 ?)
MPN	DG4062
DC Offset	±5 V (50 ?)
Manufacturer	Rigol
Sample Rate	500 MSa/s
Channels	2
Frequency Range Sine	1 µHz - 60 MHz
Vertical Resolution	14 bit
Frequency Range Rectangle	1 µHz - 25 MHz
