Rock Crusher Pulverizer 12" X 8.5" Drum - 2 Hp Electric Motor

US $1,542.00

Lacey, Washington, United States
Jan 30th

Open on mobile:
QR code

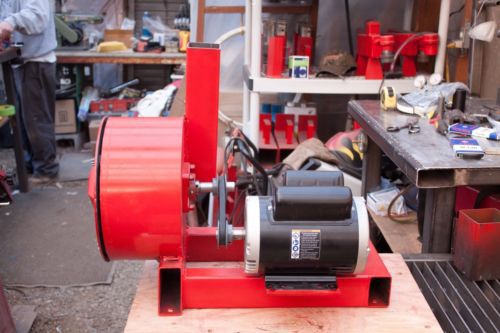

B & M Crushers Our Newest Light Weight Portable Model - 1285e This is another of our super effective chain flail type Crusher/Pulverizers. This little crusher is easy to transport and really chews up the rock. See an example of a crusher like this one in operation , click the link below. http://www.youtube.com/watch?v=UTyAhgqoUW8 It has a 12" dia. cylinder that is 8.5” deep, and uses 8 chain hammers with an output capacity is 200 lbs./hour (3/4 tons/day). The feed tube is 3" x 3". We use a 12” dia. round cylinder, which improves the pulverization process. The 8.5” extra deep cylinder keeps the rock in the crusher longer and doubles the number of chains we can use, giving the 8 chains more time to reduce the grit size of the output to 100 to 200 mesh or finer. All 8 chains length can be adjusted as they wear to allow you to fine tune the grit size for optimum output. There are two self centering bearings with grease fittings for easy lubrication, the chains are grade 8 chain and last a very long time. We use a 7/8” standard 3/16” key way shaft. All of the parts of the crusher are replaceable, except for the crusher body and frame. This crusher is designed to use a 2 HP electric motor, because it runs the crusher at optimum output. The complete crusher without motor weighs 96 lbs, shipping weight is 104 lbs. The crusher only weighs 150 lbs with motor installed and ready to go. This crusher comes with an adjustable engine mounting plate configured for the 2 HP motor, the pulleys for the motor and crusher and v-belt are supplied . Just use the supplied mounting bolts and nuts to attach the 2 HP motor and you’re ready to MAKE SOME DUST. There is an additional set of 8 chains, 6 spare output screens, and a spare v-belt inside the cylinder when shipped. The motor will ship separately from the manufacturer. We ship the Crusher via UPS to the lower 48 states, mounted on a mini pallet. International shipping available, but extremely expensive. We manufactured this Crushers in Washington State. Our Crushers body comes with a 5 year warranty against faulty welding on the cylinder and frame. Return the crusher for repair or replacement of the broken part. You pay shipping both ways. Spare Bearings, Output Screens, Chain Sets, Shafts, Chain Heads are all available for purchase. NOTE: The color of the crushers vary, but are Apple red or camouflage.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	B & M Crushers
Country of Manufacture	United States
Model	1285e
