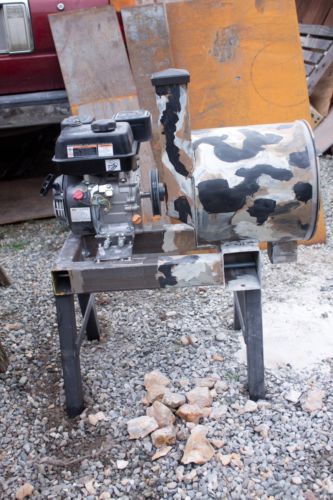

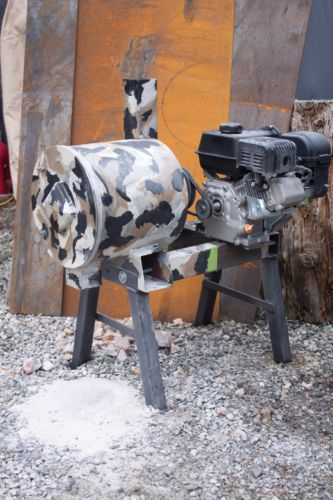

Rock Crusher Pulverizer - W/legs- 12" X 12" Drum - 6.5 Hp Gas Engine

US $1,874.00

Lacey, Washington, United States
Jan 30th

Open on mobile:
QR code

B & M Crushers Our Newest Light Weight Portable Model - 1212lg This is another of our super effective chain flail type Crusher/Pulverizers. This little crusher is easy to transport and really chews up the rock. See an example of a crusher like this one in operation , click the link below. http://www.youtube.com/watch?v=UTyAhgqoUW8 It has a 12" dia. cylinder that is 12” deep, and uses 12 chain hammers with an output capacity is 200 lbs./hour (3/4 tons/day). The feed tube is 3" x 3". We use a 12” dia. round cylinder, which improves the pulverization process. The 12” extra deep cylinder keeps the rock in the crusher longer and triples the number of chains we can use, giving the 12 chains more time to reduce the grit size of the output to 100 or 200 mesh or finer. All 12 chains length can be adjusted as they wear to allow you to fine tune the grit size for optimum output. There are two self centering bearings with grease fittings for easy lubrication, the chains are grade 7 chain and last a very long time. We use a 7/8” standard 3/16” key way shaft. All of the parts of the crusher are replaceable, except for the crusher body and frame. This crusher is designed to use a 7 HP gas engine, because it runs the crusher at optimum output. The complete crusher without motor weighs 96 lbs, shipping weight is 124 lbs with the Legs. The crusher only weighs 165 lbs with Legs motor installed and ready to go. This crusher comes with 15" Removable Legs, an adjustable engine mounting plate configured for the 7 HP gas engine, the pulleys for the motor and crusher and v-belt are supplied . Just use the supplied mounting bolts and nuts to attach the 7 HP engine and Legs, and you’re ready to MAKE SOME DUST. There is an additional ring gasket, a set of 12 chains, 6 spare output screens, and a spare v-belt inside the cylinder when shipped. The motor will ship separately from the manufacturer. We ship the Crusher via UPS to the lower 48 states, mounted on a mini pallet. International shipping not available. We manufactured this Crushers in Washington State. Our Crushers body comes with a 5 year warranty against faulty welding on the cylinder and frame. Return the crusher for repair or replacement of the broken part. You pay shipping both ways. Spare Bearings, Output Screens, Chain Sets, Shafts, Chain Heads are all available for purchase. NOTE: The color varies from crusher to crusher, all are either Apple Red or camouflage.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	B & M Crushers
Country/Region of Manufacture	United States
Model	1212lg
Country of Manufacture	United States
