Rotary Switch Crl Pa602-817 Mil Spec 81349-mil-s-3786/3 2 Pcs

US $17.99

Naperville, Illinois, United States
Jun 9th

Open on mobile:
QR code

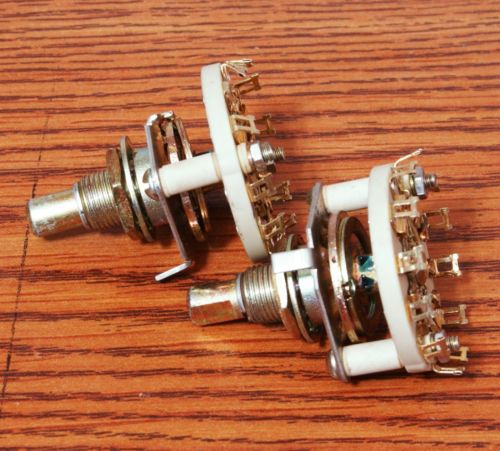

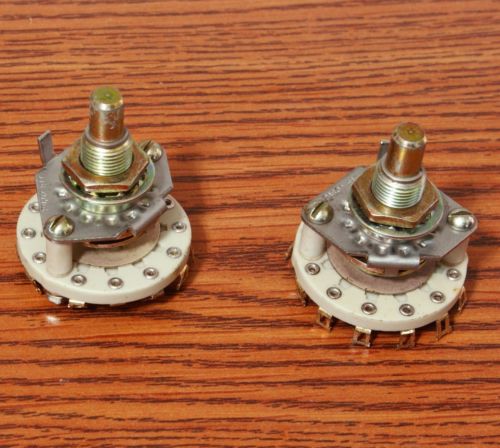

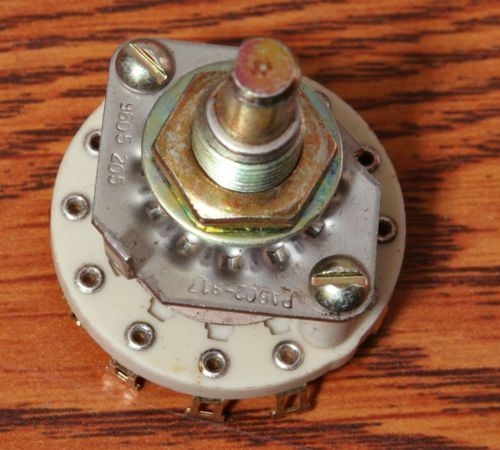

ROTARY SWITCH CRL PA602-817 MIL SPEC 81349-MIL-S-3786/3. New never used as shown in picutes LOT OF 2 UNITS. Equivalent to RAYTHEON 480903-15. Government contractor issued. Technical Characteristics ( ILs ) 5930-00-761-6831 MRC Requirement Reply ABWV SHAFT DIAMETER 0.247 INCHES MINIMUM SINGLE ACTUATOR AND 0.251 INCHES MAXIMUM SINGLE ACTUATOR AAJD THREAD CLASS 2A SINGLE MOUNTING FACILITY CRSJ SHAFT TYPE ROUND, FLATTED SINGLE ACTUATOR AFDC NONTURN DEVICE TYPE TAB AT 3:00 O'CLOCK AFBH INDIVIDUAL SECTION QUANTITY 1 AXGY MOUNTING METHOD THREADED BUSHING SINGLE MOUNTING FACILITY ABMK OVERALL WIDTH 1.300 INCHES MAXIMUM ABNB FIRST FLAT LENGTH 0.280 INCHES NOMINAL SINGLE ACTUATOR AKPY THROW QUANTITY 3 SINGLE SECTION REAR CQMK CONTACT VOLTAGE RATING IN VOLTS 28.0 DC AT SEA LEVEL STYL STYLE DESIGNATOR CIRCULAR WAFER, BUSHING MOUNT CQRQ SHAFT FLAT/SLOT ANGULAR LOCATION 240.0 DEGREES FROM NONTURN DEVICE SINGLE ACTUATOR AASA THREAD LENGTH 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY CTHF CONTACT LOAD CURRENT RATING 50.0 MILLIAMPERES RESISTIVE LOAD HIGHEST AC VOLTAGE RATING AT SEA LEVEL CSHW CONTACT SWITCHING ACTION BREAKS BEFORE MAKES SINGLE SECTION REAR CTHF CONTACT LOAD CURRENT RATING 225.0 MILLIAMPERES RESISTIVE LOAD LOWEST AC VOLTAGE RATING AT SEA LEVEL ABXF SHAFT LENGTH 0.750 INCHES NOMINAL SINGLE ACTUATOR ABNC FLAT HEIGHT 0.211 INCHES MINIMUM SINGLE ACTUATOR AND 0.221 INCHES MAXIMUM SINGLE ACTUATOR AJZE SWITCH CONTACT BASIC DESIGN NONPILE-UP SYMMETRICAL CQMK CONTACT VOLTAGE RATING IN VOLTS 115.0 LOWEST AC VOLTAGE RATING AT SEA LEVEL TEST TEST DATA DOCUMENT 81349-MIL-S-3786/3 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TEST ~1 TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). AKPX POLE QUANTITY 3 SINGLE SECTION REAR CTDN SWITCH ACTUATOR STOP DEVICE TYPE FIXED STOP SINGLE ACTUATOR CTHF CONTACT LOAD CURRENT RATING 500.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL CRJH SWITCH ACTUATOR INDEXING POSITION QUANTITY 3 SINGLE ACTUATOR CQMK CONTACT VOLTAGE RATING IN VOLTS 300.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL CSCF TERMINAL TYPE TAB, SOLDER LUG CSLC SWITCH ACTUATOR POSITIONING INCREMENT 30.0 DEGREES SINGLE ACTUATOR AEFP NONTURN DEVICE RADIUS 0.531 INCHES NOMINAL AT 3:00 O'CLOCK ABKW OVERALL HEIGHT 1.380 INCHES MAXIMUM ABHP OVERALL LENGTH 1.830 INCHES MAXIMUM THSD THREAD SERIES DESIGNATOR UNEF SINGLE MOUNTING FACILITY AFGA OPERATING TEMP RANGE -65.0/+85.0 DEG CELSIUS CQJX NOMINAL THREAD SIZE 0.375 INCHES SINGLE MOUNTING FACILITY "COMBINE SHIPPING If you want to buy more of our store items please do so and request an invoice before paying as we combine shipping. ""QUALITY GUARANTEE: We inspect and test all items that come into our shop. However, we deal with a large variety of items and our knowledge of some items is quite limited. Because of this we offer a 48 hour inspection period on all items that we sell. If you happen to find a problem with your item that we missed, please let us know within 48 hours of delivery. We will repair the item or refund your money if there is a problem that we cannot fix. Good customer service is our only goal. Please let us know immediately if there is a problem with your item. International Buyers – Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. Please note that we are not related with any of the companies that manufacture the products that we sale therefore if you have any questions regarding our products you can contact us directly. "" Mycyberoffice.com eBay Store Visit My eBay Store: MyCyberOffice The place for all your tools, military surplus and much more needs Visit my eBay Store:MyCyberOffice FREE! Sellers: Add a FREE map to your listings. FREE!

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Model	PA602-817
Country/Region of Manufacture	Unknown
