Smt Assembling Turn Key Package-pick And Place, Stencil Printer, Reflow Oven

US $9,950.00

  • Ontario, California, United States
  • Jan 30th
Open on mobile:
QR code

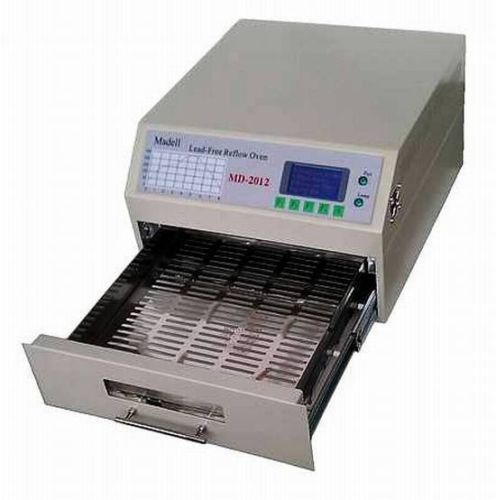

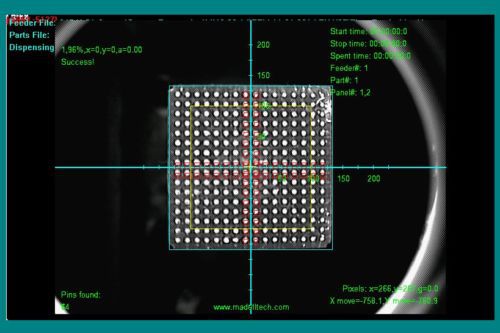

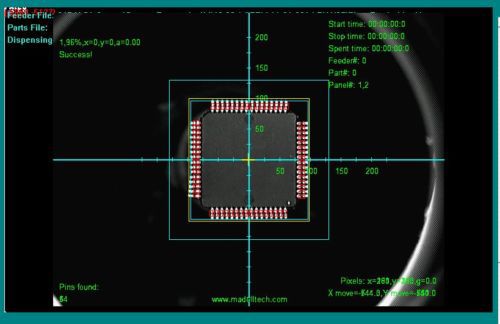

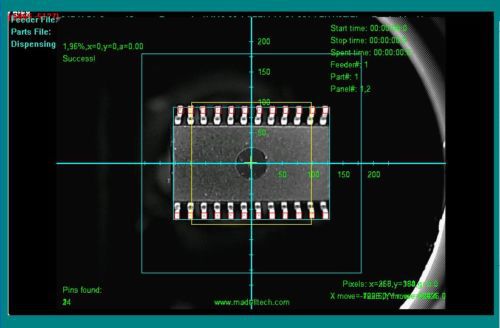

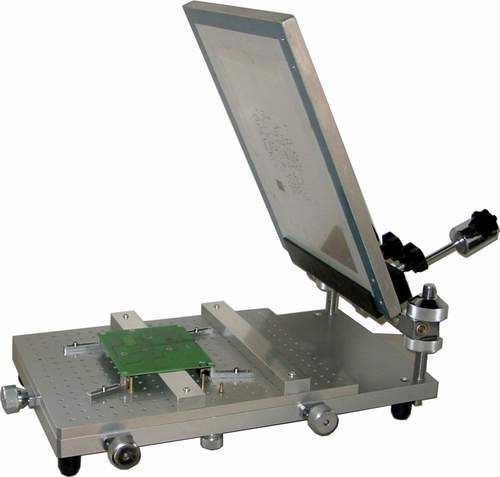

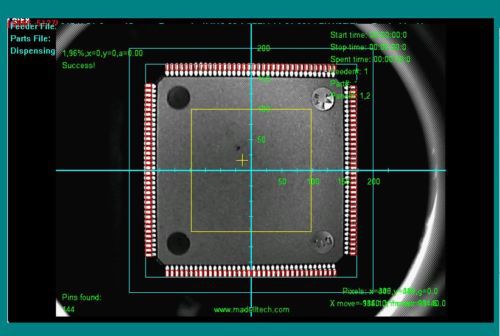

What on this listing are the main items in a complete SMT assembling line: Pick and place machine: Mini-X High precision stencil printer: STP-350 Desktop reflow oven: MD-2012 Pick and Place machine, full loaded: 2000 estimated pph(parts per hour) 300mm x 420mm working area; PCB size 6"x7" Placement of 0201 parts standard  One teaching vision camera and two up looking machine vision cameras, one for small parts and one for big IC's Automatic nozzle changer included Computer vision automatic centering system for IC's (SOP, QFP, BGA) and better placement of small parts Fully programmable digital Z-axis and Theta rotation angles X and Y axis 0.01mm resolution, 0.045° rotational resolution Stepper motors  Twenty 8mm feeders included Automatic PCB board position correction with fiducial recognition included CAD file convert function including Eagle PCB files 12 month full factory warranty - parts & labor Easy to use graphic software for quick programming. Programming can be done with teaching video camera, on screen Gerber file graphics or CAD file 110V AC 60Hz, or 220 V AC, 50Hz, 500 watts electrical Vacuum can be generated by compressed air or use a vacuum pump directly Small foot print and light weight of 50 pounds Made in USA Options: Computer  vibration feeders. New machine configuration: Set up new pick and place machines based on customer's PCB designs.  Your new machine will be able to start production immediately after you get it. We will need your PCB files and sample PCB boards, possible some special parts.  This is a fee based service. The fee varies with the complexity of PCB's.     Shipping: Buyer is responsible for shipping with freight service.  We can get shipping quote.  Should be below $400 within the united states.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Madell
Country/Region of Manufacture United States
Model Mini-X pick place, STP-350 printer, MD-2012 Oven
