Tektronix Ths720p 100mhz Dual Channel Oscilloscope Dmm Power Analyzer

US $1,150.00

Orland, California, United States
Jan 29th

Open on mobile:
QR code

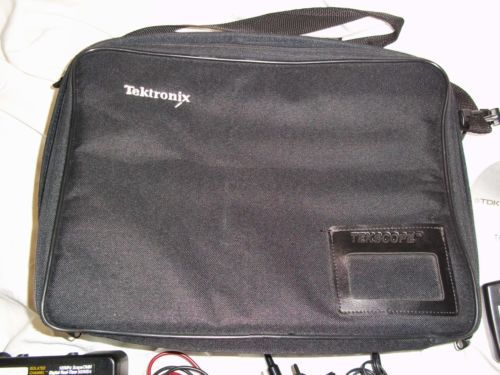

Tektronix THS720P 100MHz Dual Channel Oscilloscope DMM Power Analyzer Tekscope This is a great instrument, multi function that can make many troubleshooting tasks a breeze. I have been a bit reluctant to sell it as it works so easy & well designed, does a great job in meter mode tracking changes to any reading by graphing results, which scale & time frame are adjustable, can track Min/Max/Average of readings. Also can export results to a printer, can store a wealth of information of readings. The oscilloscope is easy to operate and adjust scaling, trigger, time , etc. All channels are isolated, Digital Real Time 500MS/s All functions work. Includes the Tekscope THS720P AC Power adapter A Tektronix P5102 10X Probe 2 DMM Meter Leads Complete manual on CD Protective Soft Case Battery Pack (does not hold charge) Many for sale on Ebay. Unit carries a 30 day Warranty, Will be shipped Free VIA FedEx Insured IN CONUS Only Following Tech Spec is from Tektronix Characteristics Oscilloscope Functions THS730A THS720A THS720P Bandwidth 200 MHz 100 MHz 100 MHz Sample Rate (Each Channel) 1 GS/s 500 MS/s 500 MS/s Time/Division Range 2 ns to 50 s/div 5 ns to 50s/div 5 ns to 50s/div Power Measurements N N Y OSCILLOSCOPE FUNCTIONS Channels - Two. Sensitivity - 5 mV to 50 V/div (to 500 V/div with 10X probe). Position Range - ±10 div. DC Gain Accuracy - ±2%. Vertical Resolution - 8-Bits. Record Length - 2500 points. Horizontal Accuracy - ±200 ppm. Roll Mode - >= 0.5 s/div. Autorange - User-selectable. Trigger Modes - Auto, Normal. Trigger Types - Edge, Pulse, Video, External. Video Trigger Formats and Field Rates - Odd field, even field, and line. Motor Trigger (THS720P only) - Triggers on 3- and 5-level pulse-width modulated power signal. Harmonics (THS720P only) - Up to 31st (30 Hz-450 Hz). External Trigger Input - 5 MHz TTL compatible. Waveform Processing - Add, Subtract, Multiply, Calculate Watts = V x I. Waveform Storage - 10 waveforms. Acquisition Modes - Sample, Envelope, Average, Peak Detect. Cursor Measurements - delta Volts, delta Time, 1/deltaTime (Hz), Degree (phase). Cursor Types - Horizontal Bars, Vertical Bars, Paired (volts @ time). Display System - Interpolation: Sin(x)/x. Format: YT and XY. Mode: Vector, Dot, Vector Accumulate, Dot Accumulate. Automatic Measurements Period Frequency +Width -Width Rise Time Fall Time +Duty Cycle -Duty Cycle +Overshoot -Overshoot High Max. Low Min. Peak-to-Peak Amplitude Mean RMS Cycle Mean Cycle RMS Burst Width Power Measurements (THS720P Only) W True power VA Apparent power VAR Reactive power V Volts (RMS, Peak) A Amps (RMS, Peak) THD-F Total harmonic distortion as a percentage of the fundamental THD-R Total harmonic distortion of the RMS of the input signal PF Power factor DPF Displacement power factor PHI Phase difference between the voltage and current DMM SPECIFICATIONS DC Voltage Ranges - 400.0 mV to 880 V. DC Volts Accuracy - ±(0.5% of reading + 5 counts). True RMS AC Voltage Ranges - 400.0 mV to 640 V. Maximum Float Voltage - 600 VRMS CAT II, each channel (probe dependent). Resolution - 4000 count, 3-3/4 digits. AC Volts Accuracy - ±(2% of reading + 5 counts). Resistance Ranges - 400.0 ? to 40.00 M?. Resistance Accuracy - ±(0.5% of reading + 2 counts); 40 M?: ±(2% of reading + 5 counts). Diode Test Range - 0 to 2 V. Continuity Check - Audible tone when < 50 ?. Modes - Min, Max, Delta, Max-Min, Avg, Hold. Nonvolatile Storage - 10 DMM screenshots. External Trigger Input - 5 MHz TTL compatible. Vertical Zoom Capability - 2X, 5X, 10X. dB Scale - Selectable, referenced from 1 mV to 10 V. dBm Scale - Selectable, referenced from 50 ? to 600 ?. GENERAL SPECIFICATIONS Setups - 10 front-panel setups. Safety - UL3111-1, CSA1010.1, EN61010-1, IEC61010.1. EMC - Meets Directive 89/336/EEC. Power - NiCd rechargeable battery pack with AC adapter (both included). Battery Life (when new) - Approx. 2 hours from full charge. Display - Backlit LCD. Display Resolution - 320 x 240. Physical Characteristics Dimensions mm Weight kg Width 177 Height 217 Depth 51 Net 1.45

Condition	Seller refurbished : An item that has been restored to working order by the eBay seller or a third party not approved by the manufacturer. This means the item has been inspected, cleaned, and repaired to full working order and is in excellent condition. This item may or may not be in original packaging. See the seller’s listing for full details.
Seller Notes	“Very nice condition, screen & case shows a little sign of wear, small scuffs, few scratches, please study pictures. Overall very good condition. Powers up when plugged in, battery does not hold charge (easily replaceable, or just use plugged in) All features work great. Best feature is voltage graphing, tracking. Can also track other meter function readings.”
