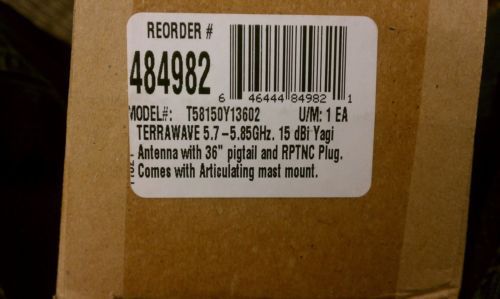

Terrawave 5.7-5.85 Ghz 15 Dbi Yagi Antenna W 36" Pigtail & Rptnc Plug Connector

US $10.00

  • Lithonia, Georgia, United States
  • Jan 29th
Open on mobile:
QR code
New.. No bracket..Never used.. TerraWave Solutions® 5.7-5.85 GHz 15 dBi Yagi Antenna with RPTNC Plug Connector TerraWave’s 15 dBi directional yagi antenna is a rugged, easy to install, high performance directional antenna for deploying point-to-point wireless bridges. It can also be used as an access point antenna in long narrow coverage environments like a hallway. Includes an RPTNC plug with a 36” pigtail and a mast mount.  Specifications: Model T58150Y13602  Frequency Range 5725 - 5850 MHz  Bandwidth 125 MHz  Gain 15 dBi  Vertical Beamwidth 24°  Horizontal Beamwidth 25°  VSWR -/=1.5  Nominal Impedance 50 Ohms  Polarization Vertical or Horizontal  Max Power 50 Watts  Connector RPTNC Plug with Pigtail  Dimension 12.6” x 2” x 2”  Weight 1.4 lbs  Rated Wind Velocity 135 mph  Operating Temperature Range -22°F to +158°F  Front-to-back Ratio +/=20 dB E-Plane Pattern H-Plane Pattern Mounting Bracket Information for T58150Y13602 and T58175Y13602 Installation Instructions: • The antenna is in vertical polarization mode by default. • For horizontal polarization installation, unscrew the antenna from the L-bracket and rotate 90 degrees. Screw the antenna back to the L-bracket. Be certain that the polarization arrow is parallel to ground when installed.  • Mount the antenna to the mast with U-bolt and hex nuts. • Adjust the antenna angle until the signal reception is optimized. • Fasten all screws and seal the connector with weatherproof tape. Note: Mast mount diameter:
