Tested Lecroy Lw420 400ms/s Arbitrary Waveform Generator Signal Function

US $690.00

State College, Pennsylvania, United States
Jan 29th

Open on mobile:
QR code

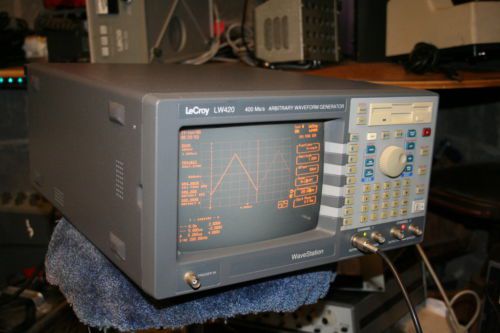

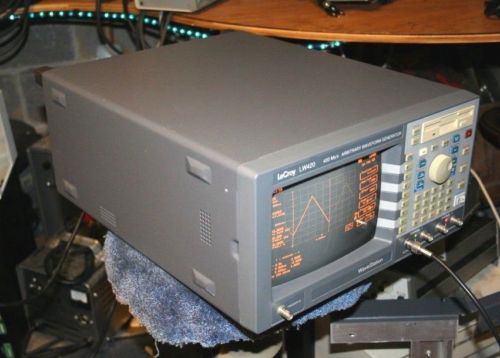

Pretty. Tested. LECROY MODEL LW420 400Ms/s ARBITRARY WAVEFORM GENERATOR with rack mount brackets (not shown) Requires calibration. Most self test results "passed" with the exception of "attenuators" see below for details. Sine wave from 1Hz to 100MHz. Large bright 9" display. Free shipping in the usa connected states with buy it now (remind me in your payment please) See photo of unit in actual operation. Oscilloscope not included that for demostration purposes. It's cool. Lots of mojo. See the failed self test details below. I'm backing it up. Exercise the buttons some it's been sitting. NO RESERVE (See my other related goodies for sale now on ebay click on 'see sellers other auctions' above.) Functional Condition: The major functions are working. It's fun to use. Has a nice powerful output signal. Adjustable Freq adjust works, shape and bandwidth works. It's sophisticated. Keypad works Display is working. It's bright and clear. Tested: Has good output. The major functions are working. Requires calibration. Most self test calibration results come up 'passed' with the exception of 'attenuators'. See the photo of that failed display for details. It's working though. I don't know what 'attenuators' affect. It's sophisticated so I couldn't test everything but I'm confident in it and I'm backing it up. See photos of the unit operating. Guaranty: Take two weeks to play it. Report problems or concerns in two weeks. Refunds partial or whole won't include the shipping cost. Cosmetic Condition: It's a nice one. No dents. Some nicks in the edges. Nothing broken. On a scale of poor/fair/good/excellent it's in the good range overall. Some scratches. Background info from LeCroy: The LeCroy LW420 Arbitrary Waveform Generator is an ideal source of pulse width modulated (PWM) signals commonly used in power, industrial control, and automotive electronics systems. The 1 Megabyte memory supports long test waveforms where the duty cycle of a pulsed waveform can be varied over a wide range without loss of signal continuity. LW420 Waveforms•Sine: 1 Hz - 100 MHz •Square: 1 Hz - 50 MHz •Triangle: 1 Hz - 25 MHz •Ramp: 1 Hz - 25 MHz •Pulse: (period) 20 ns - maximum memory •DC MAXIMUM FREQUENCY 100 MHz Max MINIMUM FREQUENCY - 1 Hz Min NUMBER OF OUTPUTS Single or Dual Output SYNTHESIZED / NON-SYNTHESIZED - Synthesized Shipping and Packing: The buyer pays the actual shipping cost plus $15 for packing materials. Its heavy and delicate and special packing foam and a wood box bottom is required. Send me an email if you have any questions. pdruby at yahoo is my email Regards, Paul Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“It's a nice one. It's fun to use. Versatile.”
