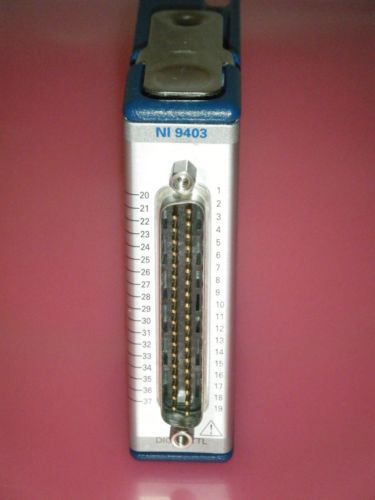

*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 0

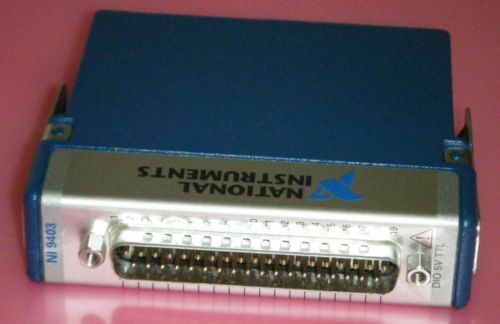

*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 1

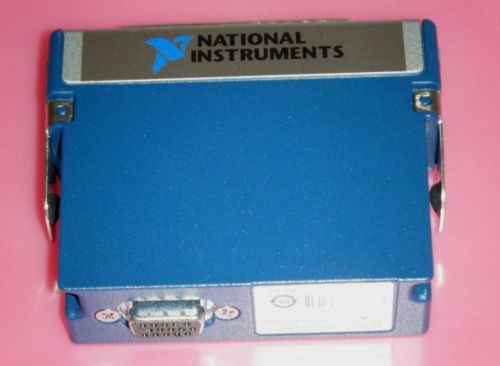

*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 2

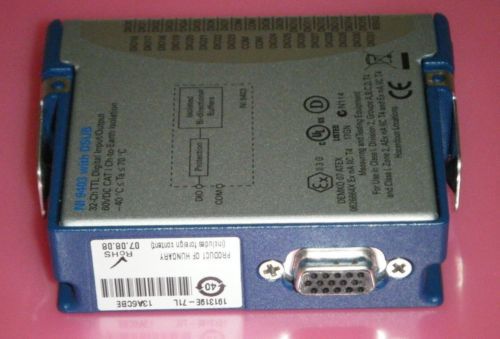

*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 3
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 4
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 0
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 1
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 2
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 3
*Tested* National Instruments NI 9403 32-Ch Digital IO Module cDAQ/cRIO, US $1000 – Picture 4

*tested* National Instruments Ni 9403 32-ch Digital Io Module Cdaq/crio

US $1000

  • Boise, Idaho, United States
  • Jan 29th
Open on mobile:
QR code
This listing is for one (multiple available) fully tested and guaranteed National Instruments NI 9403 32-Channel digital IO module for cDAQ/cRIO systems. Modules also passes all self-tests. Assy # 191319E-71, representative module from those available is shown. From NI- The NI 9403 is a 32-channel, 7 ?s bidirectional digital I/O module for any NI CompactDAQ or CompactRIO chassis. You can configure the direction of each digital line on the NI 9403 for input or output. Each channel is compatible with 5 V/TTL signals and features 1,000 Vrms transient isolation between the I/O channels and the backplane. The NI 9403 also features ±30 V overvoltage protection and can source up to 2 mA output current per channel. In an NI CompactDAQ chassis, you can use the NI 9403 only as a static (software-timed) digital I/O module. Starting in NI-DAQmx 9.3, you can use the NI 9403 in buffered tasks for a single direction (either input or output). Due to the serial transfer of data, you cannot use these modules to route timing or triggering signals. With the NI 9403 in a CompactRIO chassis, you can use LabVIEW FPGA to program the NI 9403 for implementing custom counter/timers, pulse generation, and much more. The NI 9403 module will be well packaged and sent in box by USPS Priority Mail, insured. The tracking # will be entered into ebay and paypal systems after shipment.
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “Used and fully tested National Instruments NI 9403 module, tested as inputs/outputs. Modules are in very good condition, with minor cosmetic wear, including minor scratches, wear on case that will not affect function or performance. The module shown in photos is one of those available and is representative of all, with equivalent condition and same part #, all fully tested. No other items are included.”
