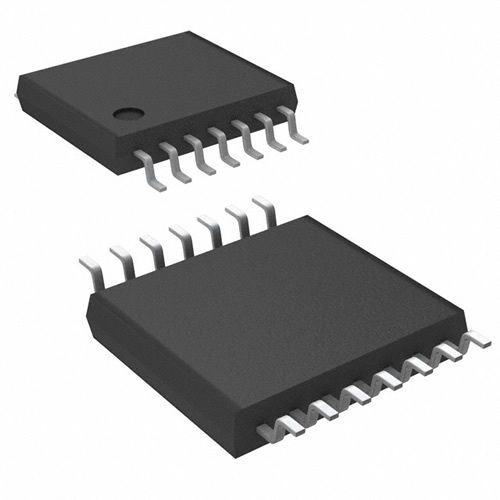

Texas Instruments THS7374IPW SSOP14 Ship from US, US $4.40 – Picture 0

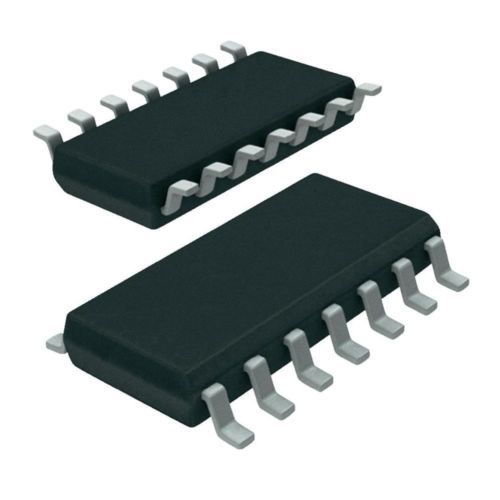

Texas Instruments THS7374IPW SSOP14 Ship from US, US $4.40 – Picture 1

Texas Instruments THS7374IPW SSOP14 Ship from US, US $4.40 – Picture 2

Texas Instruments Ths7374ipw ssop14 Ship From Us

US $4.40

Tucson, Arizona, United States
Jan 29th

Open on mobile:
QR code

Our mission is to give you the e–components you need without having to deal with long delivery times from China. All of our components are already in the US. You can order 1pcs of any part, there is no minimum for ordering. just place an order and you will have your parts in no time! All components come in brand new condition with a 2 months limited warranty, you have plenty of time replace them if needed. Description Fabricated using the revolutionary complementary Silicon-Germanium (SiGe) BiCom3X process, the THS7374 is a low-power, single-supply 3 V to 5 V four-channel integrated video buffer. It incorporates a sixth-order Butterworth filter (able to be bypassed) which is useful as a digital-to-analog converter (DAC) reconstruction filter or an analog-to-digital converter (ADC) anti-aliasing filter. The 9.5-MHz filter is a perfect choice for SDTV video that includes composite (CVBS), s-video, Y'U'V', G'B'R' (R'G'B'), and Y'P'BP'R 480i/576i. As part of the THS7374 flexibility, the input can be configured for either ac or dc-coupled inputs. The 300-mV output level shift allows for a full sync dynamic range at the output with 0-V input. The ac-coupled modes include a transparent sync-tip clamp option for CVBS, Y', and G'B'R' signals with sync. AC-coupled biasing for C'/P'B/P'R channels can easily be achieved by adding an external resistor. The THS7374 is the perfect choice for all video buffer applications. Its rail-to-rail output stage with 6-dB gain allows for both ac and dc line driving. The ability to drive two lines per channel, or 75-? loads, allows for maximum flexibility as a video line driver. The 9.6-mA total quiescent current at 3.3 V and 0.1-µA disabled current makes it an excellent choice for portable or other power-sensitive applications. The THS7374 is available in a TSSOP-14 package that is lead-free and green (RoHS) compliant. Features 4-SDTV Video Amplifiers for CVBS, S-Video, Y'P'BP'R 480i/576i, Y'U'V', or G'B'R' (R'G'B') Integrated Low-Pass Filters:6th-Order 9.5-MHz (–3 dB) Butterworth –1 dB Passband Bandwidth at 8.2-MHz 54-dB Attenuation at 27-MHz 150-MHz (–3 dB) Filter Bypass Mode Versatile Input BiasingDC-Coupled with 300-mV Output Shift AC-Coupled with Sync-Tip Clamp AC-Coupled with Biasing Allowed Built-in 6-dB Gain (2 V/V) +3-V to +5-V Single-Supply Operation Rail-to-Rail Output:Output Swings Within 100 mV from the Rails to Allow AC or DC Output Coupling Supports Driving 2 Lines per Channel Low 9.6-mA at 3.3-V Total Quiescent Current 0.1-µA Disabled Supply Current Function Low Differential Gain/Phase of 0.15%/0.3° Lead-Free and Green TSSOP-14 Package

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Texas Instruments
MPN	THS7374IPW
Model	THS7374IPW SSOP14
