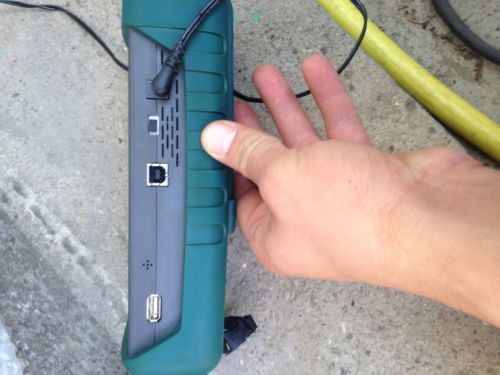

Trend Unipro Gbe

US $495.00

drobeta turnu severin, mehedinti, Romania
Jun 9th

Open on mobile:
QR code

Trend Unipro GbE constitutes a easy-to-use, cost-effective, rugged, battery-operated solution for installation, qualification, acceptance, maintenance, repair and troubleshooting of Ethernet and Gigabit Ethernet networks. Some outstanding features of Trend Unipro GbE are: • Dual optical and electrical Gigabit Ethernet ports • Network equipment acceptance according with RFC 2544 • Support of VLAN and VLAN stacking (Q-in-Q) • Quality of Service (QoS) verification • Power over Ethernet (PoE) evaluation • Physical, MAC and IP BER testing • ToS, DSCP and IEEE 802.1p user priority bits • Ping and Trace Route • Crosstalk, cable length and wiring verification of UTP cables Applications Trend Unipro GbE is perfectly suited for the many test and measurement applications in Ethernet Metro and Enterprise networks: • Physical layer diagnostics of electrical and fibre connections to verify stable and reliable connection of switches, servers, end user equipment and other network elements • Isolation of potential transmission related problems like Ethernet autonegotiation, support of Jumbo frames or PoE • Troubleshooting of VLAN settings for enterprises and Ethernet service providers • Service Level Agreement (SLA) compliance verification of Ethernet services like EPL, EVPL and E-LAN Technical Specifications Test Interfaces • Dual Electrical: 10/100/1000 Mbit/s RJ-45 • Dual Optical: 100/1000 Mbit/s SFPs Operation Modes • Endpoint/Monitor • Through • Loopback reflector Traffic Generation • Constant, burst, ramp traffic profiles • Configuration of MAC frames (source and destination address, frame length, frame payload). Jumbo frames supported. • Configuration single and stacked VLAN tags ( VID, User priority as per IEEE 802.1p) • Support of IP over Ethernet. Configuration of source and destination IP addresses, Time to Live (TTL), ToS/DSCP prioritization bits, transport protocol, UDP source and destination ports • ARP and DHCP protocols to ease configuration Autonegotiation • Ability to force autonegotiation parameters, set preferred values or accept parameters from the remote end • Autonegotiation of speed (10 Mbit/s, 100 Mbit/s, 1000 Mbit/s) and duplex modes (full or half) • Remote host autonegotiation OFF indication Automatic RFC 2544 Testing • Throughput analysis per frame size • Latency analysis per frame size • Frame loss per frame size and offered load • Back-to-back frames per frame size • System recovery per frame size • User-programmable size • Preset configurations Bit Error Rate Testing • Unframed or framed patterns • At Physical, MAC and IP layers. • PRBS patterns: 211-1, 215-1, 220-1, 223-1, 231-1, normal and inverted • INCITS TR-35:2004: SCRPAT, CRPAT, CJTPAT and CSPAT • IEEE 802.3: HFPAT, MFPAT and LFPAT • All 1s, all 0s, 1100, 1010, 1000 fixed patterns • User-programmable word Ping • Single, multiple and continuous ICMP echo request transmission • Ping length, timeout, pause and TTL Trace Route • ICMP or UDP Trace Route • Maximum number of hops, timeout, time interval • Remote UDP port for UDP Trace Route Results Cable and Physical Layer Testing • Link status • Cable status, pair length, polarity, swap, skew and crosstalk • Optical power measurement Frame Statistics • Frame size classification • Bandwidth utilisation (percentage and total) • Total received and transmitted frames and bytes • Unicast, multicast and broadcast frames • VLAN-tagged frames • Pause and control frames

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Trend
Model	Unipro GbE
